Hydraulic Crimping Heads UCP-2712HE

Length : 247 mm
Weight : 3.9 kgs

■ Specifications :
Max. pressure : 700 bar / 10,000 psi
Oil required : 49 cc
Max. output : 14.01 tons / 124.6 kN

■ Crimping capacity :
Max. compression : 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn 12-ton compressors
Dies sold separately (CU16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

■ Features :
Operated by any 700 bar / 10,000 psi rated pump.
Single action cylinder with spring return.
Lock pin design holds die firmly in place.
Die sizes available : CU16 ~ CU400 mm²
Custom die sets are manufactured on request.

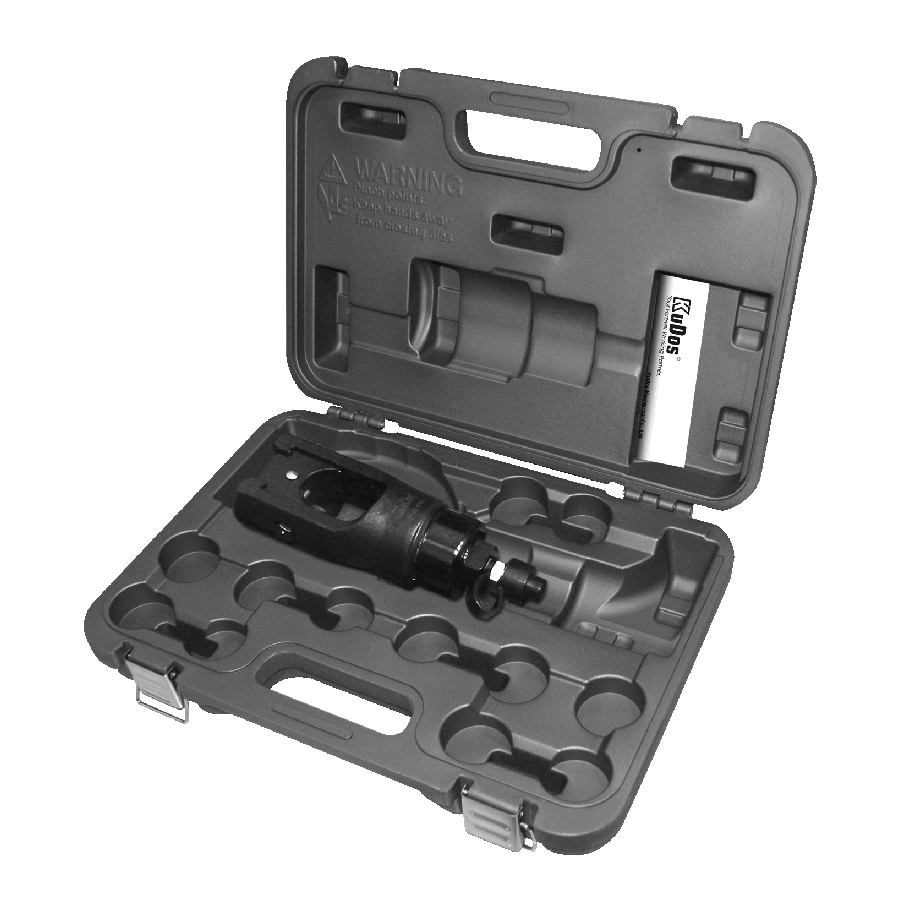

■ Accessories :
Plastic carrying case
