Hydraulic Puncher SH-2070

Height : 371 mm
Weight : 14.5 kgs

■ Specifications :
Throat depth : 70 mm
Max. pressure : 700 bar
Oil required : 116 cc
Max. output : 34.20 tons / 304.3 kN

■ Punching capacity
Max. thickness :
Steel plate : ≦15 mm
Copper plate : ≦20 mm
Aluminum plate : ≦20 mm
Max. diameter : 20.5 mm
20.5 mm diameter hole with 13 mm thick mild steel.
For angle iron, plates, beams and bus bars.

■ Features :
C-Head made by forging for greater strength.
Convenient handle for easy carrying.
Base stand for easy positioning and accurate punching.
Single action piston / cylinder arrangement reduces iron chippings.
Punch and die changeover tools included.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Efficient and safe to use.

■ Accessories :

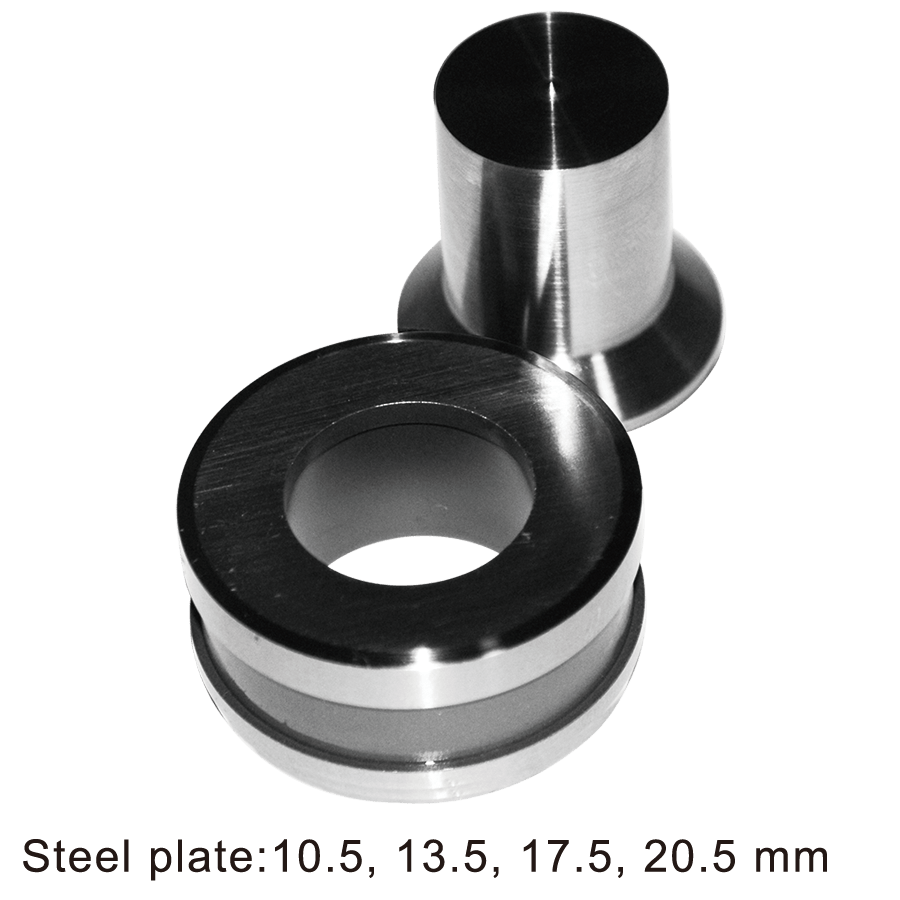

Round punching dies for mild steel (10.5, 13.5, 17.5, 20.5 mm)
Plastic carrying case

■ Other punching die option :

※Customize punching die set also available, sold seperately.
