Hydraulic Crimping Heads PH-300HE

Length : 209 mm
Weight : 2.9 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 14 cc
Max. output : 7.03 tons / 62.5 kN

■ Crimping capacity :
Max. compression : 300 mm² aluminum lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 6 ton compressors

※Dies sold separately (T16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300)

■ Features :
Light weight, compact and slim design.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

■ Accessories :

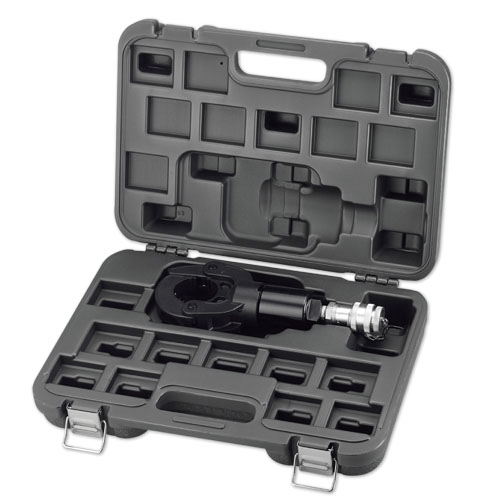

Plastic carrying case
