Cutter KV-S45
Length : 479 mm
Weight : 6.5 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Cutting capacity :
Max pressure : 700 bar
Max output : 10.73 tons / 95.5 kN
Wire rope 6x7 : 40 mm
Wire rope 6x12 : 40 mm
Wire rope 6x19 : 40 mm
Soft copper bar : 32 mm
Soft aluminum bar : 40 mm
Soft steel bar : 20 mm
Cu strands : 40 mm
Al strands : 40 mm
ACSR : 40 mm
※Cutting of piano wire is prohibited.

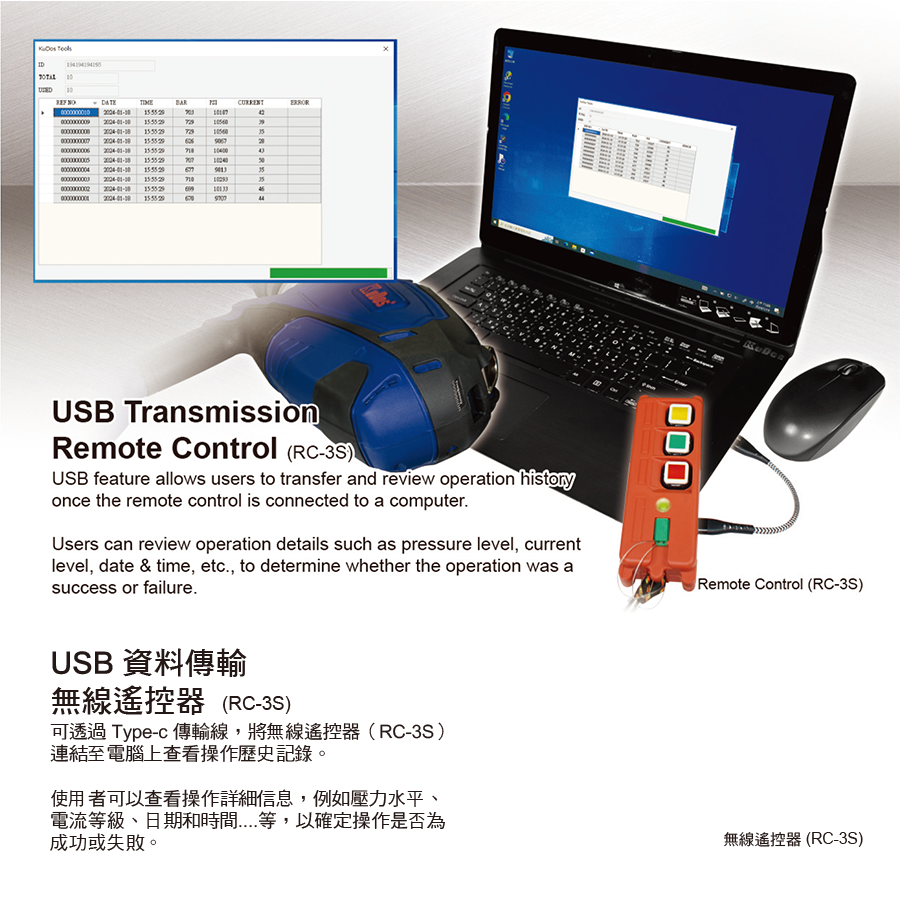

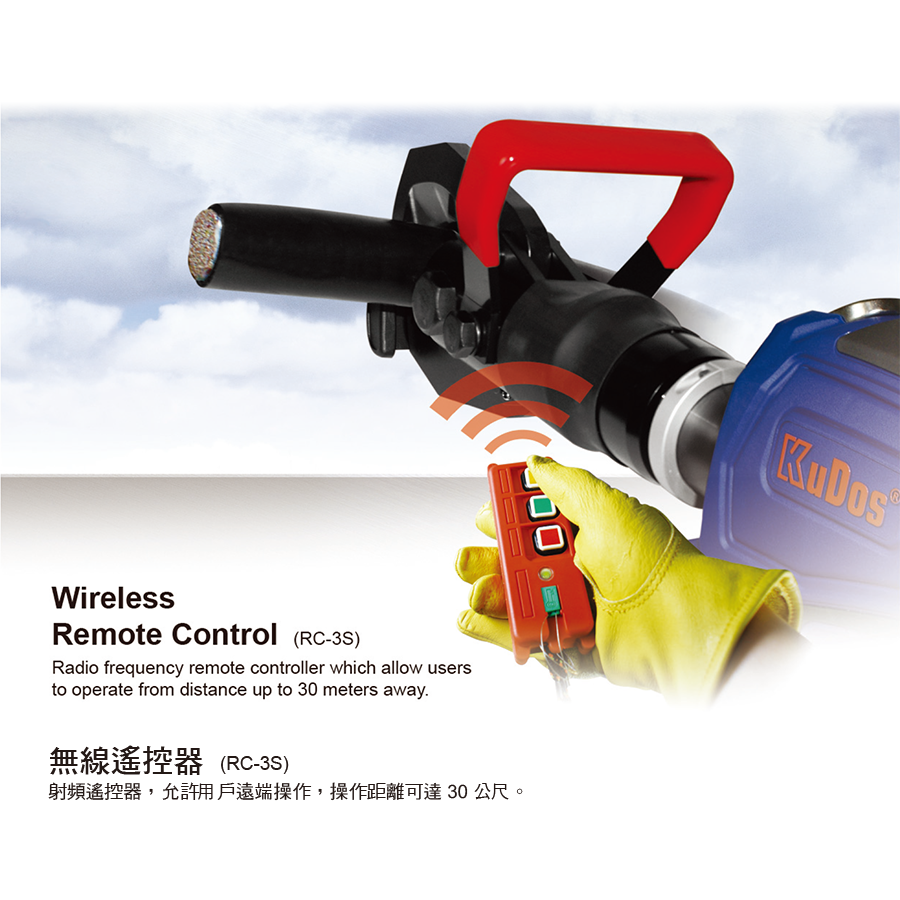

A 10-ton, battery-operated hydraulic cutting tool with a gun-type design and high-speed pumping. It features a guillotine-type cutting head and can cut cables up to 45mm in diameter, depending on the cable type and material. An optional wireless remote control is also available.
