YOUR FOREVER
WORKING PARTNER

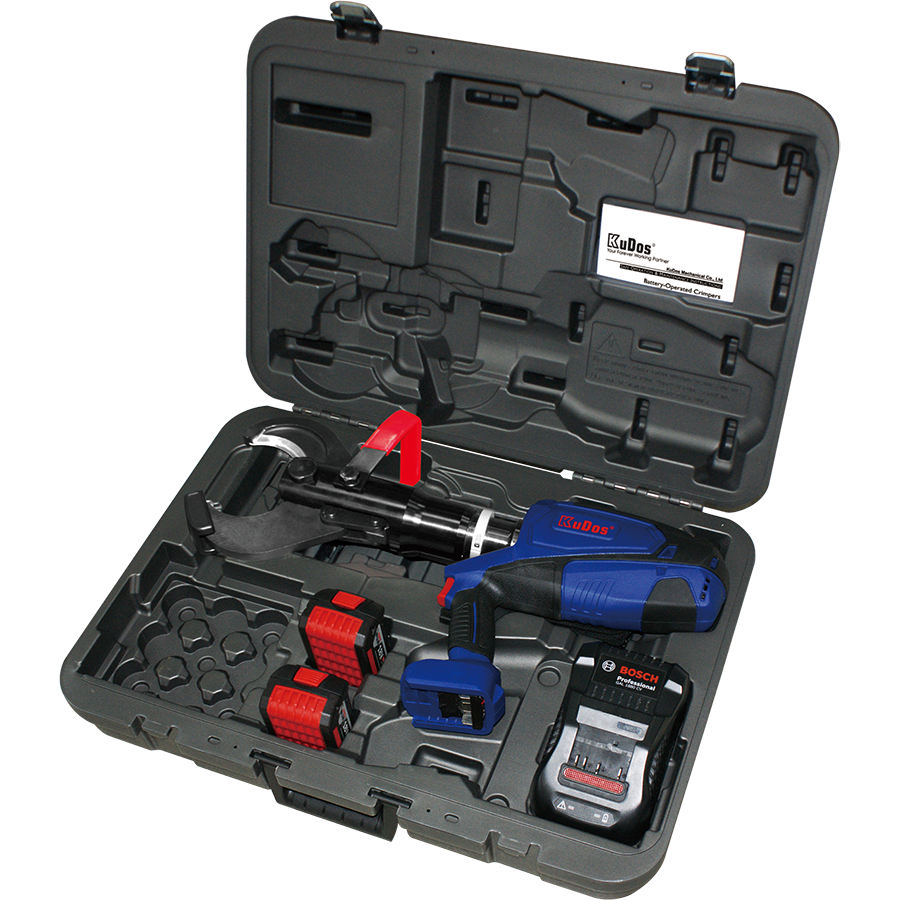

Cutter KV-85YC
Length : 551 mm
Weight : 7.4 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc
■ Cutting capacity :
Max pressure : 700 bar
Max output : 8.32 tons / 74.0 kN
Cu strands : 60 mm
Al strands : 60 mm
CCP cable : 85 mm
※Note : tensile strength(daN/mm²) ≦ 180
※Cutting of piano wire is prohibited.

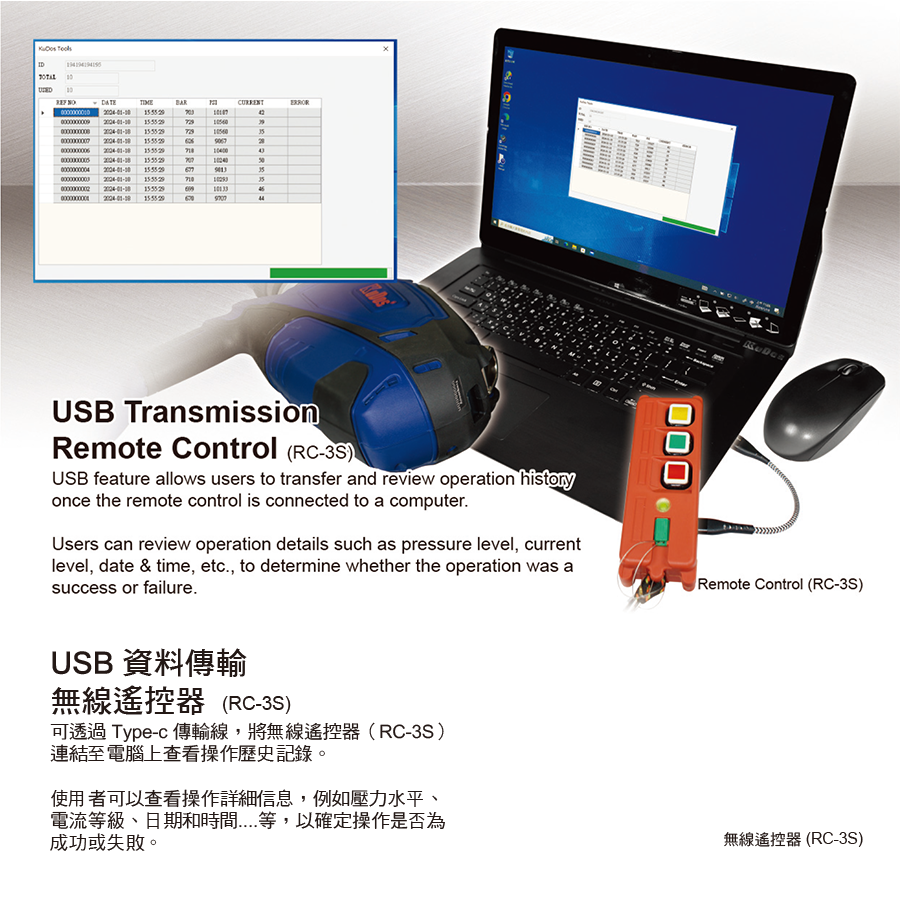

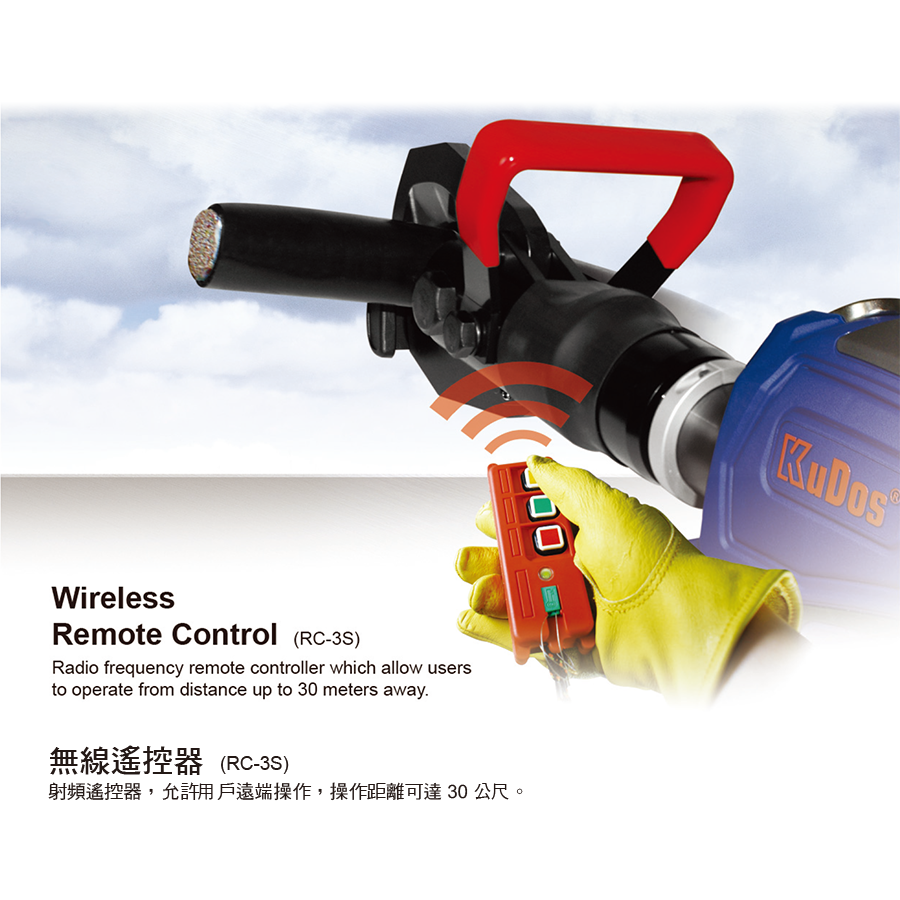

An 8-ton, battery-operated hydraulic cutting tool with a gun-type design and high-speed pumping. It features a scissor-type cutting head with an 85mm jaw opening and can cut cables up to 85mm in diameter, depending on the cable type and material. An optional wireless remote control is also available.
