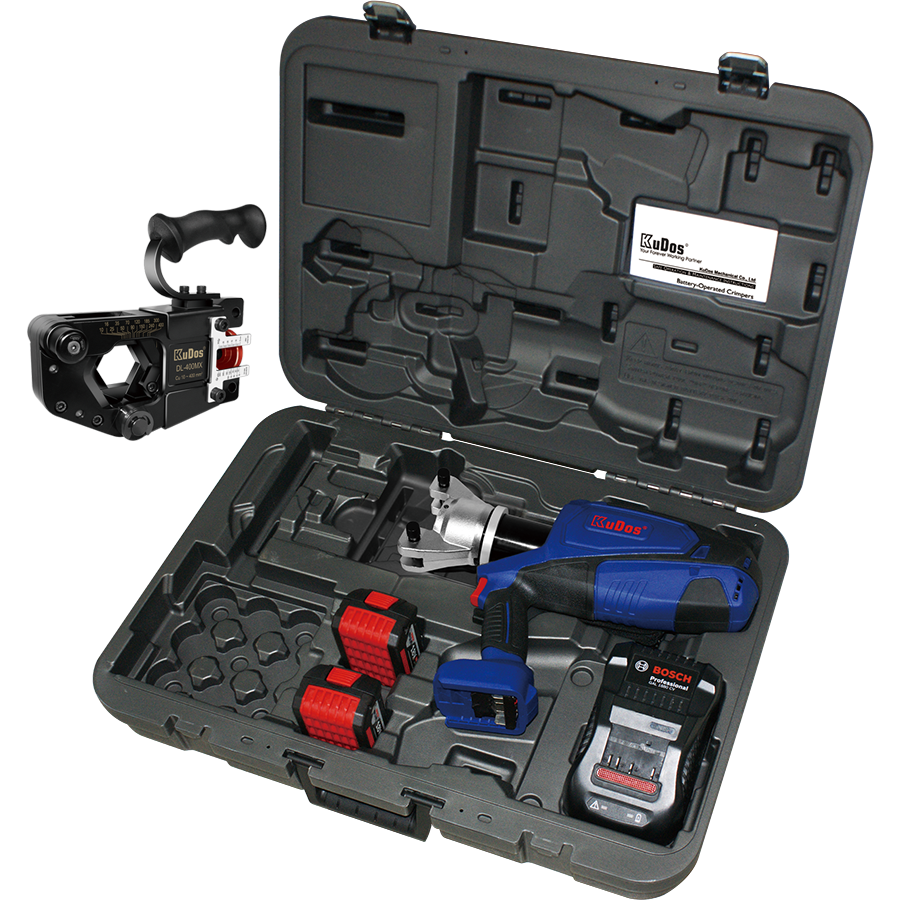

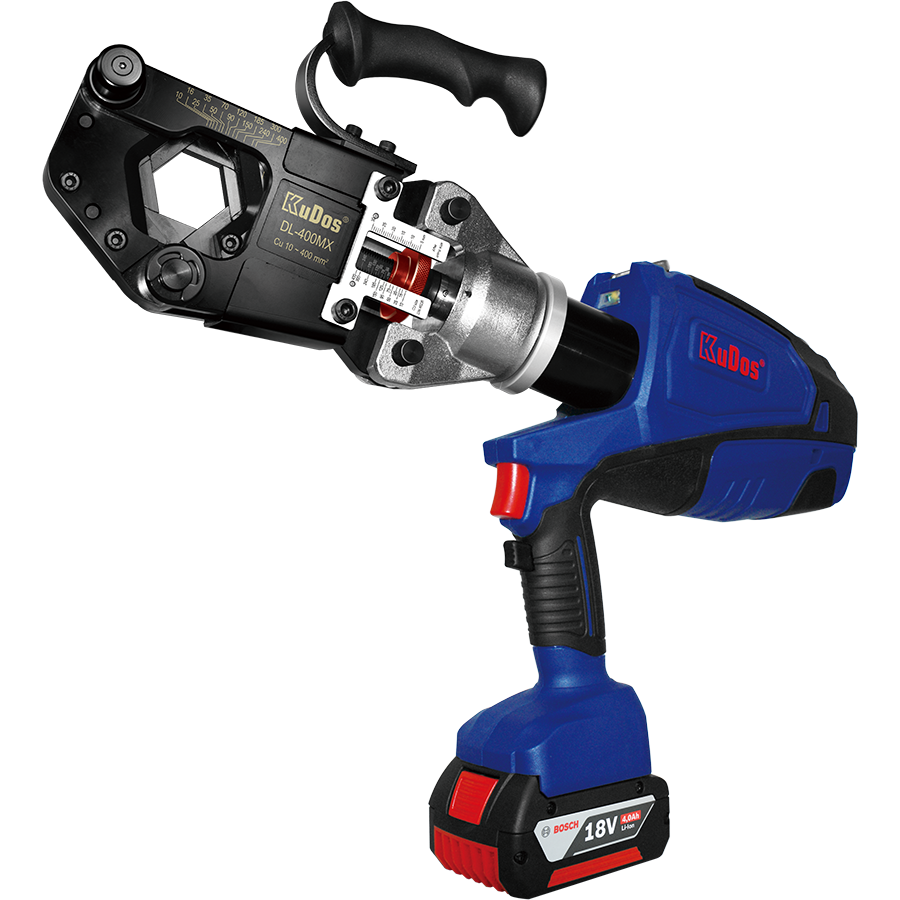

Multifunction KV-45X with DL-400MX

Length : 559 mm

Weight : 10.8 kgs (w/o battery)


■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc


■ Crimping Capacity :

Max. Pressure : 700 bar

Max. Output : 14.01 tons / 124.6 kN

Ram Stroke : 42 mm

Crimping Capacity : 10 ~ 400 mm2

Crimping Witdh : 10 mm

Suitable for terminals with the standard of DIN46235

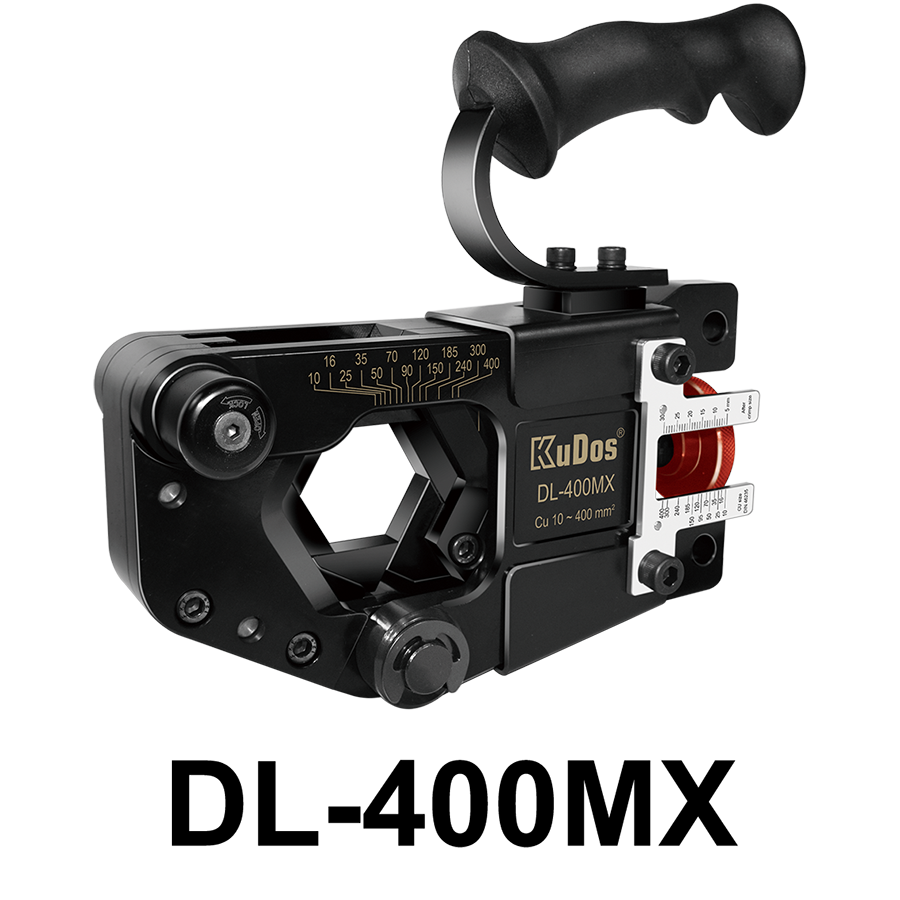

■ DL-400MX

    (Die-less Hex Crimping Head Adapter)

Main Application : 10 to 400 mm² CU

Suitable for terminals with the standard of DIN46235
