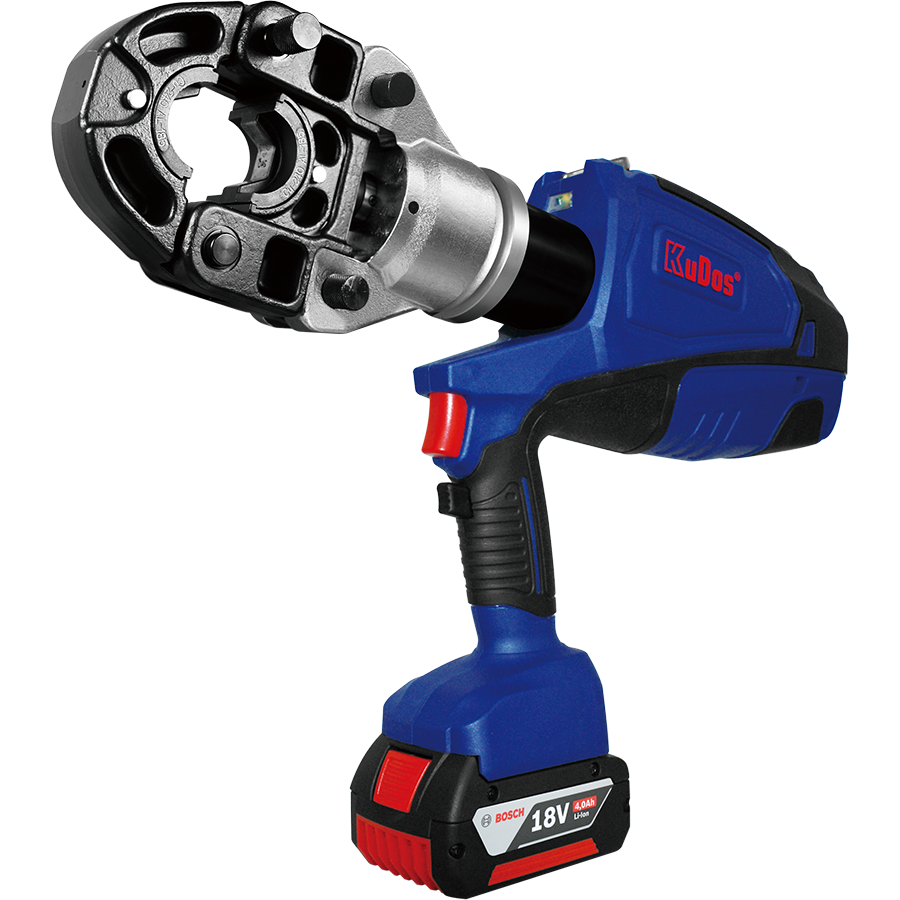

Multifunction KV-45X with CP-27

Length : 460 mm

Weight : 7.2 kgs (w/o battery)


■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc


■ Crimping Capacity :

Max. Pressure : 700 bar

Max. Output : 14.01 tons / 124.6 kN

Ram Stroke : 45 mm

Jaw Opening : 27 mm

Main Application : up to 400 mm² CU

Die Sold Separately :

(CU-16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

※Accept all 12 tons die sets

■ CP-27

    (Crimping Head Adapter)

Main Application : up to 400 mm² CU

Die Sold Separately : (CU-16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

※Accept all 12 tons die sets.

■ Hex Dies for Copper Lugs

Accepts all dies used by Alcoa, Burndy, T&B, Klauke, Cembre and Blackburn 12 ton U-type and hex-type dies. Suitable for terminals with the standard of DIN46235
