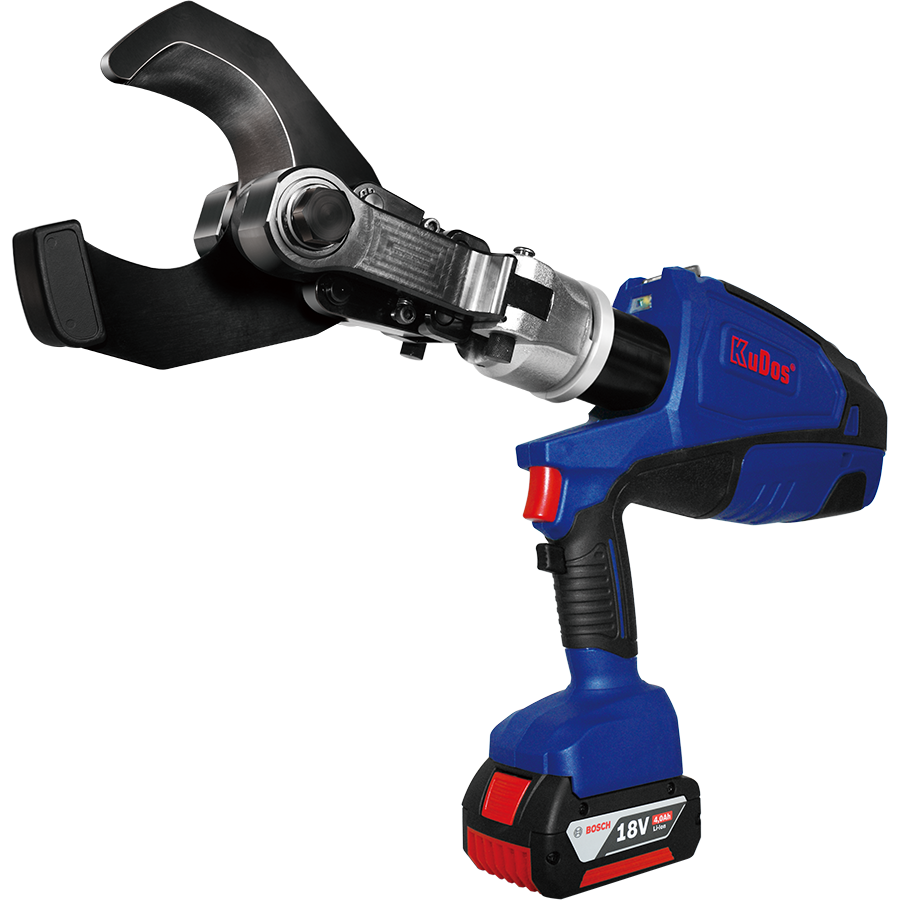

Multifunction KV-45X with 65YC

Length : 581 mm

Weight : 9.1 kgs (w/o battery)


■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc


■ Cutting Capacity :

Max. Pressure : 700 bar

Max. Output : 14.01 tons / 124.6 kN

Ram Stroke : 45 mm

Cu Strands : 60 mm

Al Strands : 60 mm

CCP Cable : 65 mm

Underground Cable : 65 mm

(Except Armoured Cable)

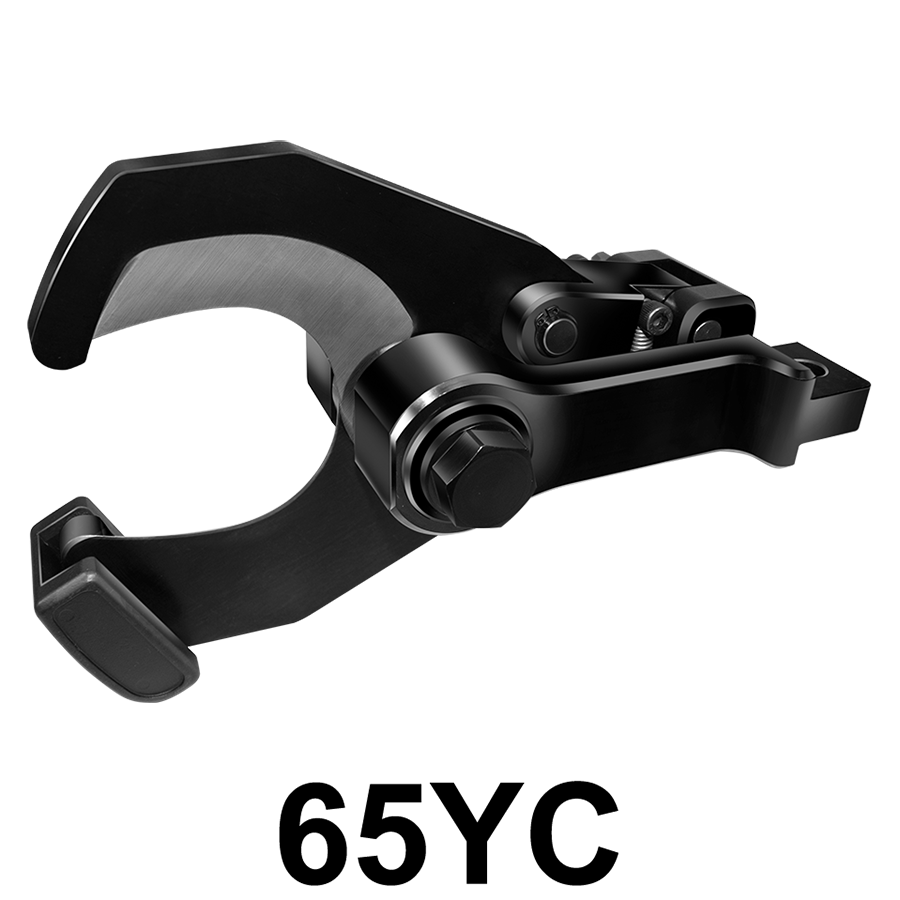

■ 65YC

    (Cable Cutter Head Adapter)

Cutting Capacity :

Cu Strands : 60 mm

Al Strands : 60 mm

CCP Cable : 65 mm

Underground Cable : 65 mm

(Except Armoured Cable)

※Cutting of piano wire is prohibited.
