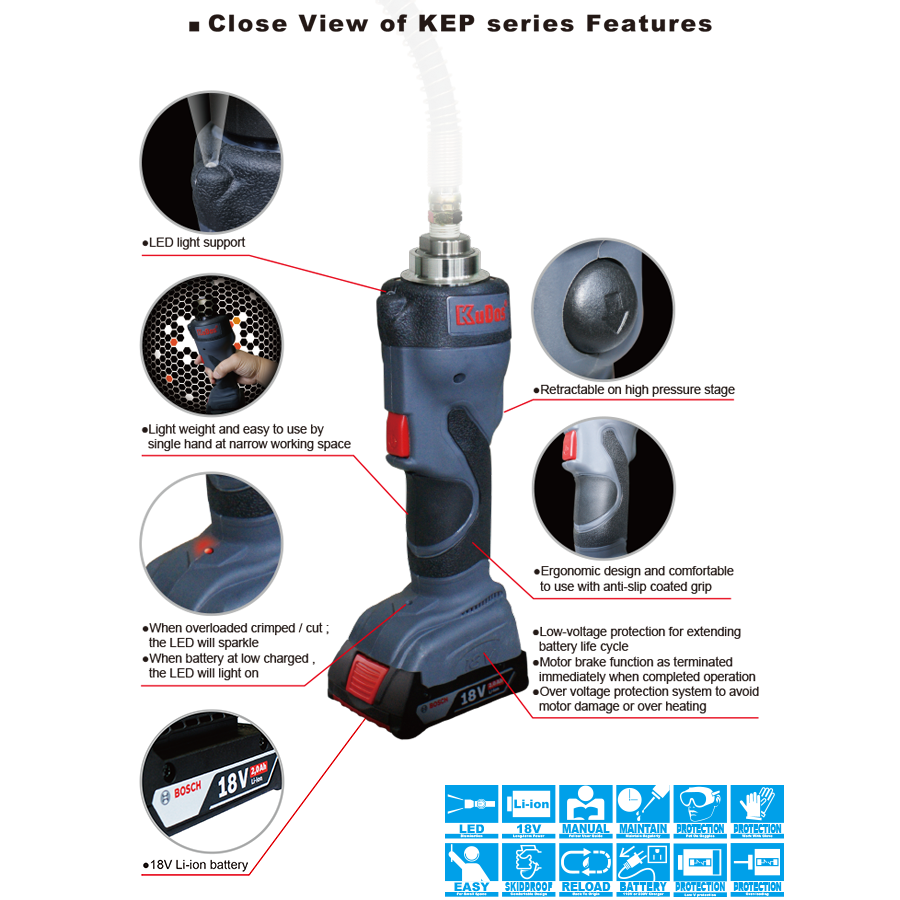

Crimper KEP-5

Length : 430 mm

Weight : 3.6 kgs (w/o battery)

■ Specifications :

Drive unit : 18V DC motor

Charger (GS/CE) :

Input voltage : 110V single phase AC

Input voltage : 230V single phase AC

Input frequency : 50~60Hz

Max pressure : 700 bar

Reservoir capacity : 48 cc

■ Punch driver : PDV-10

Ram stroke : 25 mm

Oil required : 47 cc

Max. output : 14.01 tons / 125 kN

■ Punching capacity :

Max. thickness

Stainless steel : 1.6 mm

Mild steel : 3.2 mm

4 inch diameter hole on 3.2 mm thickness mild steel

Single action cylinder with spring release

■ Accessories :

‧ Draw stud (3/4”, 3/8”)

‧ Spacer (S, M, L)

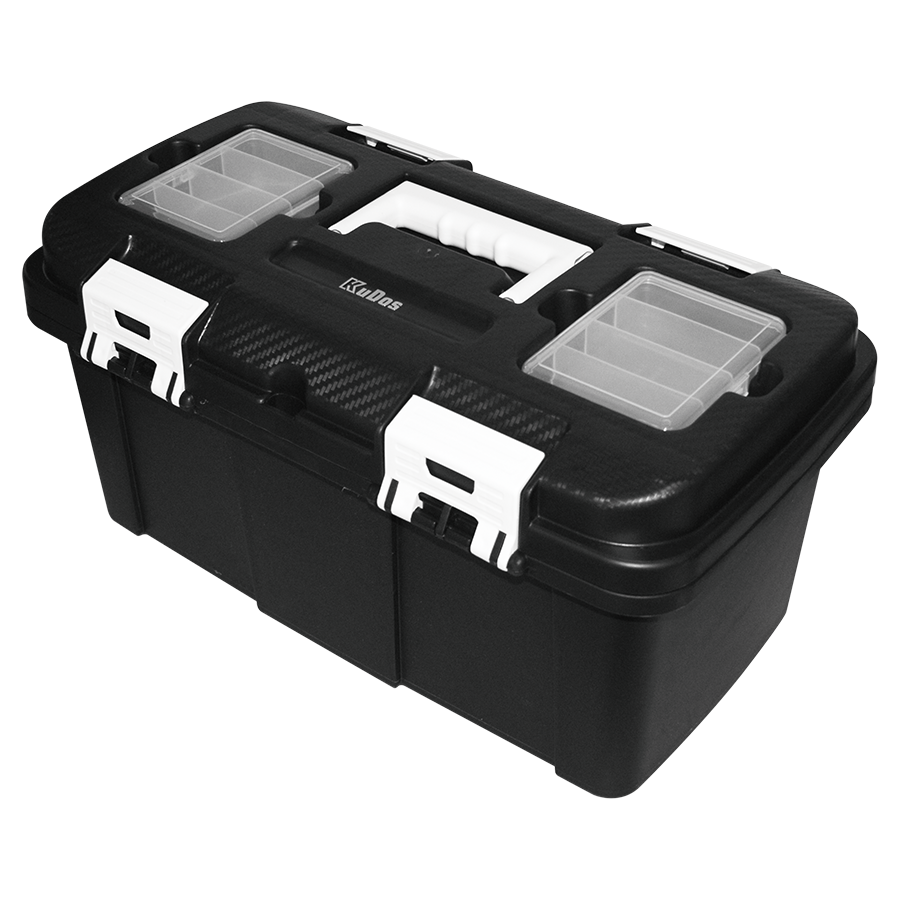

‧ Plastic case

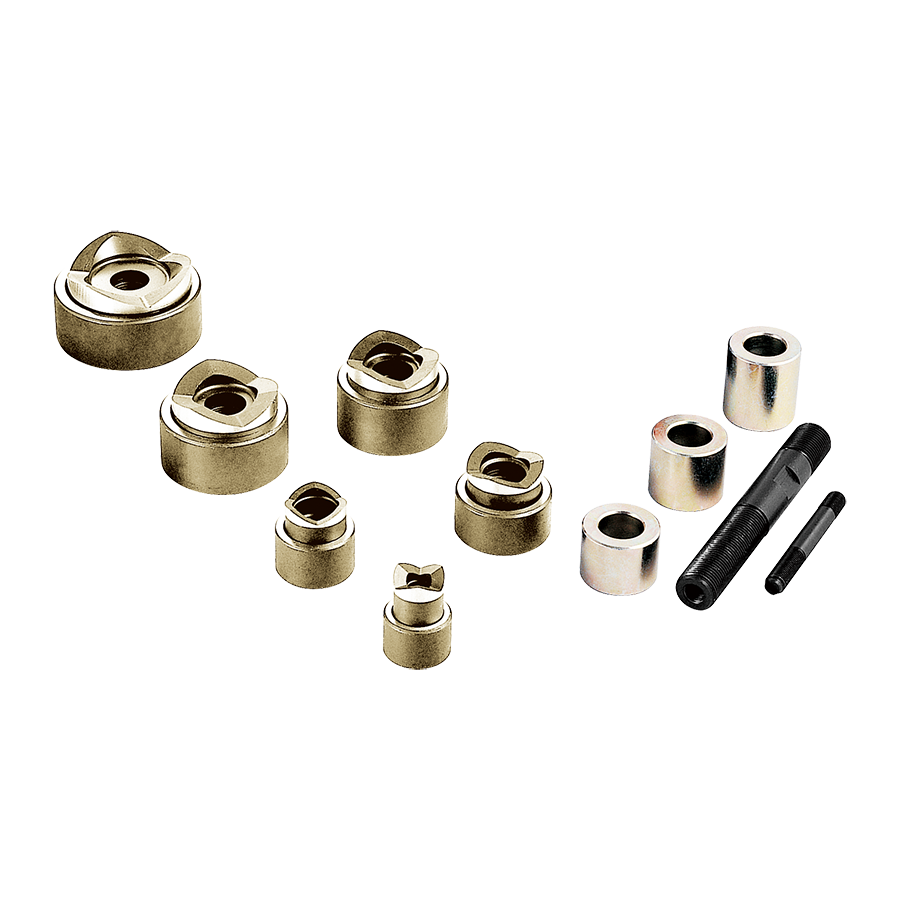

■ Optional punching dies :

‧ 6 Imperial punch die sets

     1/2”, 3/4”, 1”, 1-1/2”, 2”

‧ 6 Metric punch die sets

     16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm
