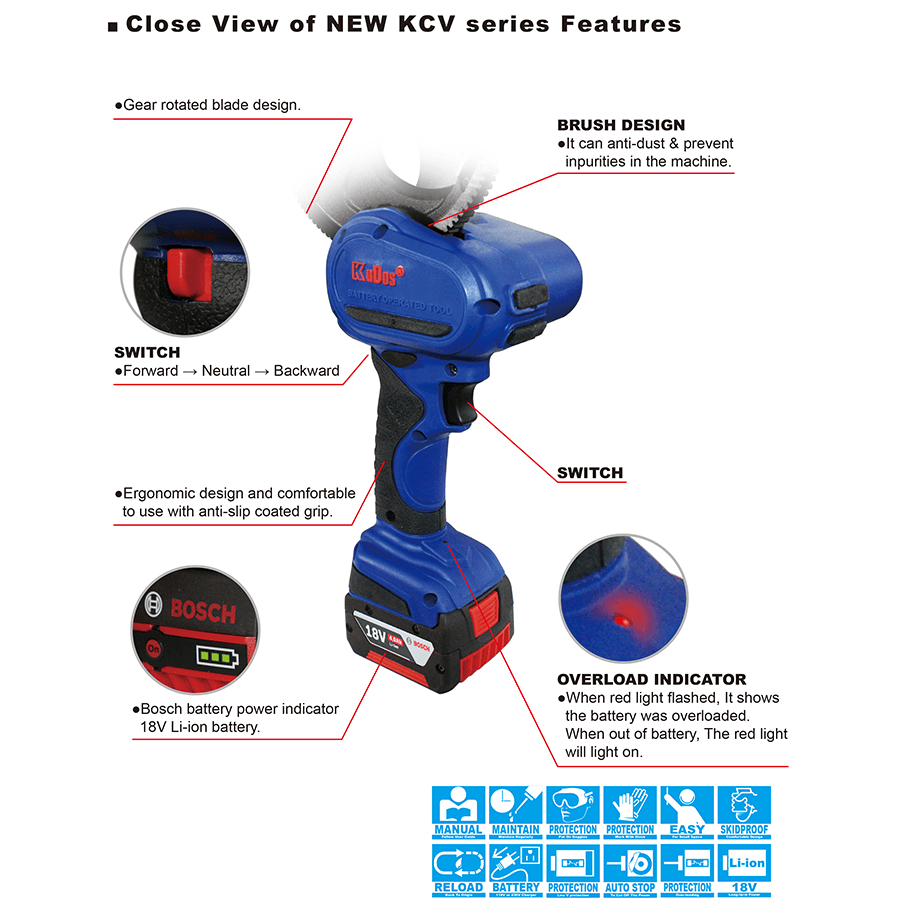

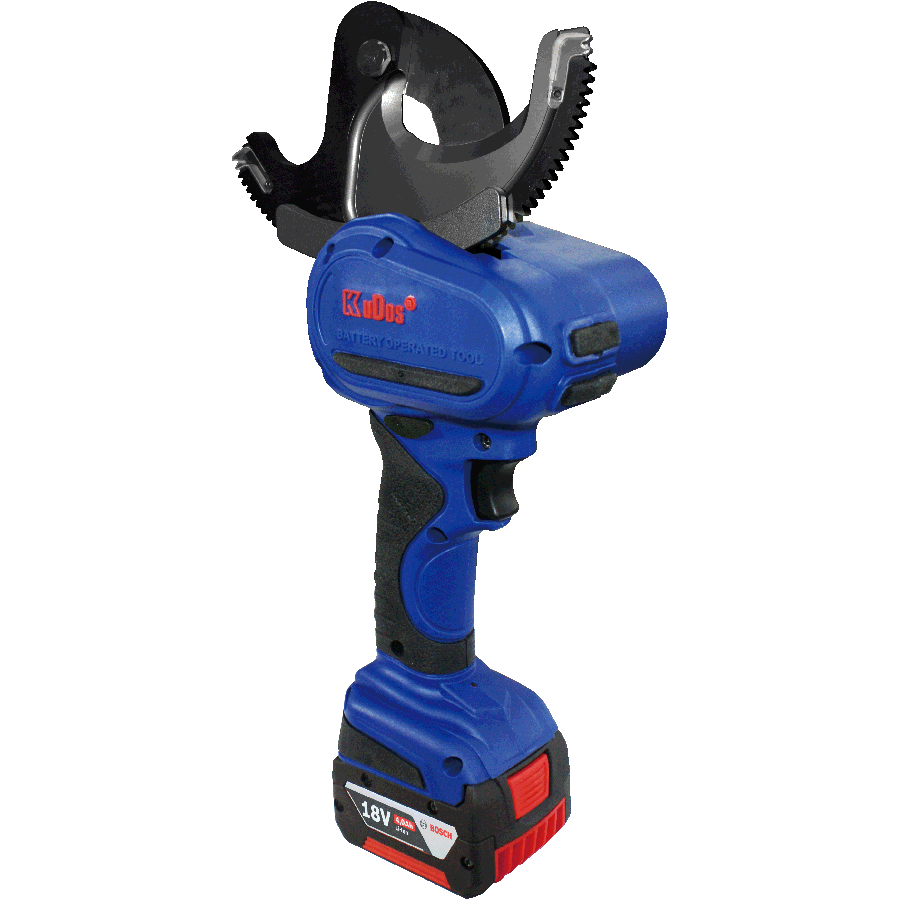

Gear Driven Cable Cutters KCV-54
Model： kcv-54
Height : 338 mm
Weight : 3.0 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (BOCSH) :
Input voltage : KCV-54-120
110V single phase AC
Input voltage : KVC-54-230
230V single phase AC
Input frequency : 50~60 Hz
Input current : 21.75 VA
■ Cutting Capacity :
Max cable diameter :
Nonferrous 54 mm & steel supported
400-pair telecom cable

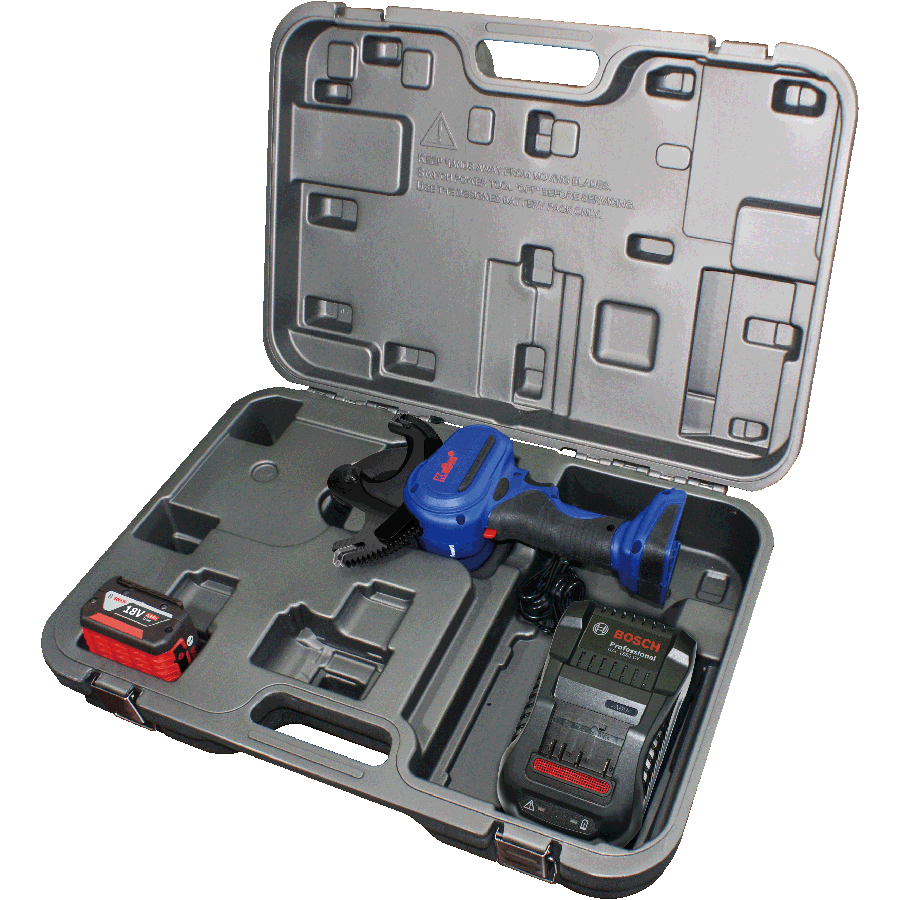

■ Accessories :
KuDos plastic carrying case
18V Battery, 110V or 230V Charger
※For reference only
| Model no. | Specification |
| Polyethylene cable | 600V-CV325 mm²; (31 mm OD) |
| Multi-core vinyl insulation cable | VVR150 mm²; (47 mm OD) 3 core |
| SB-ACSR | ACSR120 mm²; (18.6 mm OD) ACSR shall under steel of 2.0 mm |
| Hard aluminum cable | HAL-OC400 mm²; (31.9 mm OD) |
| Hard copper cable | OE-OC150 mm²; (21 mm OD) |
| SS cable | 0.4 mm 400 CCP-F-SS(CR) cable |
