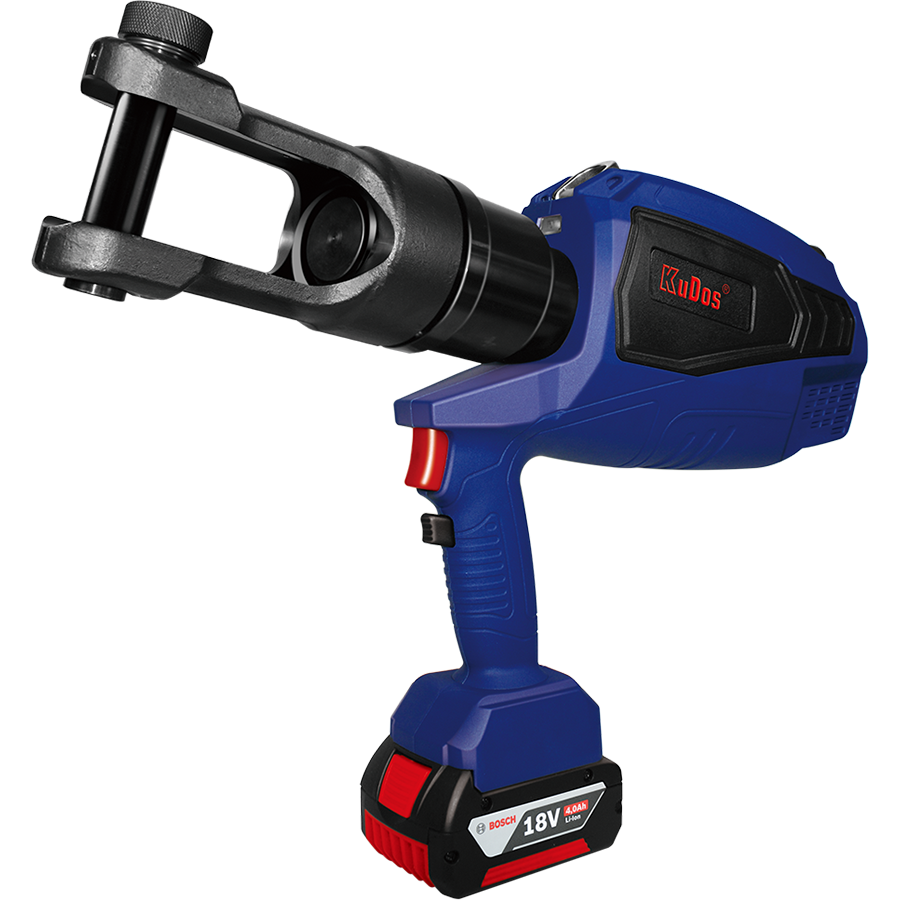

Crimper KA-630

Length : 495 mm
Weight : 9.0 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75VA
Reservoir capacity : 175 cc

■ Crimp capacity :
U-Type head
Max. pressure : 700 bar
Max. output : 24.9 tons / 221 kN
Max. crimping capacity : 630 mm²
※Dies sold separately

■ ADP-630HE :
This adapter is designed for hydraulic compression head to interchange with die sets from other 12-ton tools ( up to 400 mm² )
