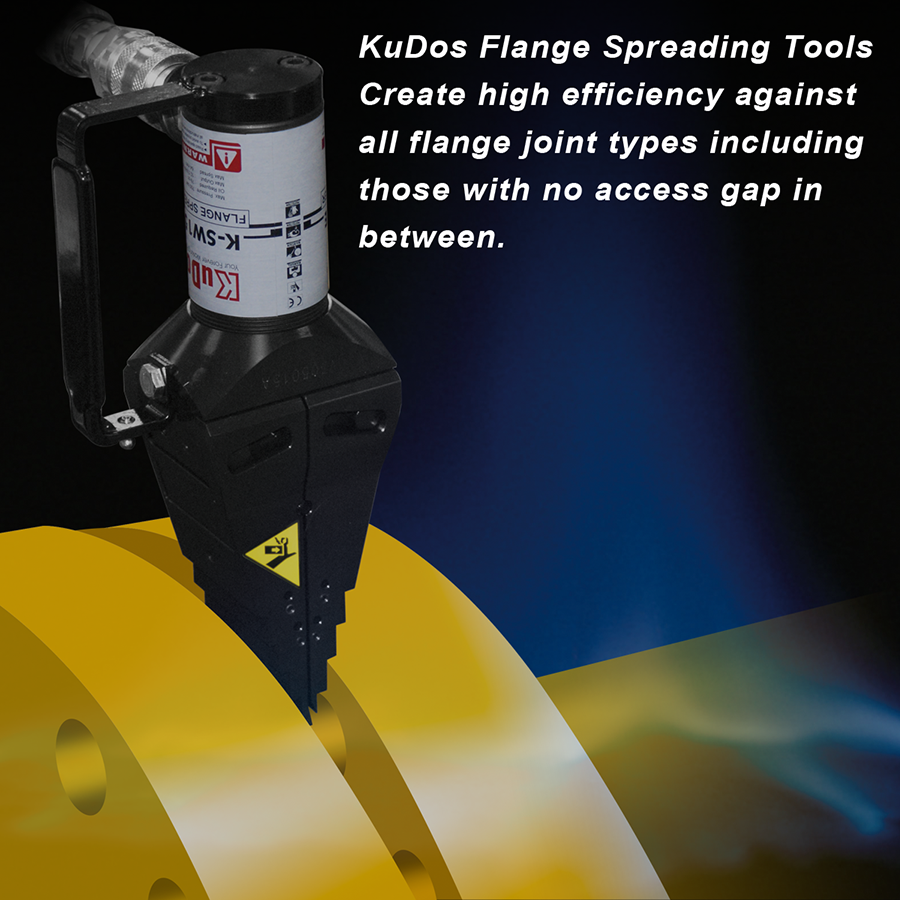

Flange Spreader K-SW15TE

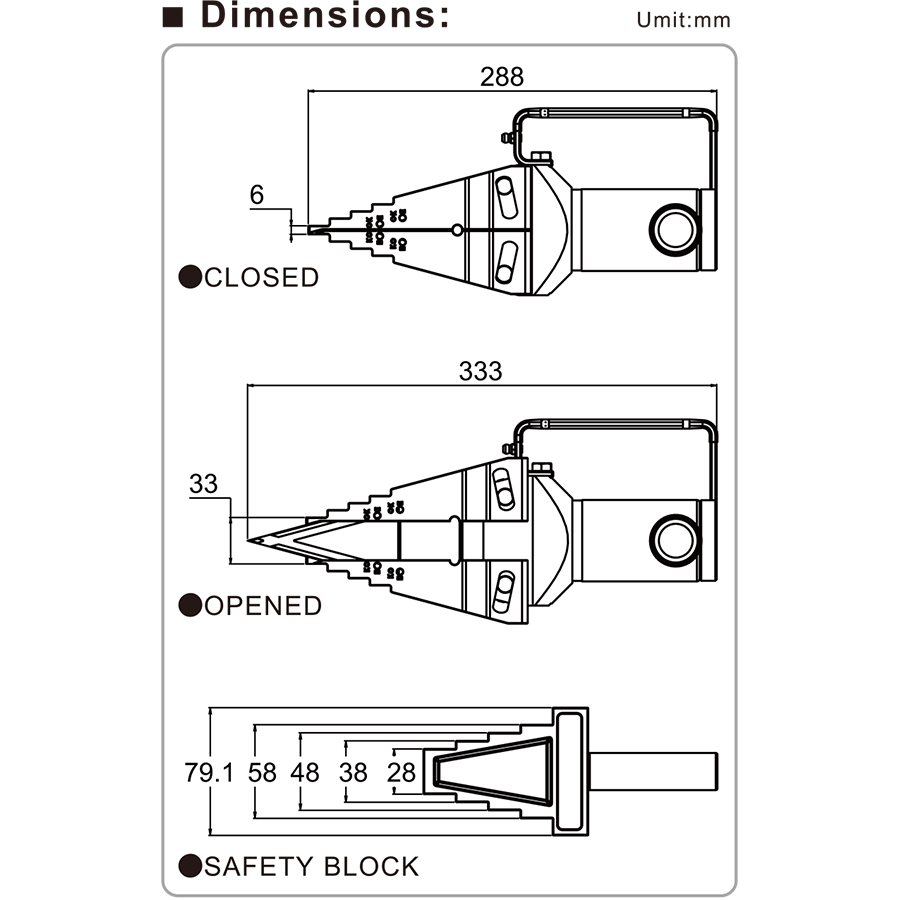

Height : 288 mm

Weight : 7.5 kgs

■ Specifications :

Max. pressure : 700 bar

Oil required : 79 cc

Max. output : 15.60 tons / 138.9 kN

■ Spreader capacity :

Min. spread : 33 mm

Max. spread : 81 mm

■ Features :

Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.

Unique interlocking wedge design: no first step bending and risk of slipping out of joint.

Requires very small access gap of only 6 mm (.24 in).

Few moving parts means durability and low maintenance.

Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

■ Accessories :

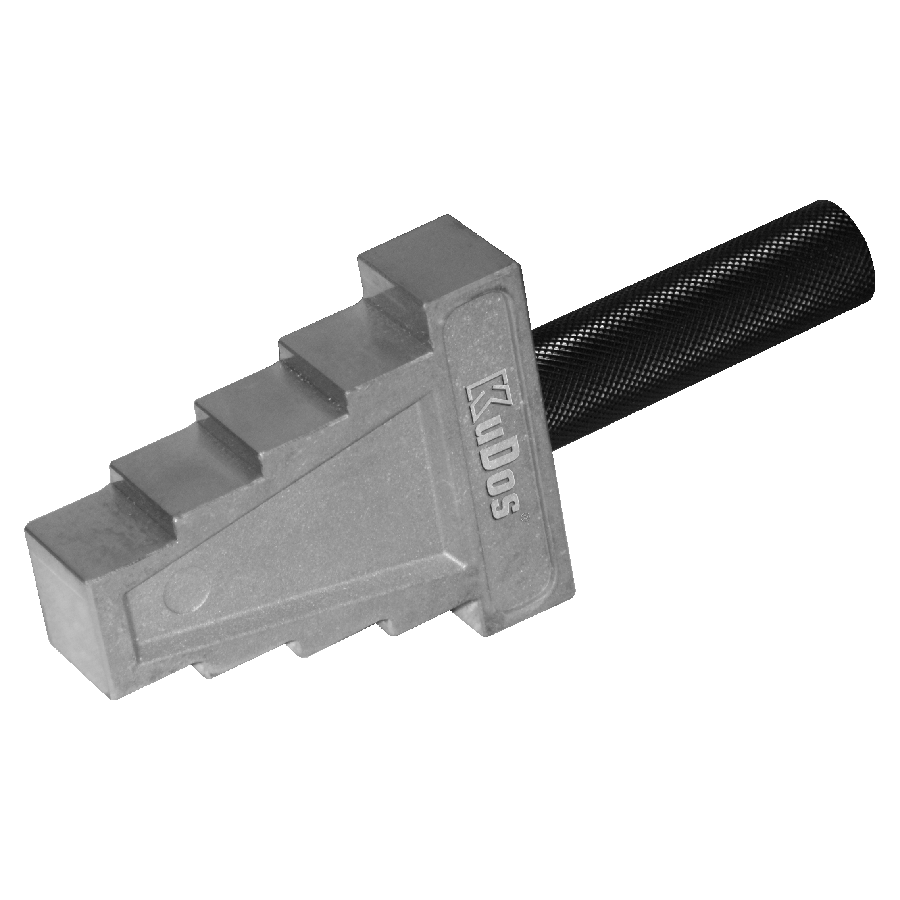

Safety block

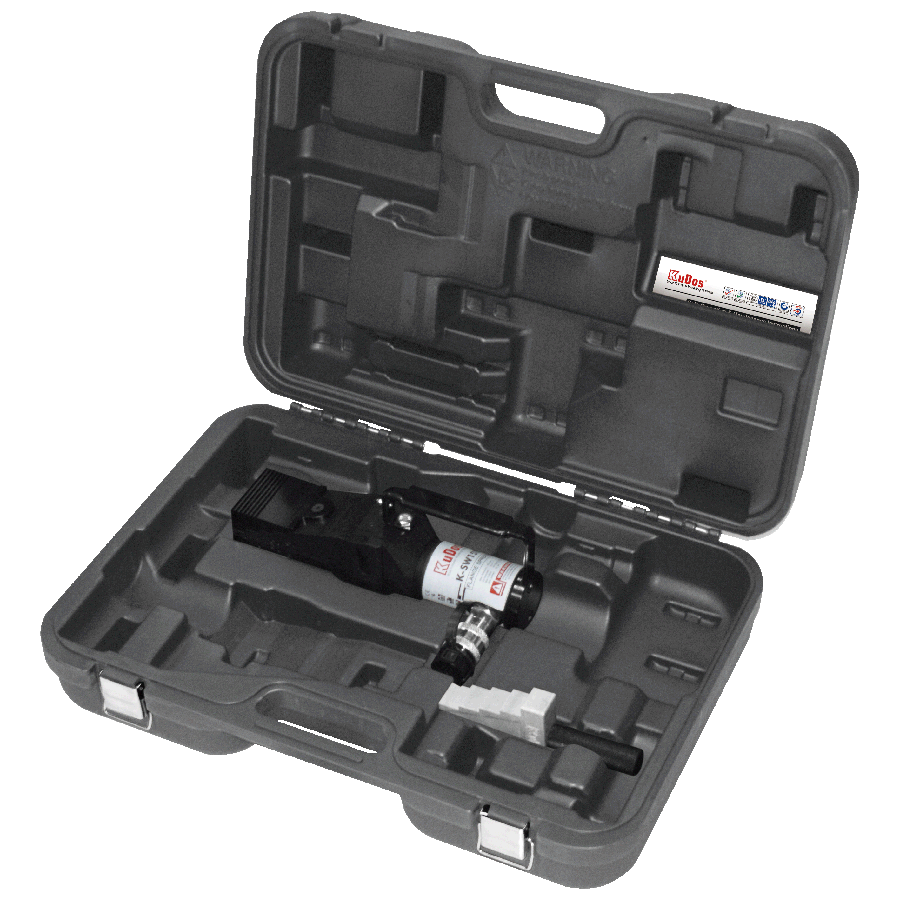

Plastic carrying case
(Case sold separately)
