Flange Spreader K-DFS8

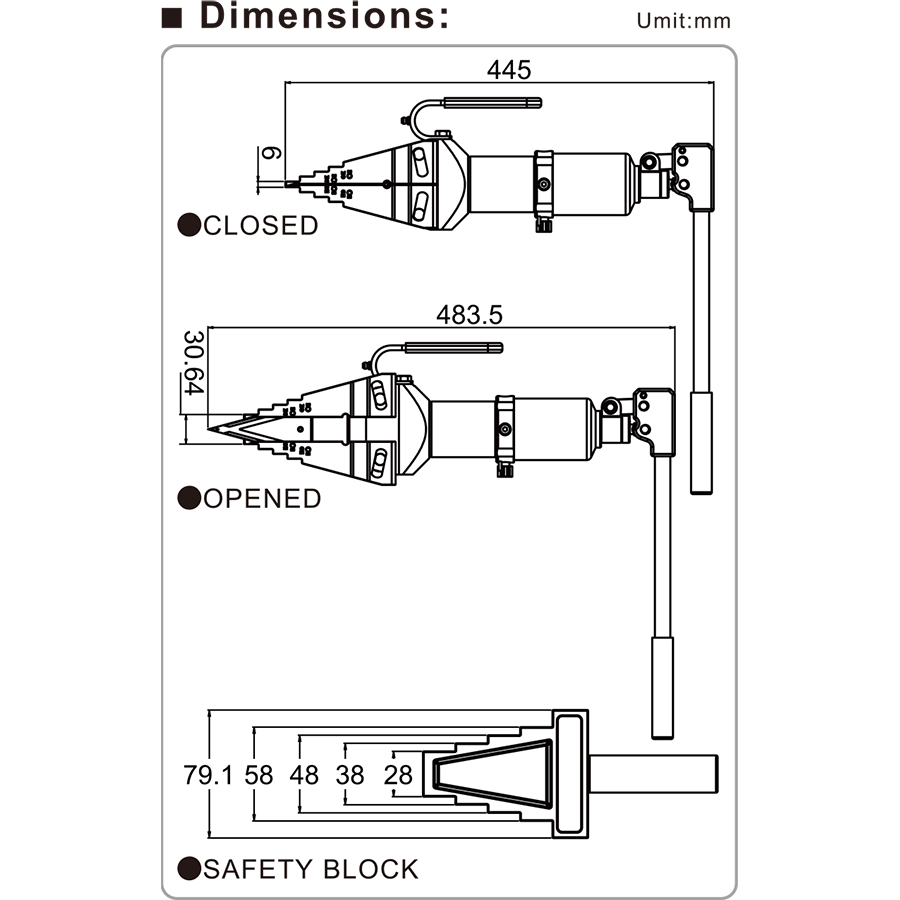

Height : 445 mm

Weight : 9.0 kgs

■ Specifications :

Max. pressure : 700 bar

Oil required : 79 cc

Max. output : 15.60 tons / 138.9 Kn

■ Spreader capacity :

Min. spread : 32 mm

Max. spread : 81 mm

■ Features :

Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.

Unique interlocking wedge design: no first step bending and risk of slipping out of joint.

Requires very small access gap of only 6 mm (.24 in).

Few moving parts means durability and low maintenance.

■ Accessories :

Safety block

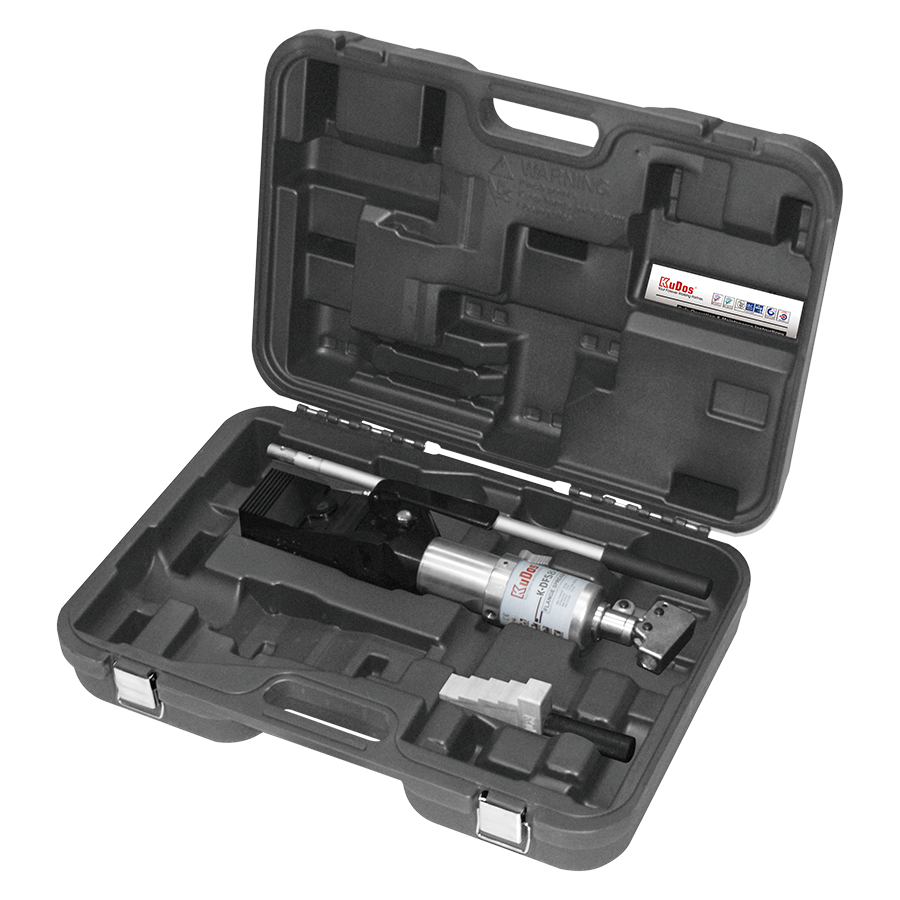

Plastic carrying case
