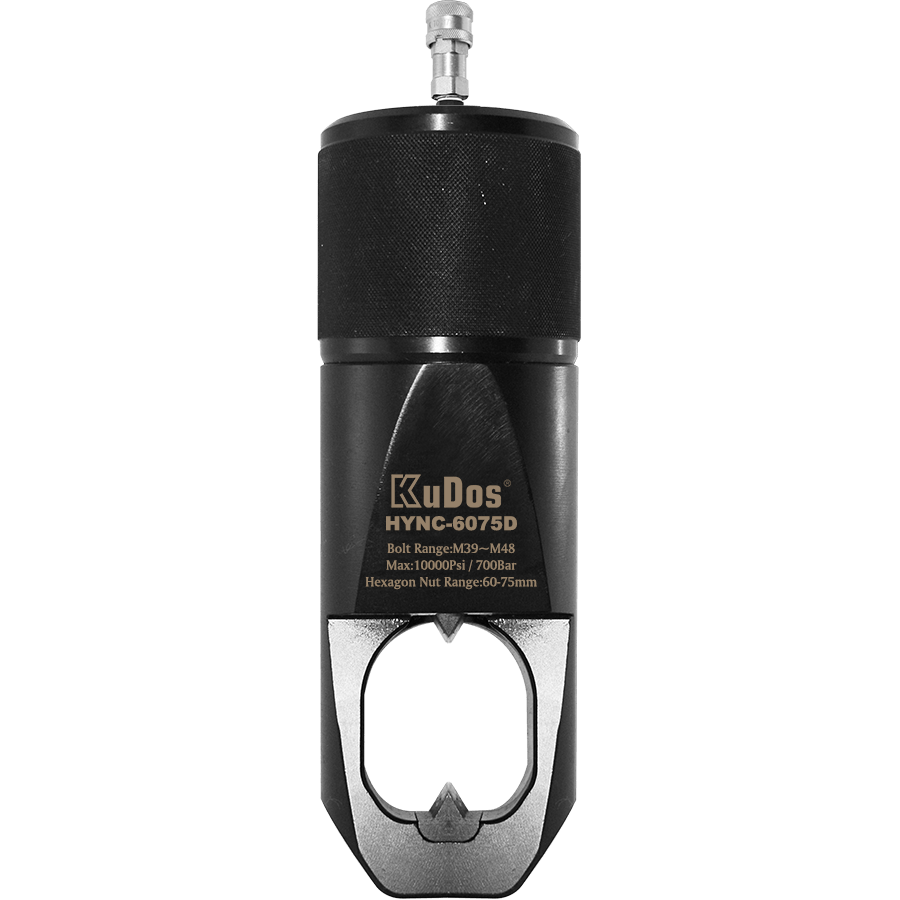

HYNC-Series (Double Blade) HYNC-6075D
Model： hync-6075d
HYNC-series (Double blade)
■ Features :
Compact design.
Easy to use.
Seven models of nut splitter to choose from.
Unique angled head design for a variety of applications.
Single action cylinder with hydraulic advance with spring-return.
Operated by hydraulic pump with rated oil pressure of 700 bar(10,000psi).
■ Specifications: Double Blade
| Model No. | Bolt Range | Hex Nut Range (mm) |
Capacity (ton) |
Oil Capacity (cm³) |
Dimensions (mm) | Net Weight (kg) |
Gross Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||||
| HYNC-1319D | M6–M12 | 10–19 | 6.23 | 15 | 223 | 44 | 67 | 1.3 | 2.8 |
| HYNC-1924D | M12–M16 | 19–24 | 11.77 | 20 | 250 | 56 | 74 | 2.4 | 3.8 |
| HYNC-2432D | M16–M22 | 24–32 | 19.07 | 60 | 275 | 64 | 78 | 3.5 | 5.4 |
| HYNC-3241D | M22–M27 | 32–41 | 26.49 | 80 | 305 | 77 | 90 | 5.1 | 7.2 |
| HYNC-4150D | M27–M33 | 41–50 | 38.92 | 155 | 344 | 97 | 111 | 9.7 | 13.8 |
| HYNC-5060D | M33–M39 | 50–60 | 56.04 | 240 | 386 | 115 | 131 | 14.7 | 18.6 |
| HYNC-6075D | M39–M48 | 60–75 | 102.76 | 492 | 476 | 170 | 186 | 40.7 | 42.9 |

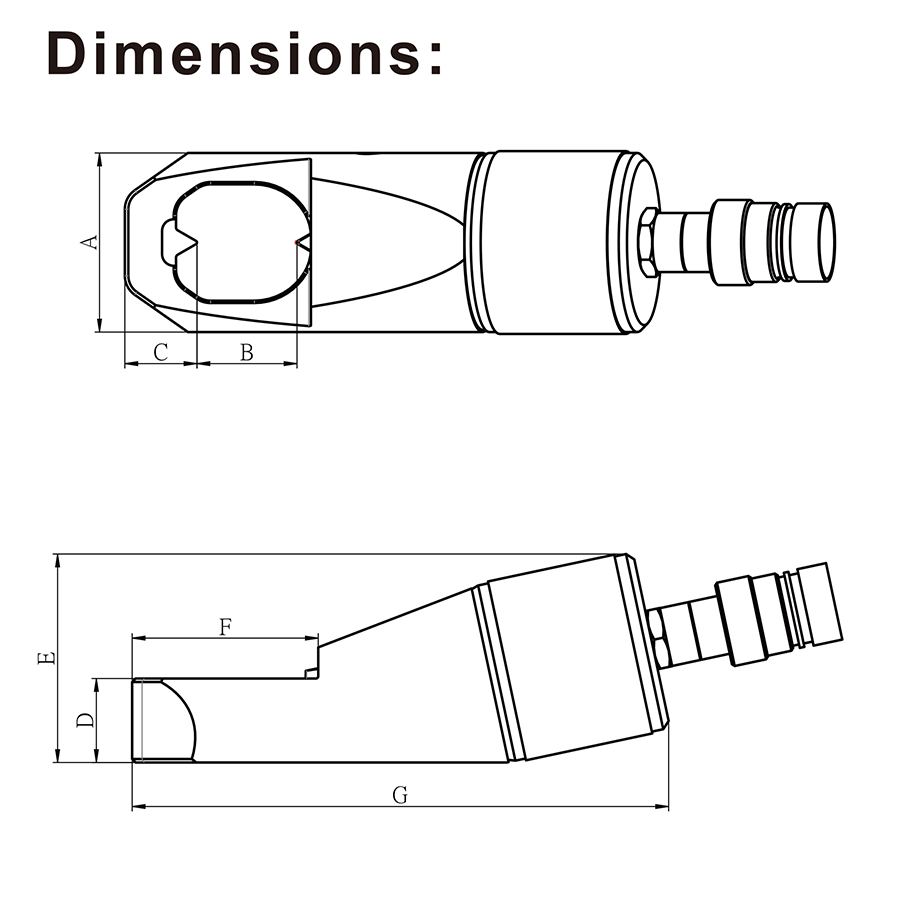

| Model No. | A | B | C | D | E | F | G | Spare Chisels No. | Item |
|---|---|---|---|---|---|---|---|---|---|
| HYNC-1319D | 40 | 21 | 18 | 19 | 53 | 41 | 139 | HYNC-1319D#7, #10 | Chisels |
| HYNC-1924D | 54 | 26 | 22 | 25 | 66 | 50 | 168 | HYNC-1924D#7, #10 | Chisels |
| HYNC-2432D | 64 | 34 | 26 | 30 | 78 | 65 | 198 | HYNC-2432D#7, #10 | Chisels |
| HYNC-3241D | 77 | 43 | 31 | 36 | 90 | 80 | 231 | HYNC-3241D#7, #10 | Chisels |
| HYNC-4150D | 94 | 52 | 39 | 45 | 111 | 93 | 271 | HYNC-4150D#7, #10 | Chisels |
| HYNC-5060D | 106 | 62 | 43 | 54 | 131 | 107 | 315 | HYNC-5060D#7, #10 | Chisels |
| HYNC-6075D | 156 | 77 | 54 | 75 | 186 | 133 | 411 | HYNC-6075D#7, #10 | Chisels |
※ Caution
- Only suitable for grade 8 or lower nuts. Splitting stainless, square and/or star nuts is prohibited.
- Nut hardness must not exceed HRC 44.
■ Accessories
| Model No. | Hex Wrench (mm) | Packaging |
|---|---|---|
| HYNC-1319D | 2.5 & 4 | KuDos® Plastic Carrying Case |
| HYNC-1924D | 3 & 5 | |
| HYNC-2432D | 4 & 6 | |
| HYNC-3241D | 4 & 6 | |
| HYNC-4150D | 4 & 6 | |
| HYNC-5060D | 5 & 6 | |
| HYNC-6075D | 5 & 6 | Crate |
