Hydraulic Cutting Heads HYCC-P85HE

Length : 430 mm
Weight : 6.6 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 65 cc
Max. output : 5.47 tons / 48.7kN

■ Cutting capacity :
Cu strands : 28 mm
Al strands : 38 mm
CCP cable : 85 mm
Underground cable : 50 mm (Except armoured cable)

※Cutting of piano wire is prohibited.

■ Features :
Functional handle for convenient operation.
Lock pin type cutting head
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable
Single action cylinder with spring return.

■ Accessories :

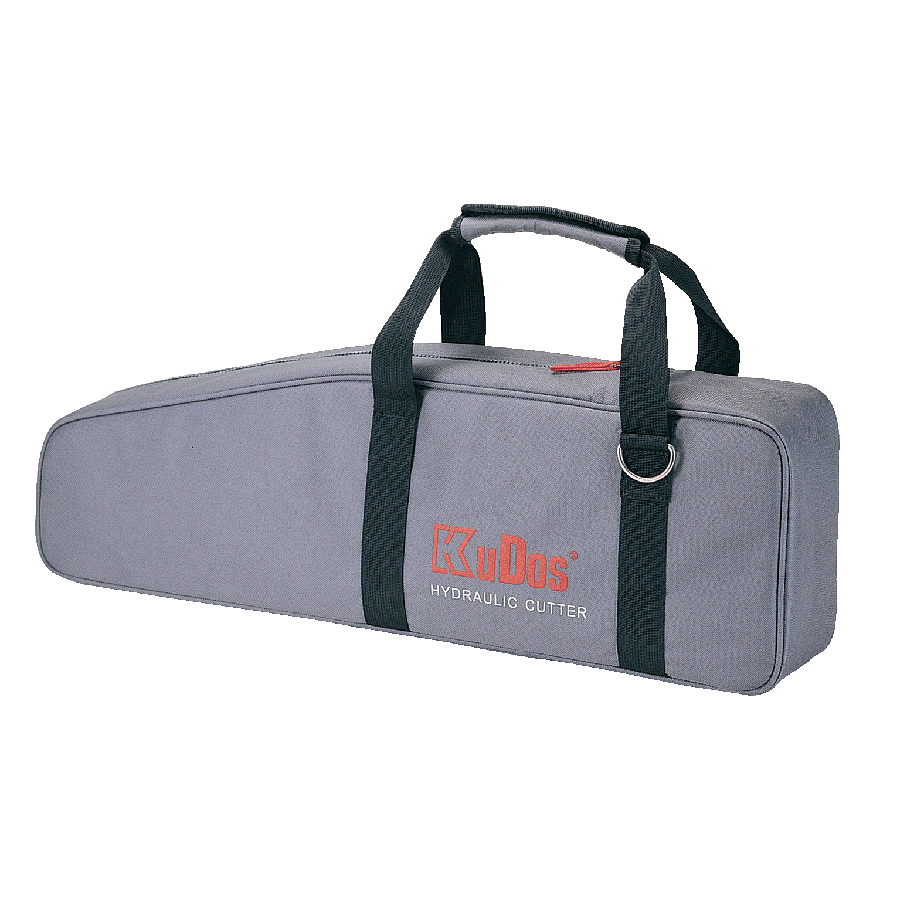

Carrying bag
