Hydraulic Cutting Heads HYCC-075S

Length : 373 mm
Weight : 8.7 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 215 cc
Max. output : 22.67 tons / 201.7 kN

■ Cutting capacity :
Cu strands : 75 mm
Al strands : 75 mm
Underground cable : max. up to 240 mm² x 4 cores approx. 65 mm outer diameter

※Cutting of piano wire is prohibited.

■ Features :
Fast cutting with remote operation.
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi).

■ Accessories :

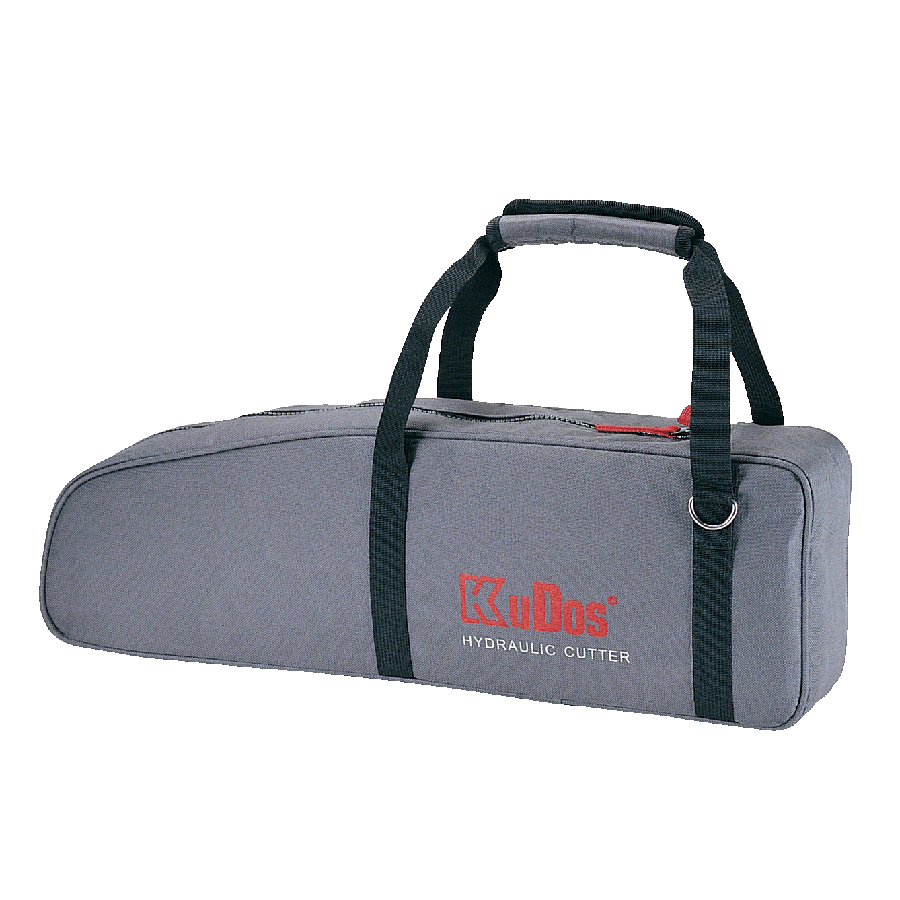

Carrying bag
