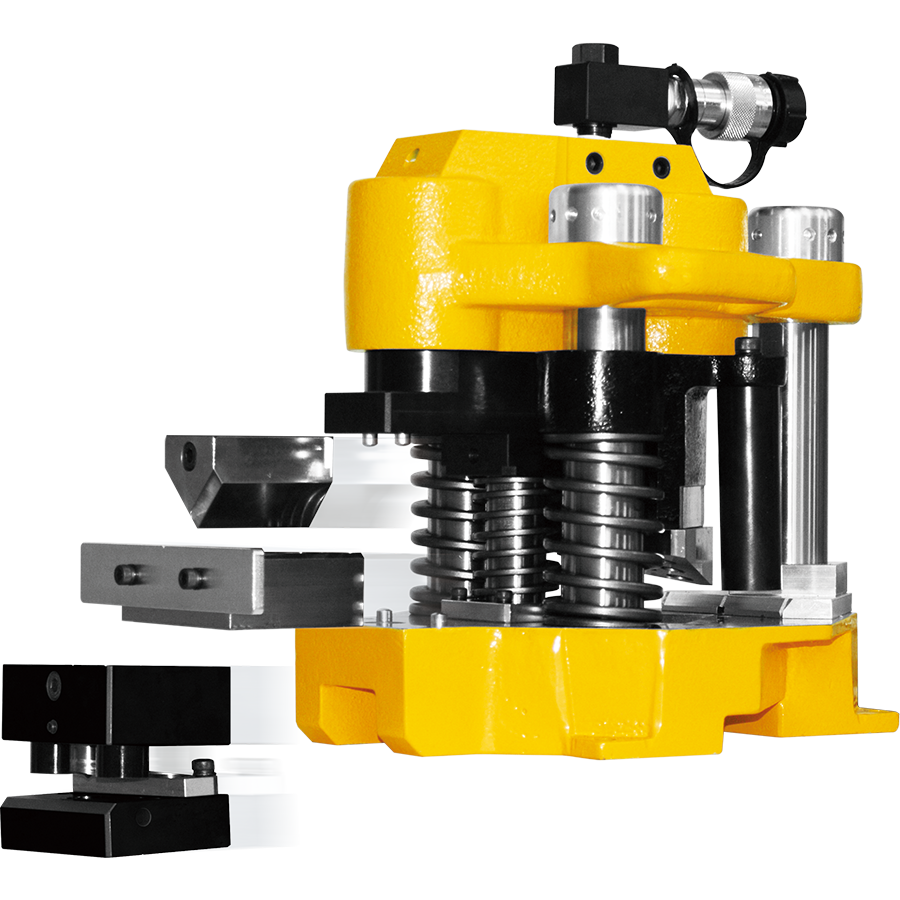

Hydraulic Puncher FM-30

Dimension : 325.4 mm(L) × 282.4 mm(W) × 343.1 mm(H)
Weight : 51.7 kgs

■ Specifications :
Max. pressure : 700 bar / 10,000 psi
Acceptive materials : SS 400 & SUS 304
Max. processing dimension : 75 mm × 75 mm × 6 mm

■ Cutting capacity :
Max. output : 25 tons / 245 kN
Max. width : 15 mm
Oil required : 119.4 cc

■ Punching capacity :
Max. output : 17 tons / 167 kN
Max. width : 10.95 mm
Oil required : 46.8 cc

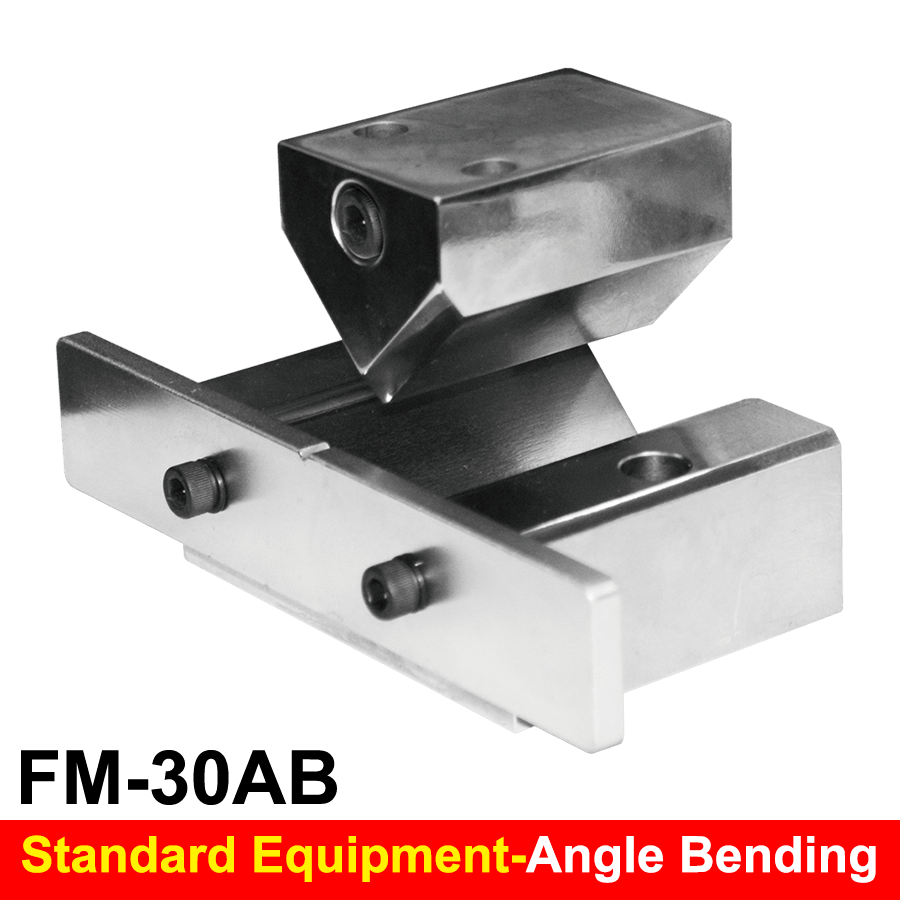

■ Angle bending capacity :
Max. output : 7 tons / 69 kN
Max. width : 35 mm
Oil required : 86.2 cc

■ Features :
Work with angle steel or stainless steel up to 75 x 75 x 6 mm.
V notching and bending dies are integrated into the machine. Only punching dies need to be changed.

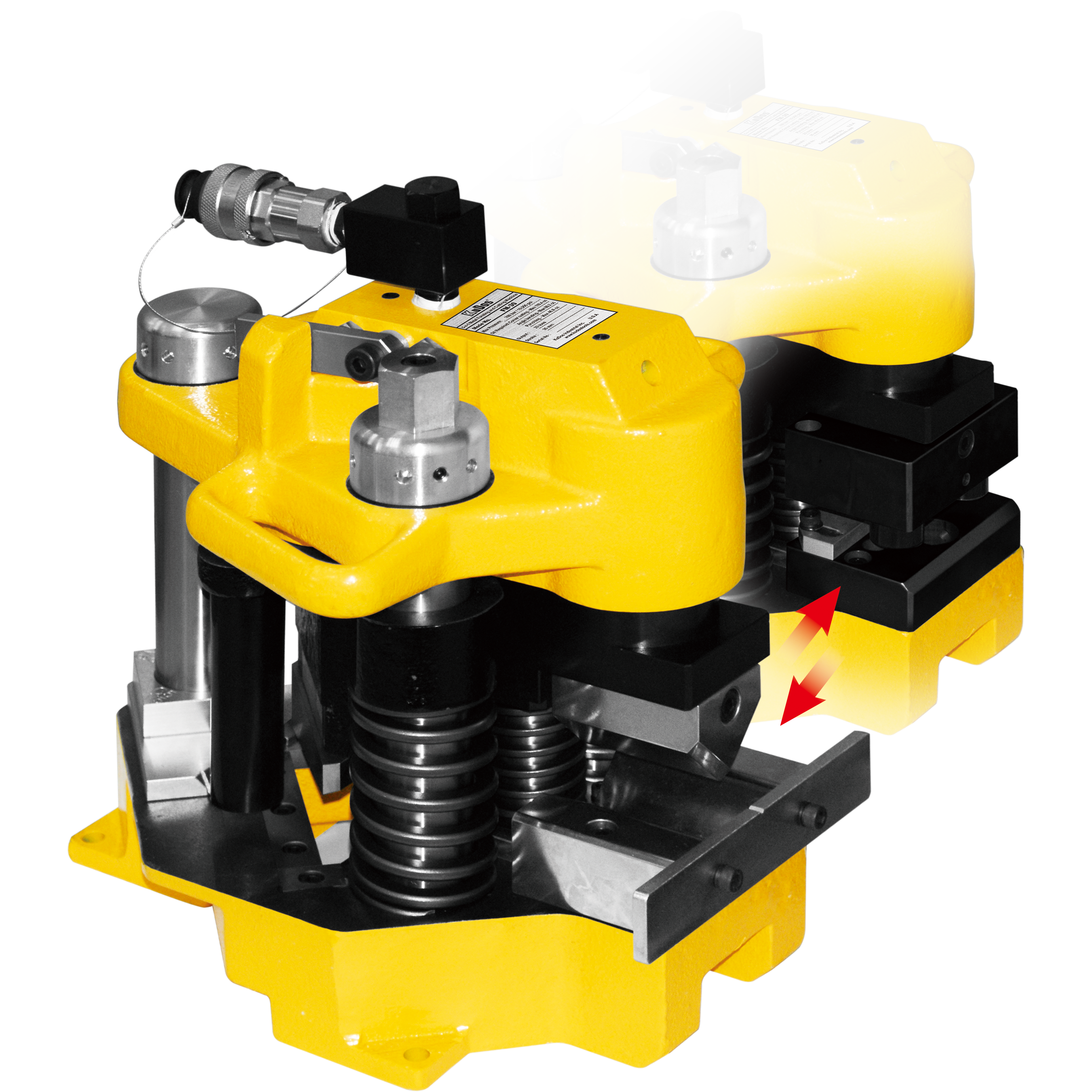

Special changeover shaft permits steel forming to be done from V notching to bending within seconds.
By adjusting clamp base, V notch can be positioned for 3 mm to 6 mm, 90 degree or 45 degree corner cut.
Can be used with any hydraulic pumps having pressure rating of 700 bars.

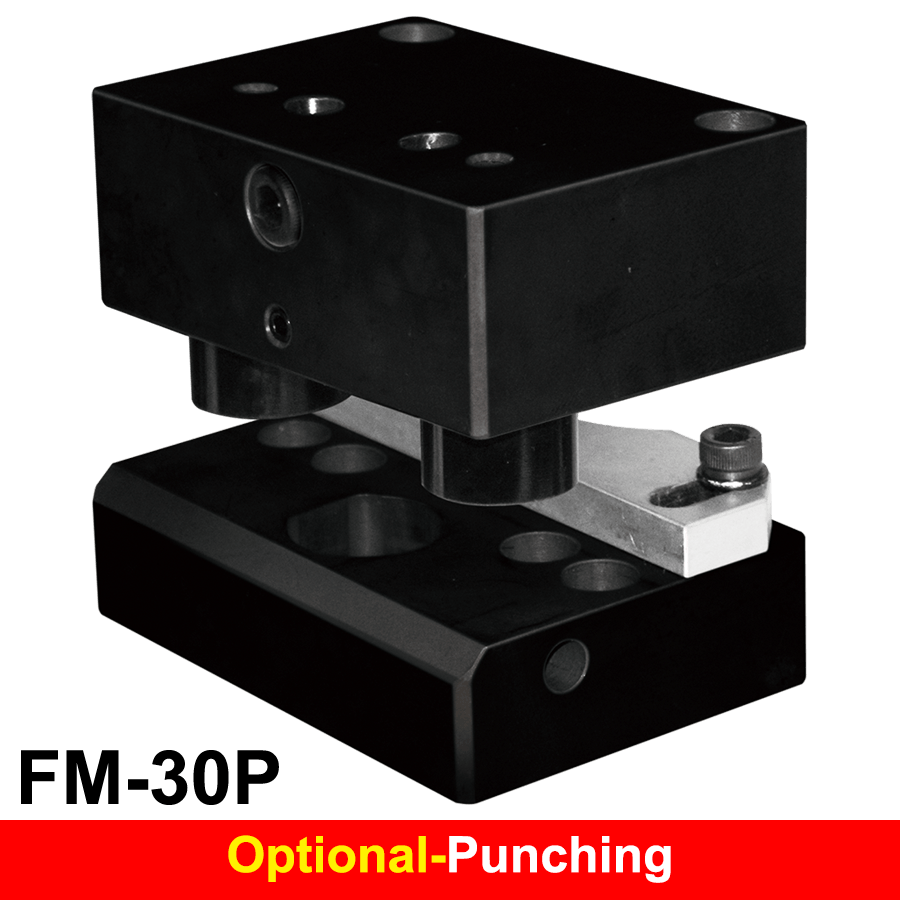

Punching dies are sold seperately.
