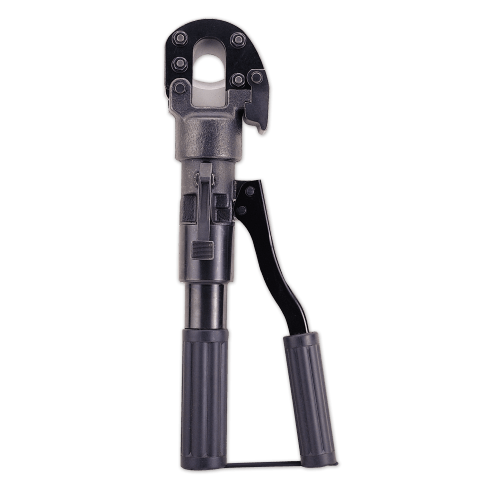

Detail
Length : 360 mm
Weight : 2.6 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 25 cc
Max output : 7.45 tons / 66.3 kN
■ Cutting capacity :
Wire rope 6x7 : 24 mm
Wire rope 6x12 : 24 mm
Wire rope 6x19 : 24 mm
Soft copper bar : 23 mm
Soft aluminum bar : 24 mm
Soft steel bar : 16 mm
Cu strands : 24 mm
Al strands : 24 mm
ACSR : 24 mm
※Note: Tensile strength (daN/mm²≦180)
※Cutting of piano wire is prohibited.
■ Features :
180˚ rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
Single stage pumping action.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.
■ Accessories :

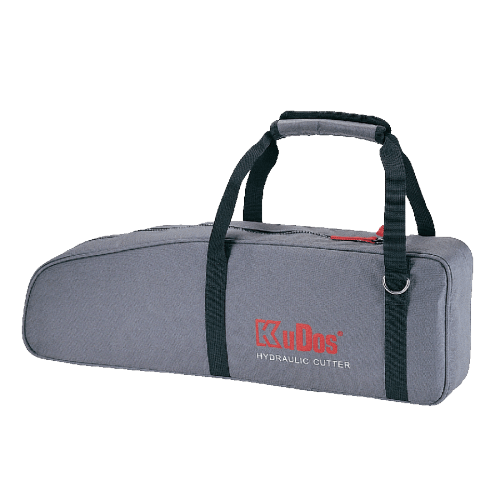

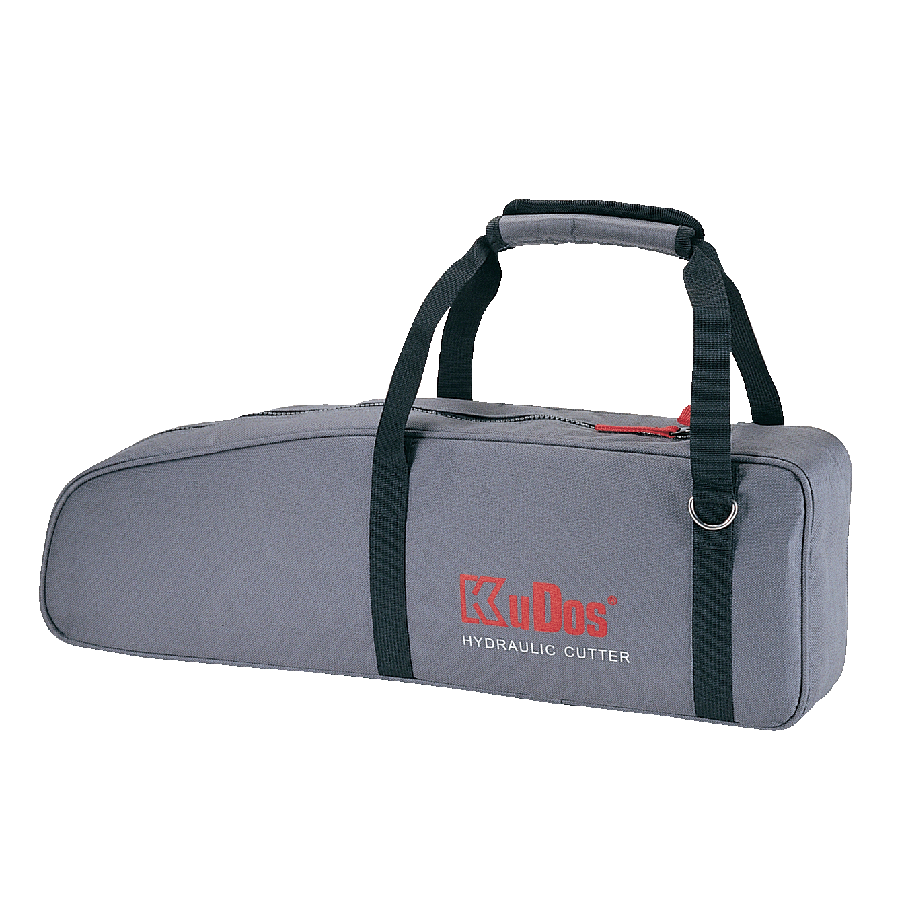

Carrying bag
