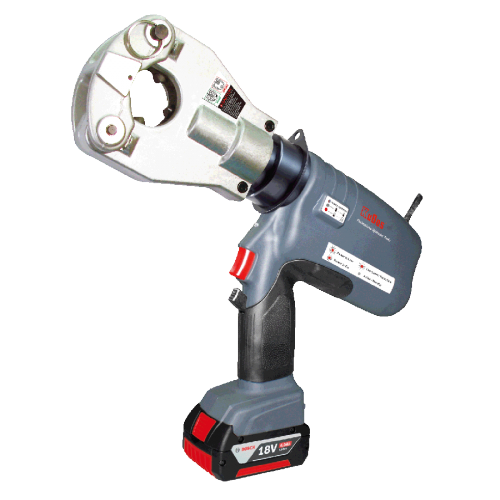

Detail
Height : 400 mm
Weight : 5.7 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 120 cc
■ Crimp capacity :
Max pressure : 700 bar
Jaw opening : 38 mm
Crimping force : 7.03 tons / 62.5 kN
Main application : Anderson type connectors up to 750 MCM
