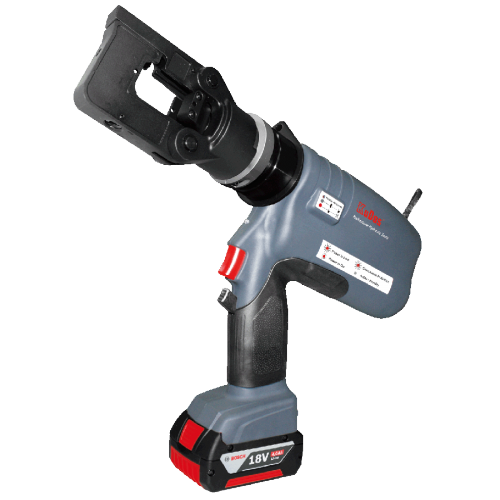

Crimper LEC-240TR

Height : 360 mm
Weight : 4.1 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 120 cc

■ Crimp capacity :
Max pressure : 460 bar
Max output : 5.77 tons / 51.3 kN
Max compression : 240 mm²
Accepts BEKU type dies
Stock dies are for DIN46235 terminals

※Dies sold separately (AHE 1016 / 2535 / 5070 / 95120 / 150 / 185 / 240)
