 Detail

Length : 430 mm

Weight : 3.6 kgs(w/o battery)



Specifications :

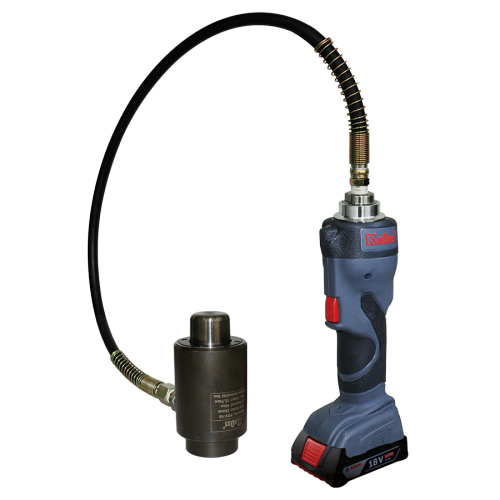

Drive unit : 18V DC motor

Charger (GS/CE) :

Input voltage : 110V single phase AC

Input voltage : 230V single phase AC

Input frequency : 50~60Hz

Max pressure : 700 bar

Reservoir capacity : 48 cc



Punch driver : PDV-10

Ram Stroke : 25 mm

Oil Required : 47 cc

Max. Output : 14.01 tons / 125 kN



Punching capacity :

Max. Thickness

Stainless Steel : 1.6 mm

Mild Steel : 3.2 mm

4 inch diameter hole on 3.2 mm thickness mild steel

Single action cylinder with spring release



Accessories :

Draw stud (3/4, 3/8)

Spacer (S,M,L)

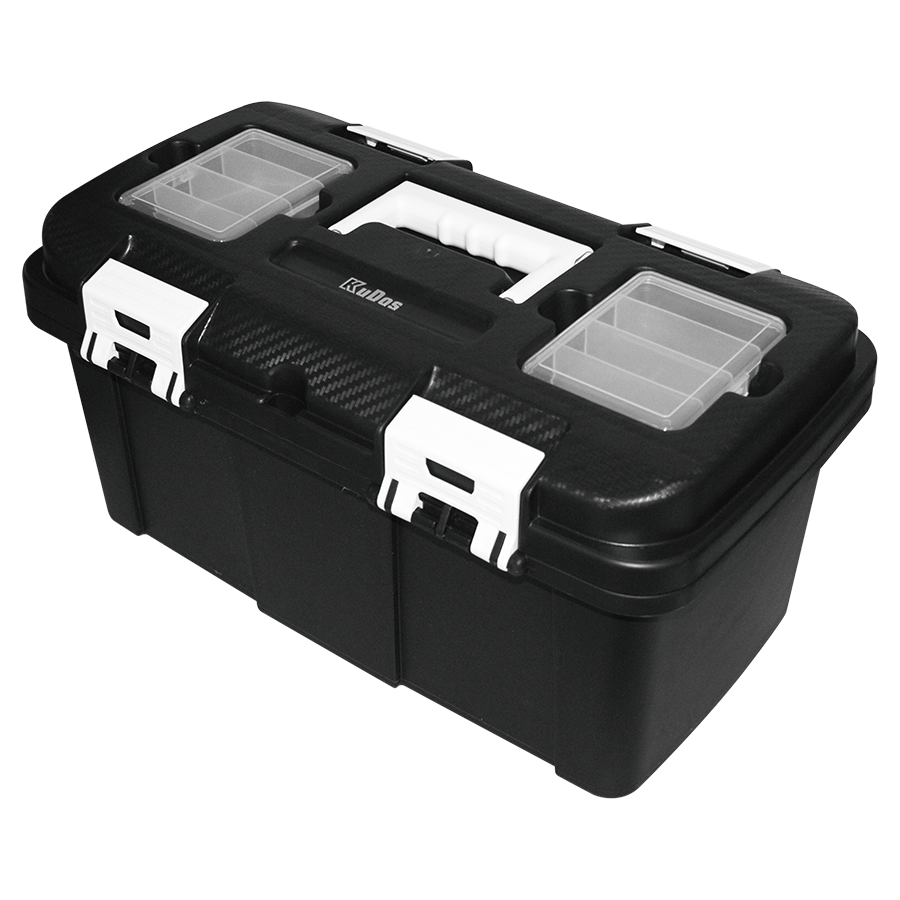

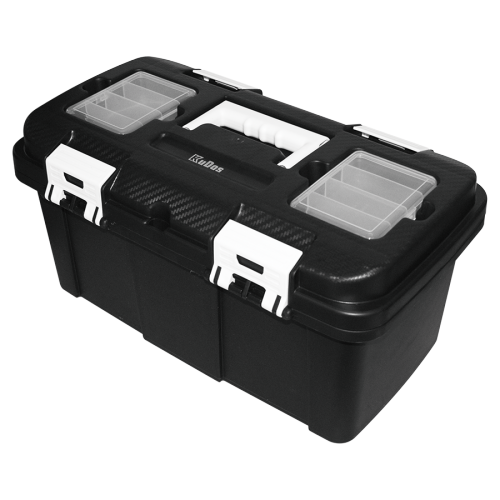

Plastic case

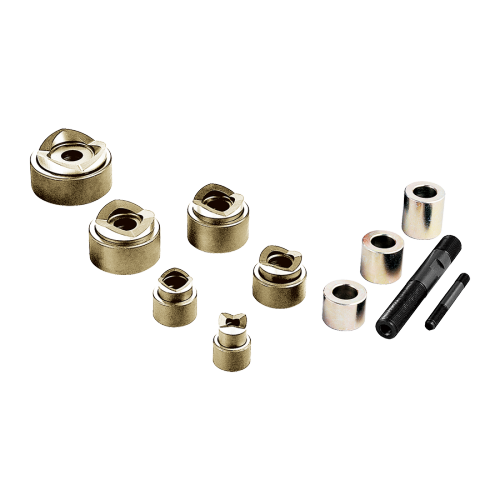

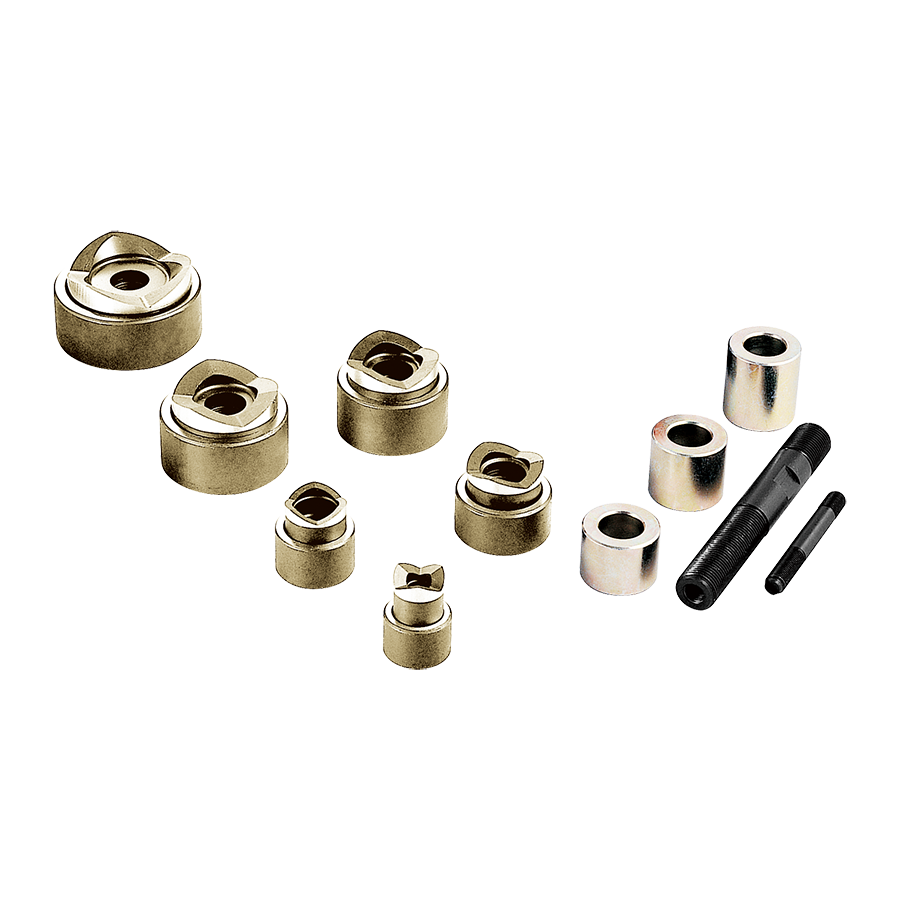

Optional Punching Dies :

6 Imperial Punch Die Sets

   1/2”, 3/4”, 1”, 1-1/2”, 2”



6 Metric Punch Die Sets

   16 mm, 20 mm, 25 mm,

   32 mm, 40 mm, 50 mm
