 Detail

Height : 337 mm
Weight : 2.9 kgs (w/o battery)

■ Specifications :
Drive unit : 18V DC motor
Charger (BOCSH) :
Input voltage : KCV-54AC-120
110V single phase AC
Input voltage : KCV-54AC-230
230V single phase AC
Input frequency : 50~60 Hz
Input current : 21.75 VA

■ Cutting Capacity :
Max cable diameter :
Nonferrous 54 mm

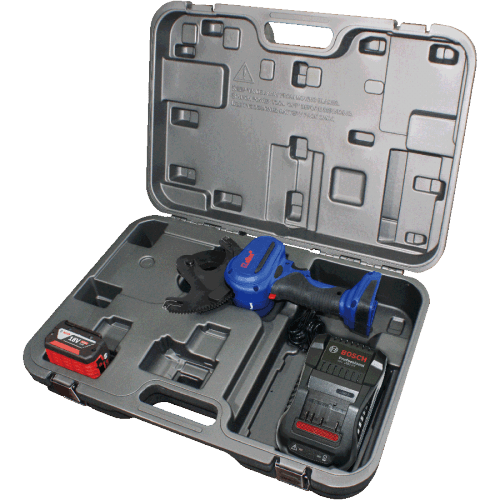

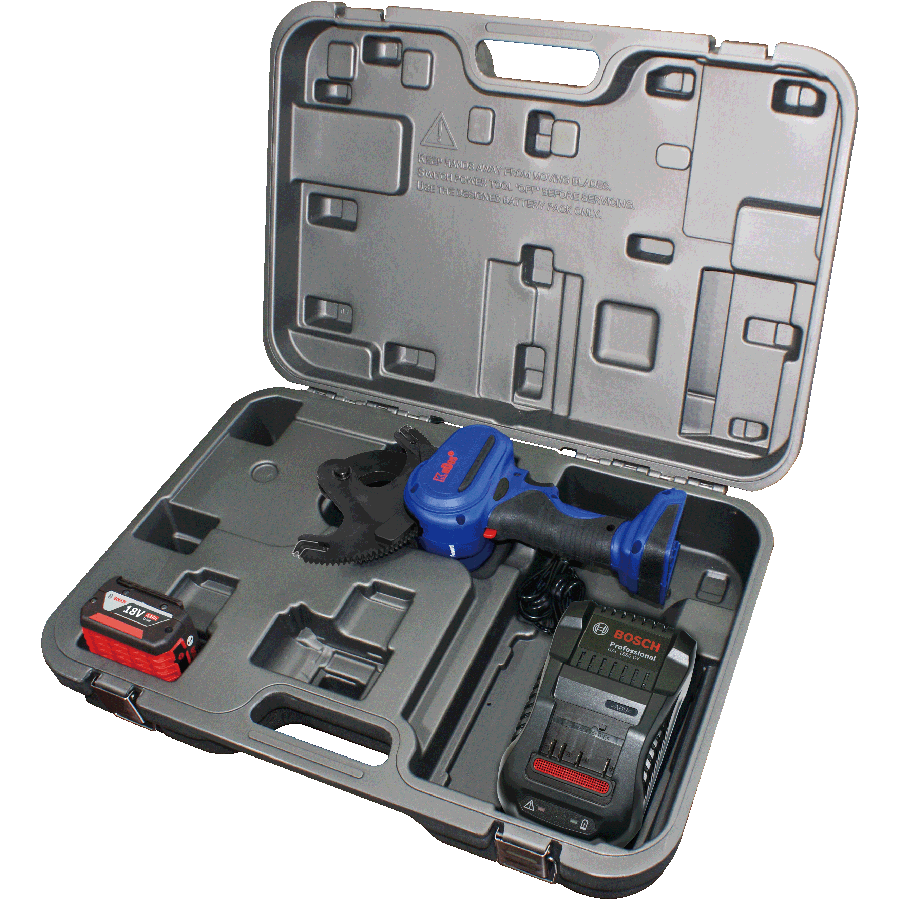

■ Accessories :
KuDos plastic carrying case
18V Battery, 110V or 230V Charger

※For reference only
Model no. Specification
Polyethylene cable 600V-CV325 mm²; (31 mm OD)
Polyethylene cable 600V-CV150 mm²; x 3 (46 mm OD)
600V-CV500 mm²; (38 mm OD)
6KV-CVT500 mm²; (45 mm OD)
Multi-core vinyl insulation cable VVR150 mm²; (47 mm OD) 3 core
Soft copper cable IV500mm²; (35 mm OD)
Hard copper cable 150mm²; (21 mm OD)
