Length : 111 cm
Weight : 9.2 kgs
■ Cutting capacity :

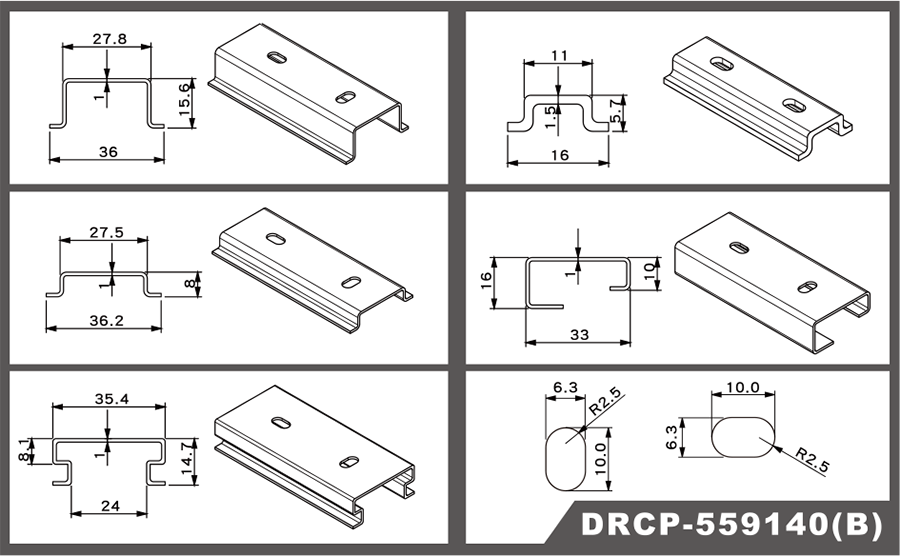

Suitable for cutting 5 different shapes of DIN-rail sections without burrs or deformation.

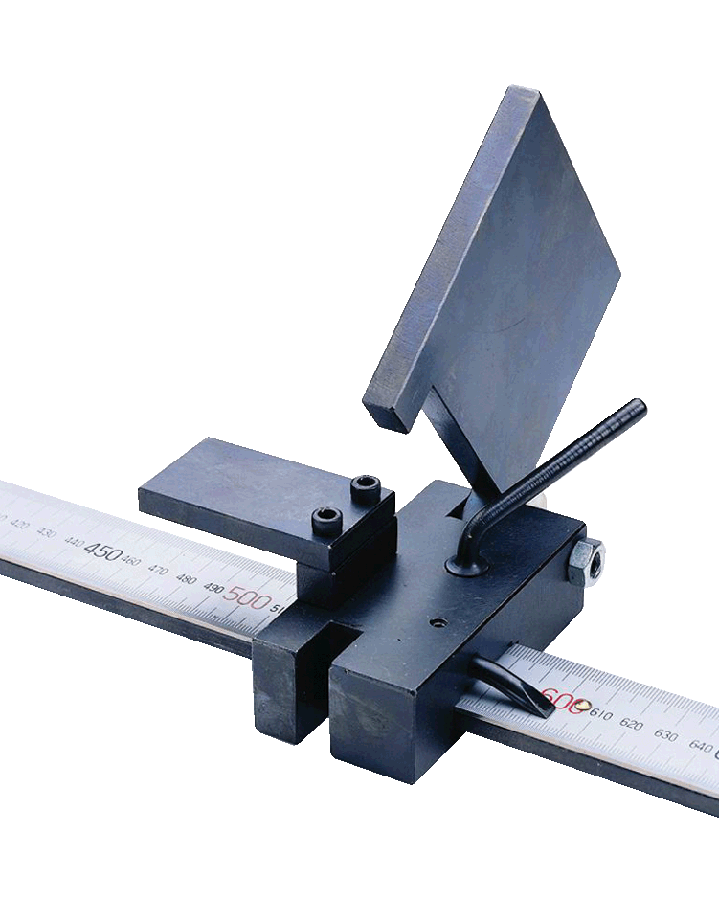

Ruler and Stopper are supplied with this tool.
■ Punching capacity :
DRCP-559140(A) : This tool can punch 5.2 mm x 8.8 mm holes along or perpendicular to the axis of the rail.
DRCP-559140(B) : This tool can punch 6.3 mm x 10.0 mm holes along or perpendicular to the axis of the rail.
■ Features :

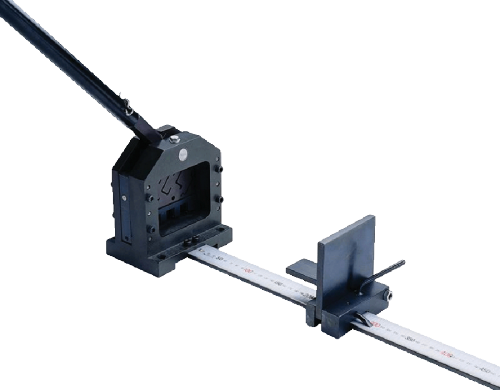

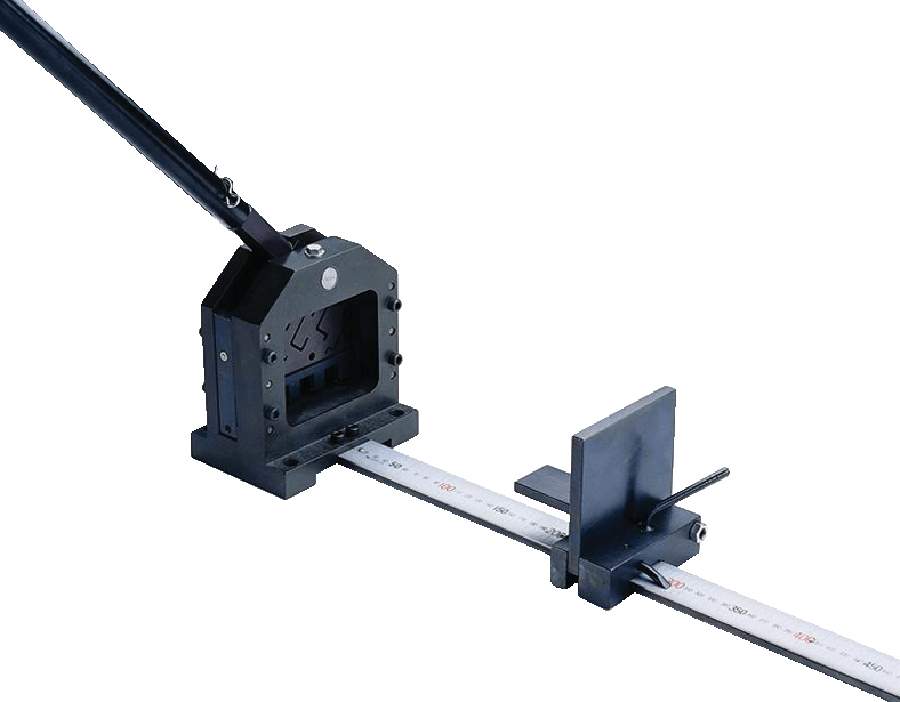

Fast and easy cutting of DIN-rails for mounting electric components free of burrs.
Delivered complete with a length stop gauge and punch set for mounting-holes.
