Detail
Length : 528 mm
Weight : 5.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 31 cc
Max. Output : 14.01 tons / 124.6 kN
■ Crimping Capacity :
For non-Insulated terminals and sleeves up to 150 mm²

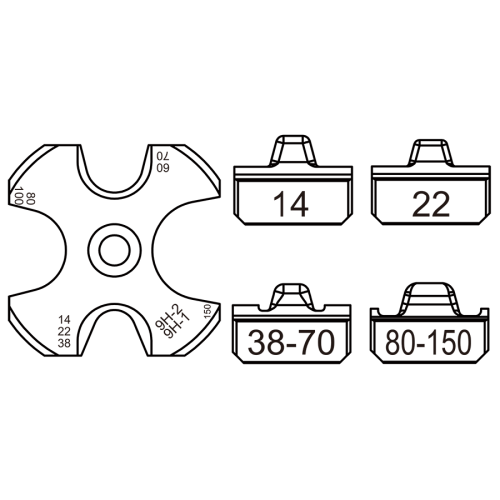

With Indentor 14, 22, 38~70 and 80~150 mm²
■ Features :
Light weight, compact and slim design.
Rotary nest for easy setting.
Two stage pumping for rapid ram advance.
Relief valve.
■ Accessories :

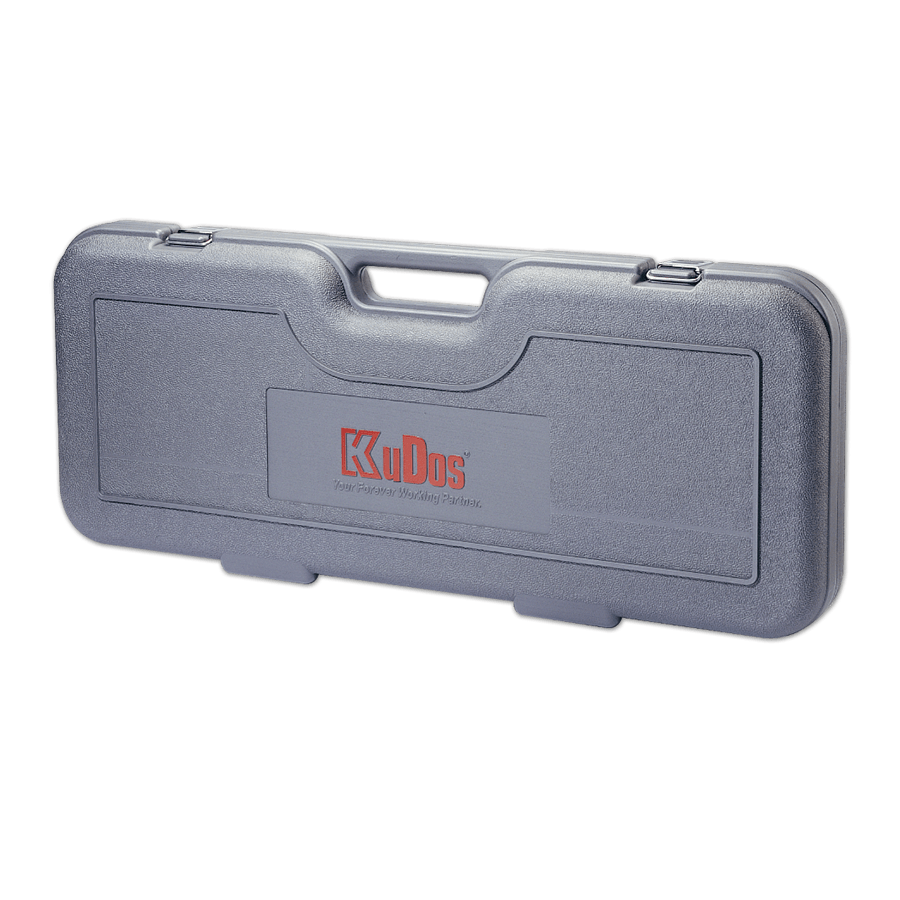

Plastic carrying case
