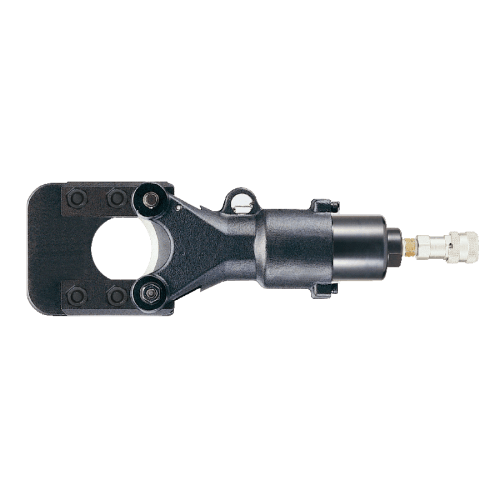

 Detail

Length : 346 mm
Weight : 4.4 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 72 cc
Max output : 10.73 tons / 95.5 kN

■ Cutting capacity :
Wire rope 6x7 : 40 mm
Wire rope 6x12 : 40 mm
Wire rope 6x19 : 40 mm
Soft copper bar : 32 mm
Soft aluminum bar : 40 mm
Soft steel bar : 20 mm
Cu strands : 40 mm
Al strands : 40 mm
ACSR : 40 mm

※Cutting of piano wire is prohibited.

■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.

■ Accessories :

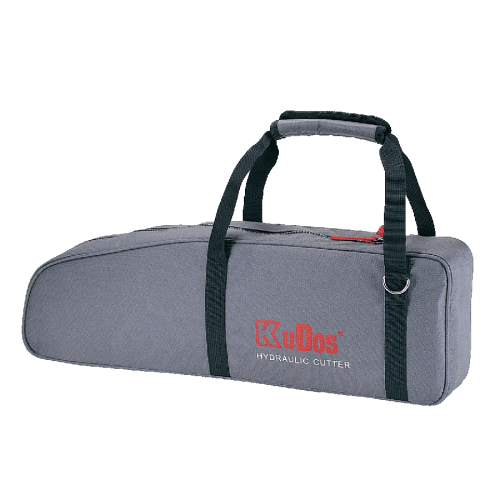

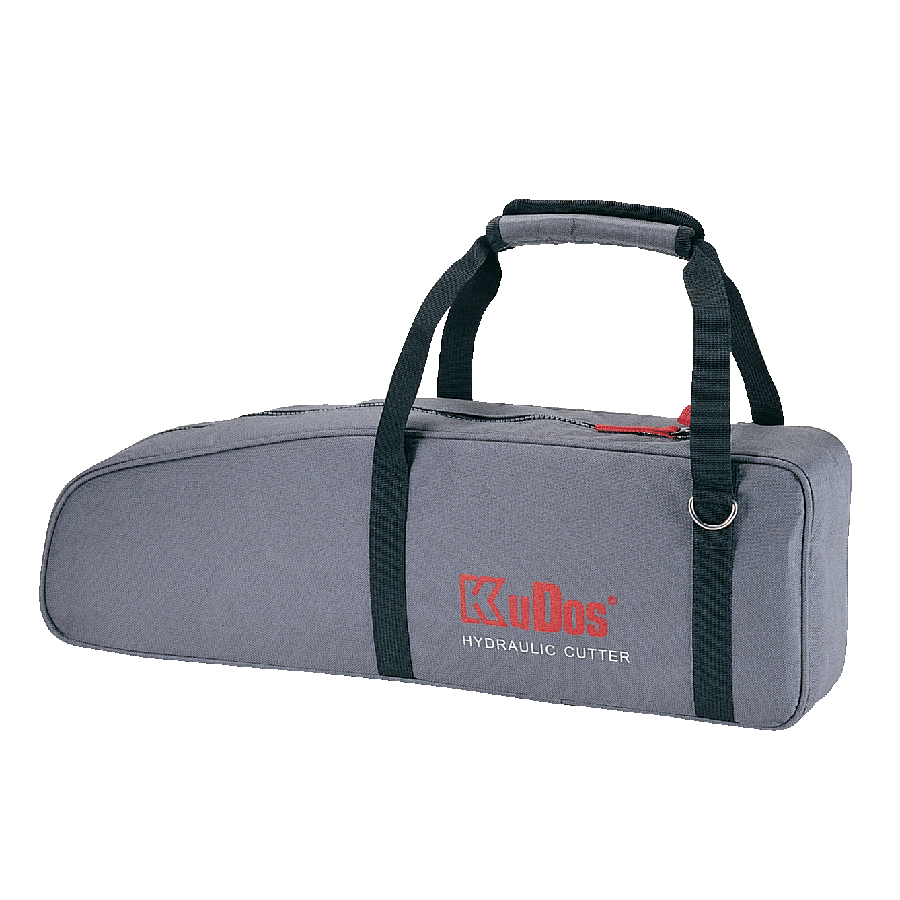

Carrying bag
