Length : 373 mm
Weight : 5.1 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 73 cc
Max output : 6.23 tons / 55.4 kN
■ Cutting capacity :
Cu strands : 85 mm
Al strands : 85 mm
CCP cable : 85 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.

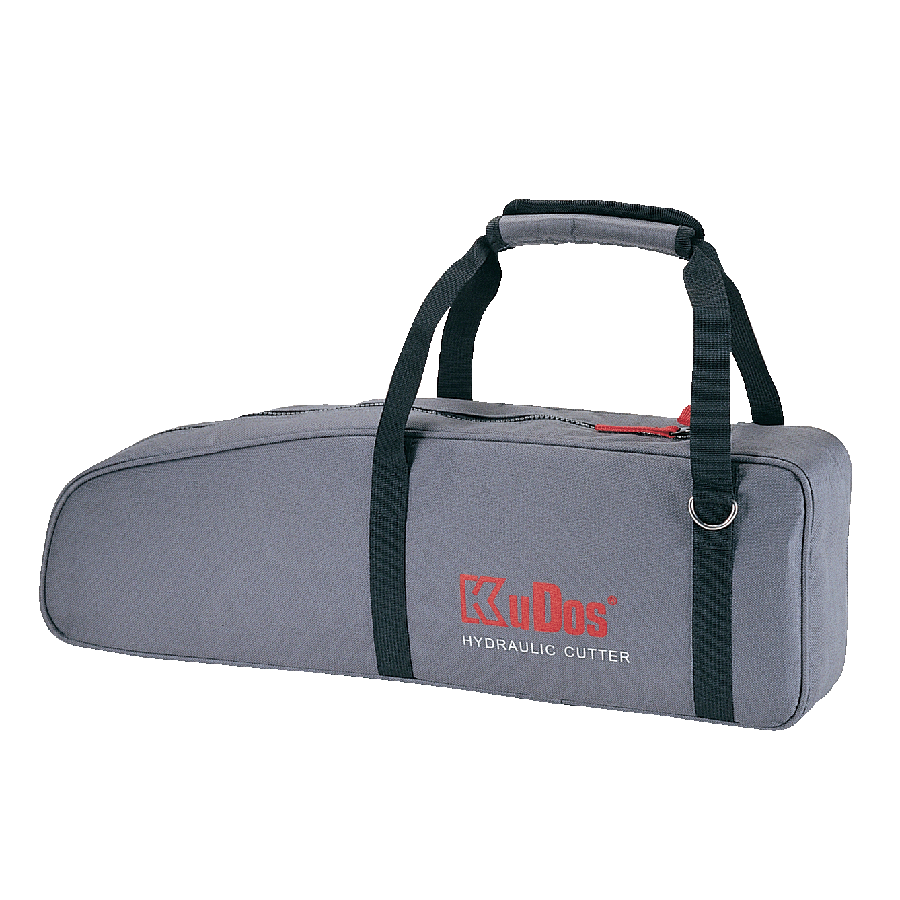

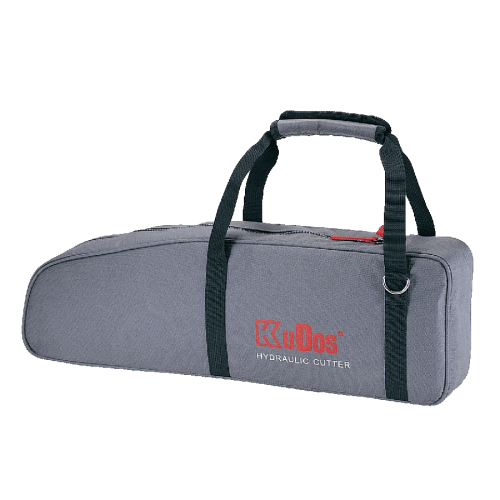

■ Accessories :
