Bus Bar Cutter & Benders CB-160D

Height : 340 mm
Weight : 17.0 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 198 cc
Max. output : 22.0 tons / 195.7 kN

■ Angle bending capacity :
Suitable materials :
Copper width thickness : 160 x 13 mm
Aluminum width thickness : 160 x 13 mm
Iron width thickness : 160 x 8 mm
Max. opening : 44.0 mm
Piston stroke : 70.0 mm

■ Features :
Convenient handle for easy carrying.
Operated by any hydraulic pump with rated oil pressure of 700 bar.
Efficient and safe to use.

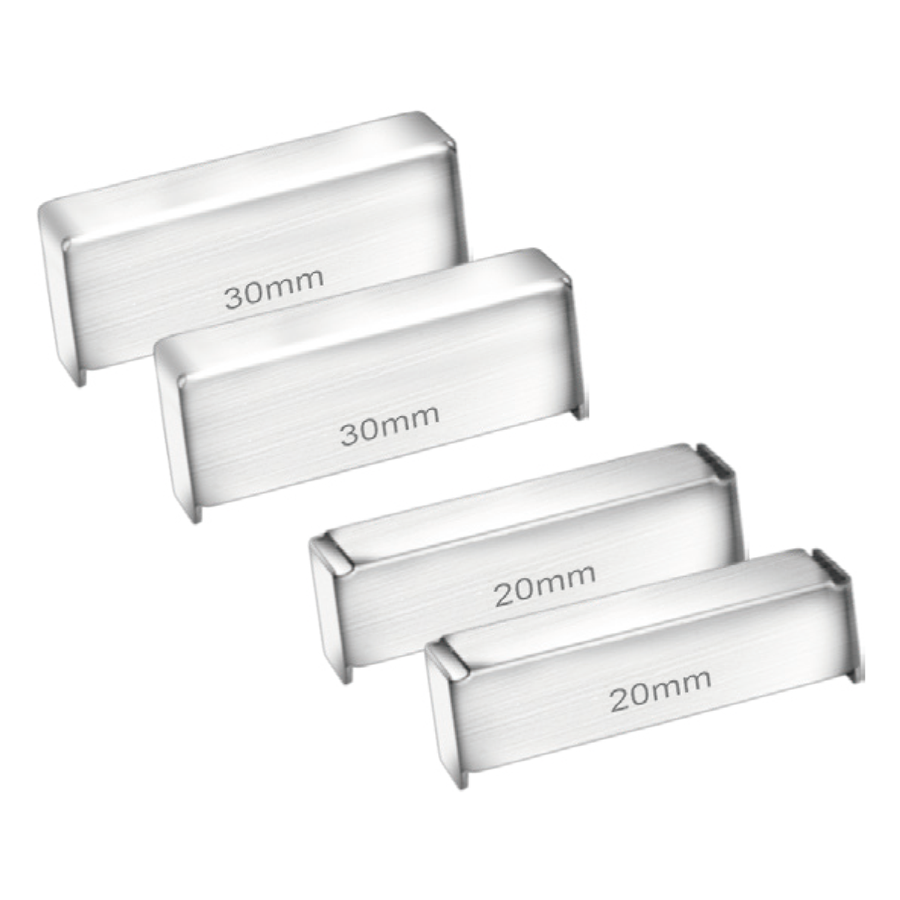

Heightening block (20 mm、30 mm)
