Height : 539 mm
Weight : 54.5 kgs (w/o oil)

■ Specifications :
Max. pressure : 700 bar
Oil required : 9.5 L
Motor size : 6.5 HP
Valve type : 4 way, 3 position manual / solenoid valve
Motor manufacturer : Honda
Manually controlled engine

■ Oil delivery :
13.4 L / min at low pressure
2.4 L / min at high pressure

■ Features :
Pressure gauge can be located in upright position for better reading.

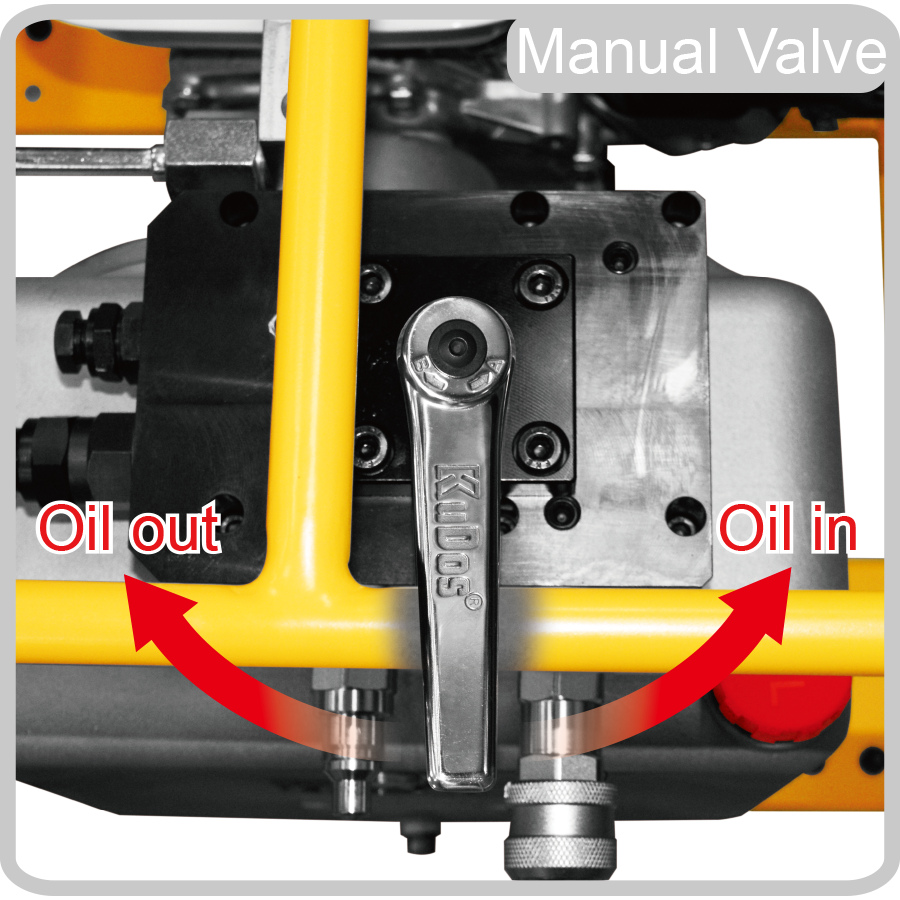

Equipped with a 4-way 3-position manual valve to prevent the electric control valve being locked and not able to perform retire because of high temperature.
Supplied with a rack with rollers.
High efficiency and fast working gasoline pump.
Capable to holding pressure after engine is off.
