Length : 667 mm
Weight : 8.4 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 163 cc
Max output : 6.23 tons / 55.4 kN
■ Cutting capacity :
Cu strands : 85 mm
Al strands : 85 mm
CCP cable : 85 mm
※Cutting of piano wire is prohibited.
■ Features :
Two stage pumping action for rapid blade advance.
180˚ rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.

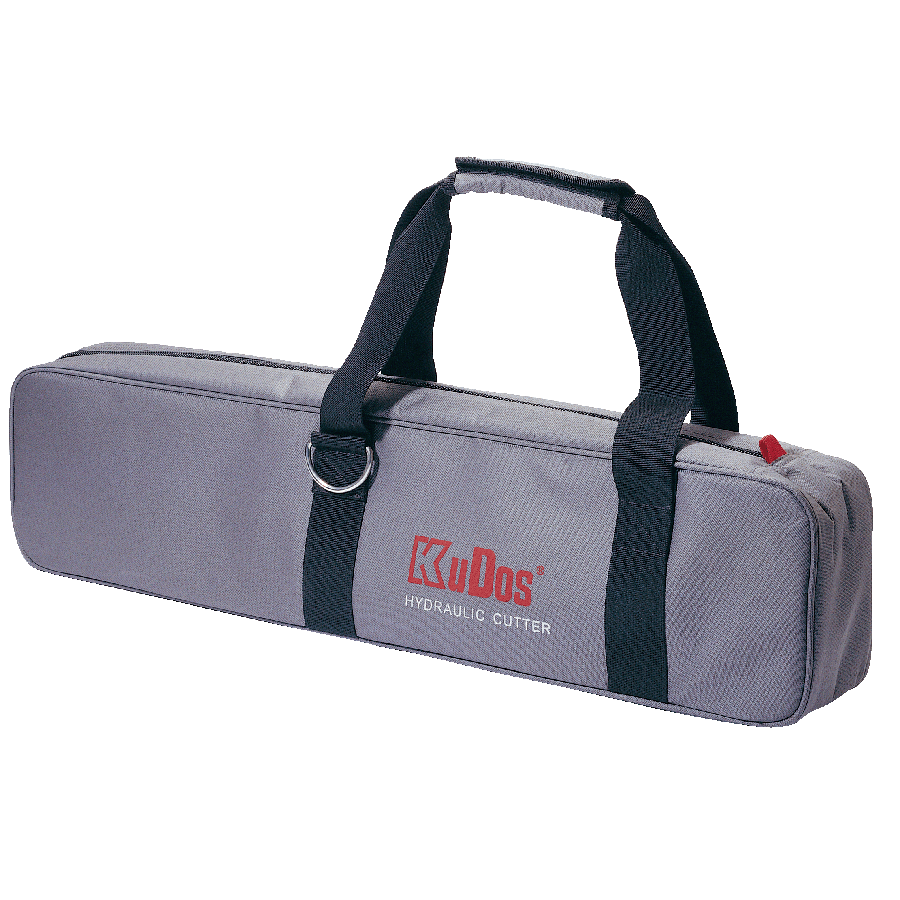

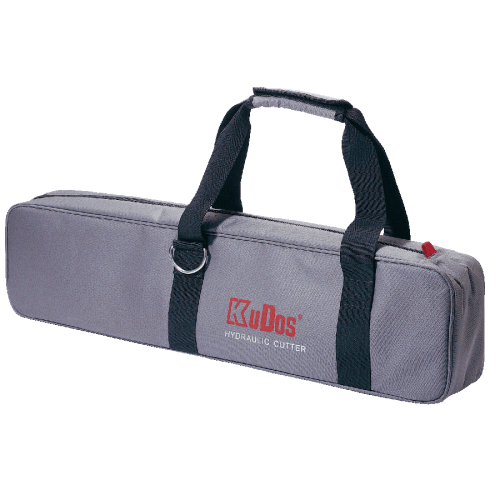

■ Accessories :
