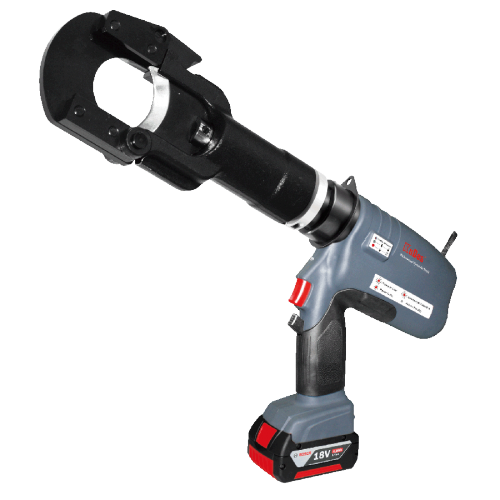

Detail
Height : 469 mm
Weight : 5.7 kgs (w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE) :
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60Hz
Input current : 21.75 VA
Reservoir capacity : 120 cc
■ Cutting capacity :
Max pressure : 700 bar
Oil required : 39 cc
Max output : 5.47 tons / 48.7 kN
Cu strands : 50 mm
Al strands : 50 mm
CCP cable : 50 mm
Maximum size : Ø51.5 mm
※Cutting of piano wire is prohibited.
