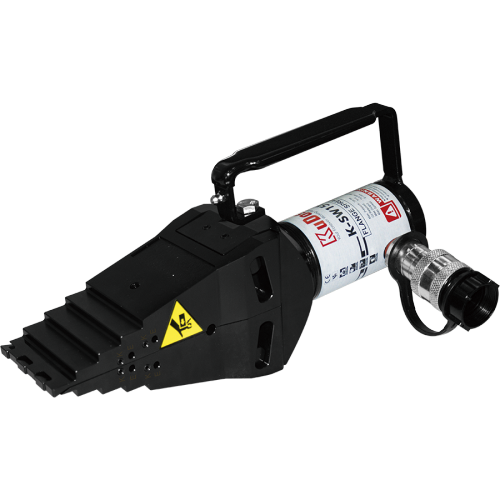

 Detail

Height: 288 mm

Weight: 7.5 kgs



Specifications:

Max. Pressure : 700 bar

Oil Required : 79 cc

Max Output : 15.60 tons / 138.9 kN



Spreader Capacity:

Tip Clearance : 33 mm

Max. Spread : 81 mm



Features:

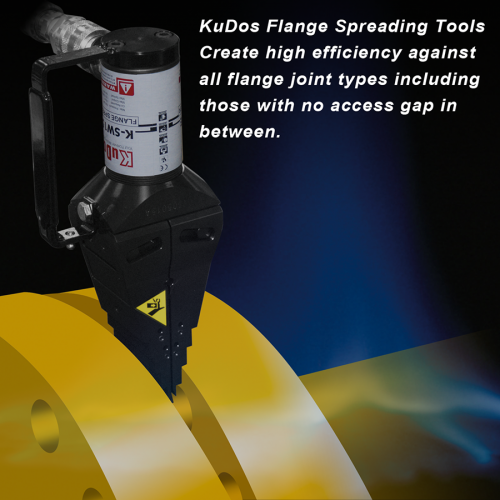

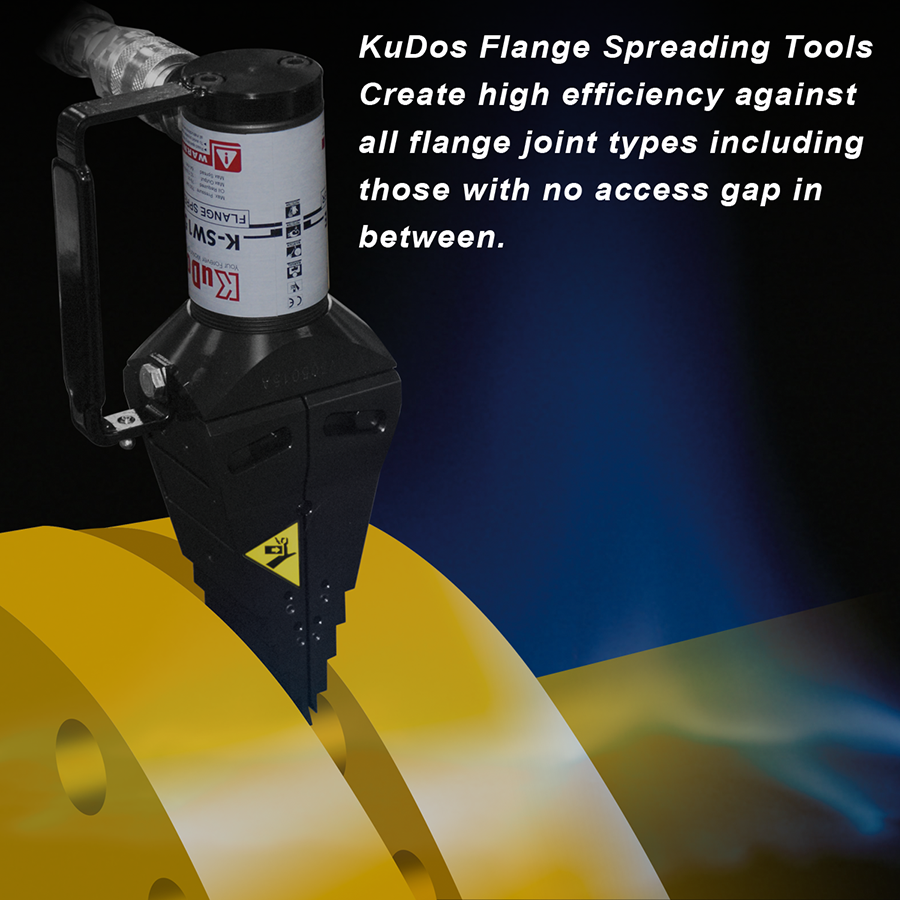

Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.

Unique interlocking wedge design: no first step bending and risk of slipping out of joint.

Requires very small access gap of only 6 mm (.24 in).

Few moving parts means durability and low maintenance.

Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).



Accessories:

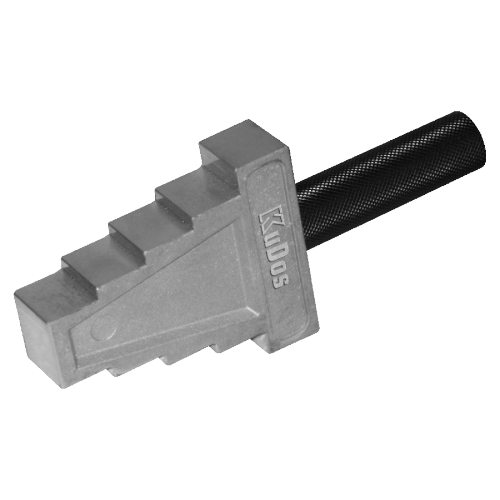

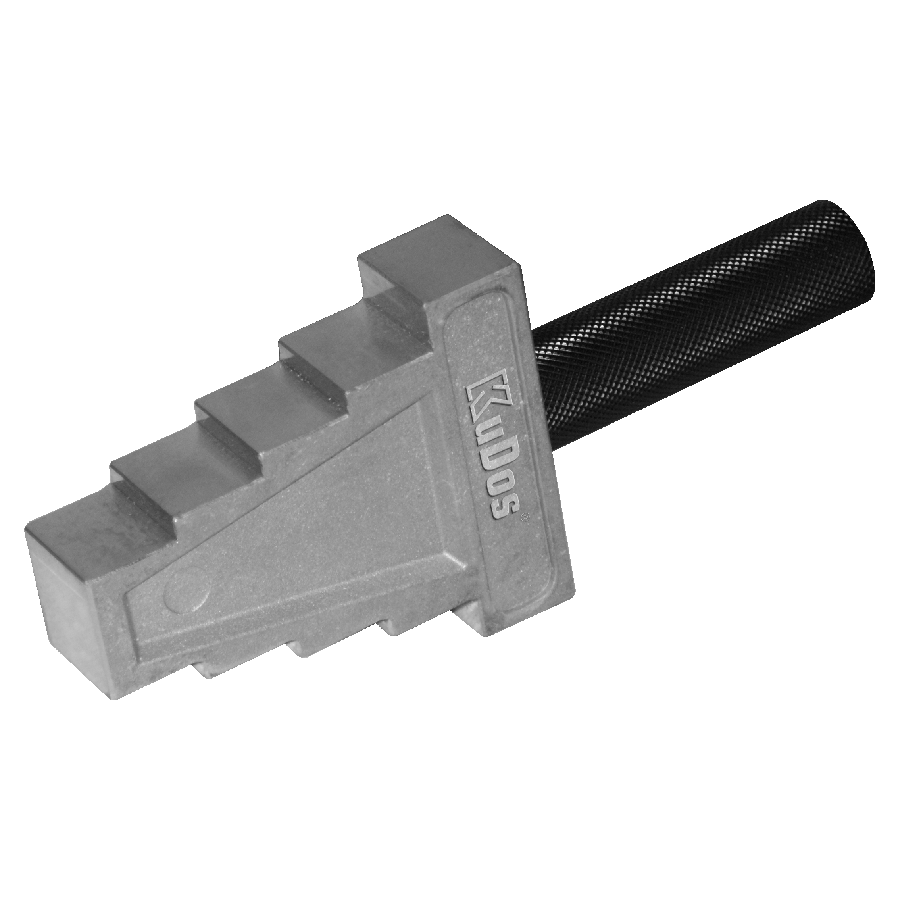

Safety Block

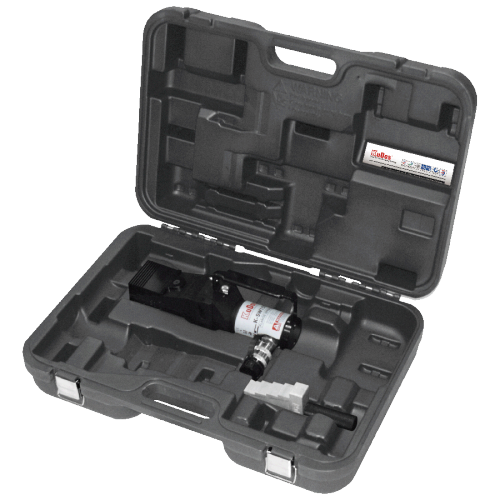

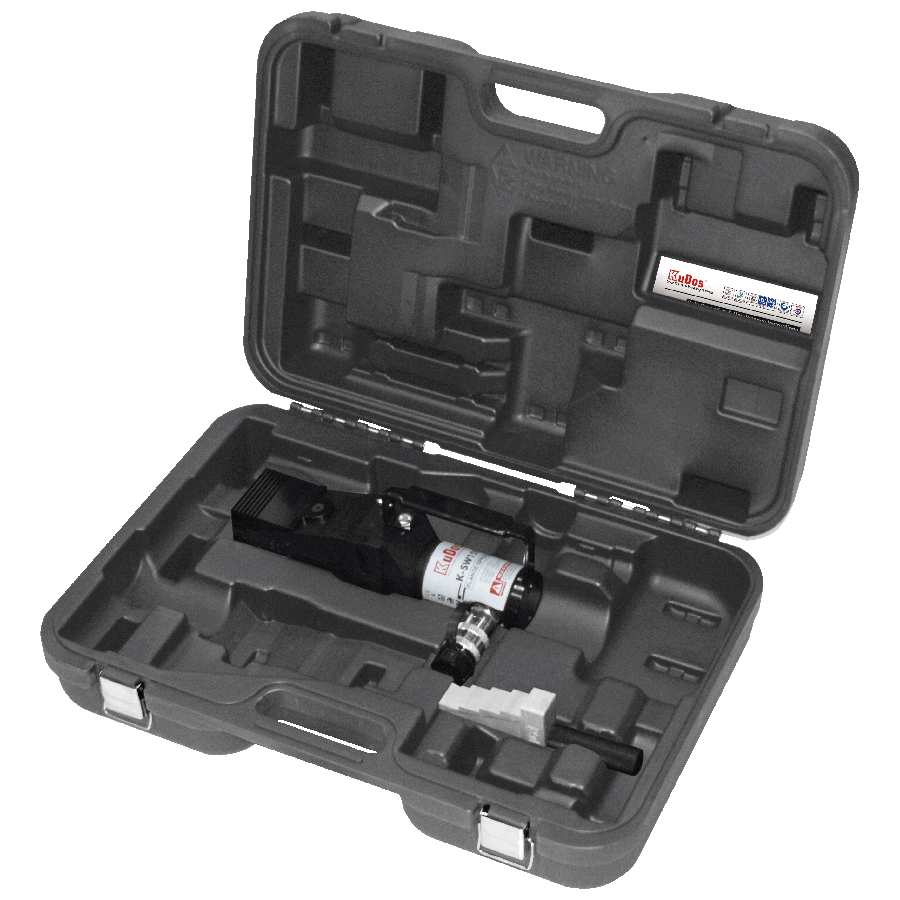

Plastic carrying case
(Case sold separately)
