 Detail

Height: 445 mm

Weight: 9.0 kgs



Specifications:

Max. Pressure : 700 bar

Oil Required : 79 cc

Max Output : 15.60 tons / 138.9 Kn



Spreader Capacity:

Tip Clearance : 32 mm

Max. Spread : 81 mm



Features:

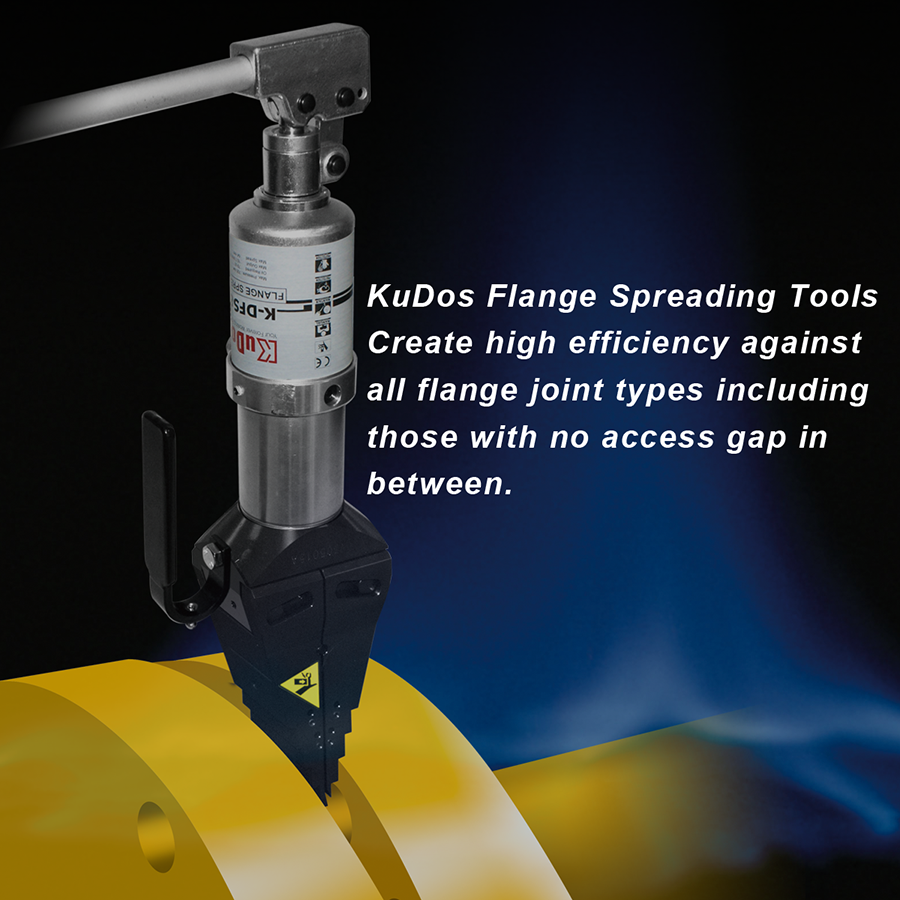

Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.

Unique interlocking wedge design: no first step bending and risk of slipping out of joint.

Requires very small access gap of only 6 mm (.24 in).

Few moving parts means durability and low maintenance.



Accessories:

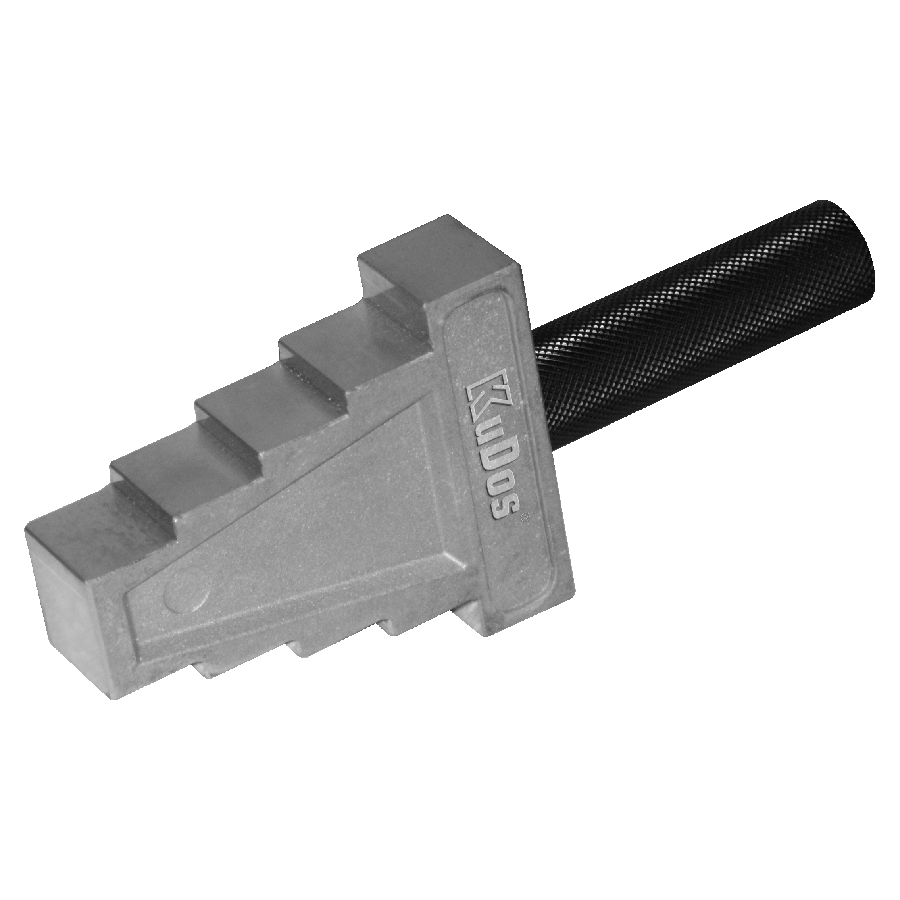

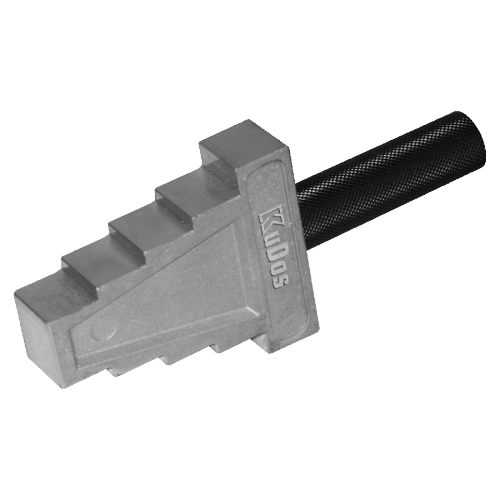

Safety Block

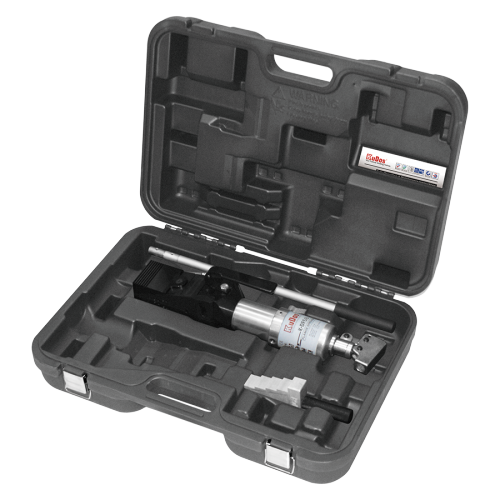

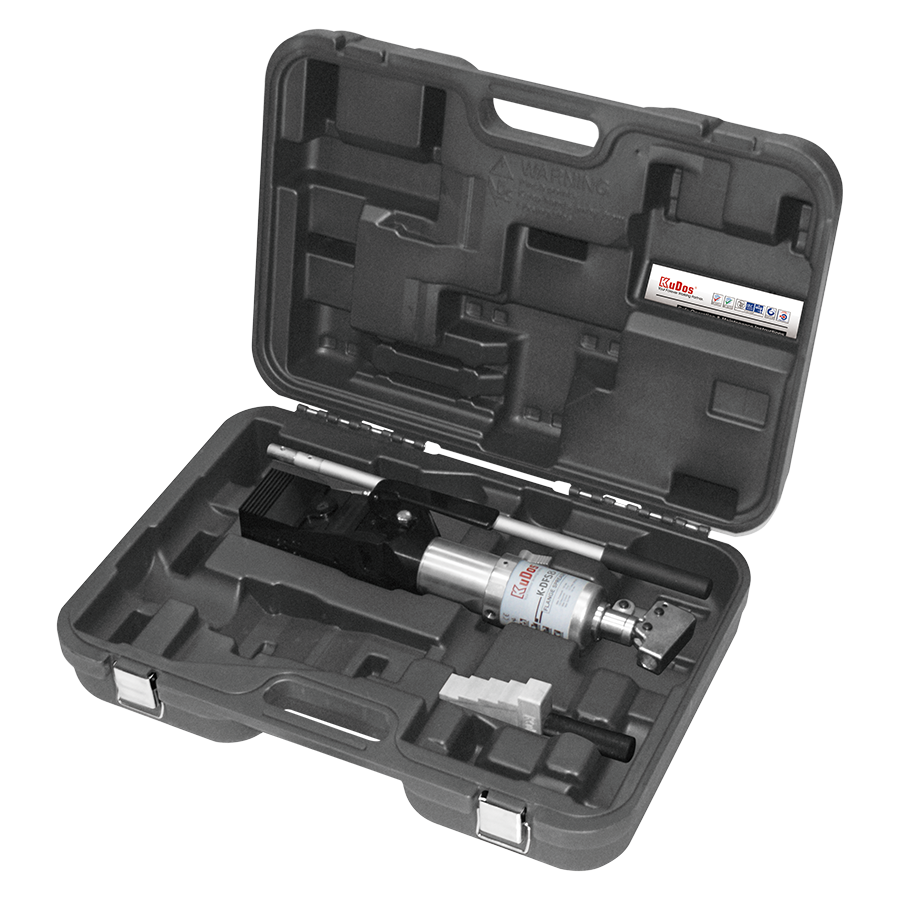

Plastic carrying case
