Length : 364 mm
Weight : 34.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 315 cc
Max. Output : 100 tons / 980 kN
Ram Stroke : 22 mm
■ Crimping Capacity :
Crimping range :
Copper : up to 64 mm O.D.sleeve
Aluminum : up to 71 mm O.D.sleeve
Steel : up to 32 mm O.D.sleeve
※Double-acting hydraulic pump required
※Dies are manufactured on request only
■ Features :
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Functional handles for easy carrying and repositioning.
Removable die cap for easy connector positioning.

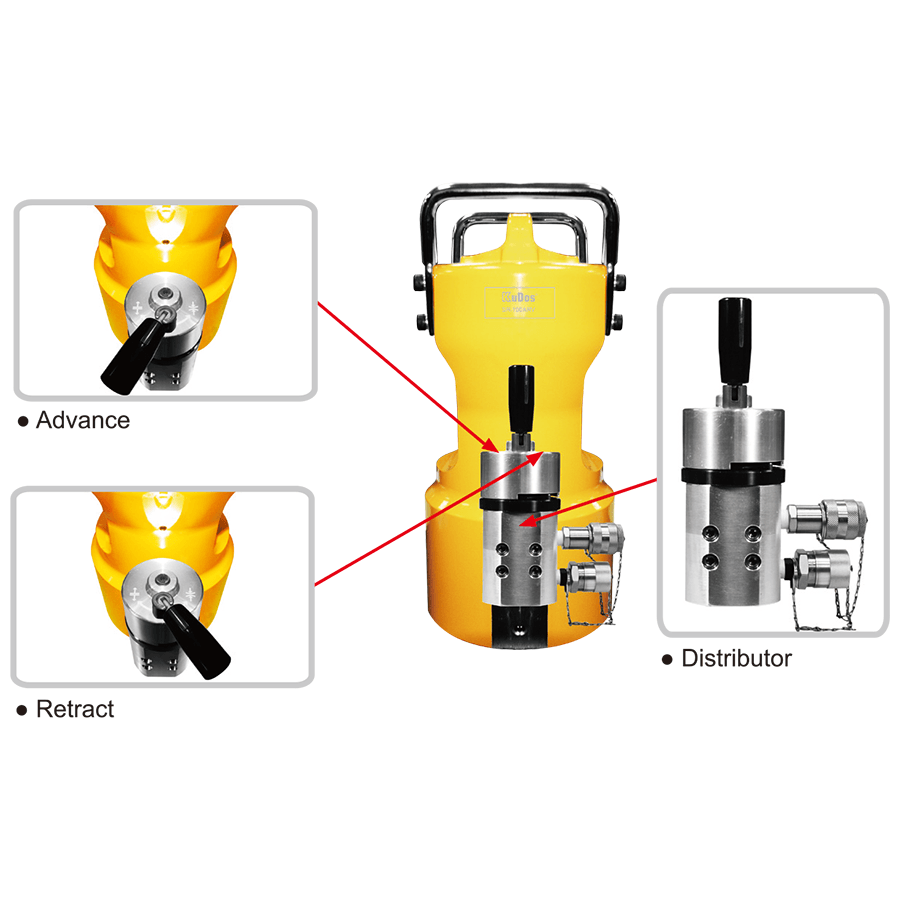

Ram retracts hydraulically ; the ram retracting time is 1/3 of spring return.

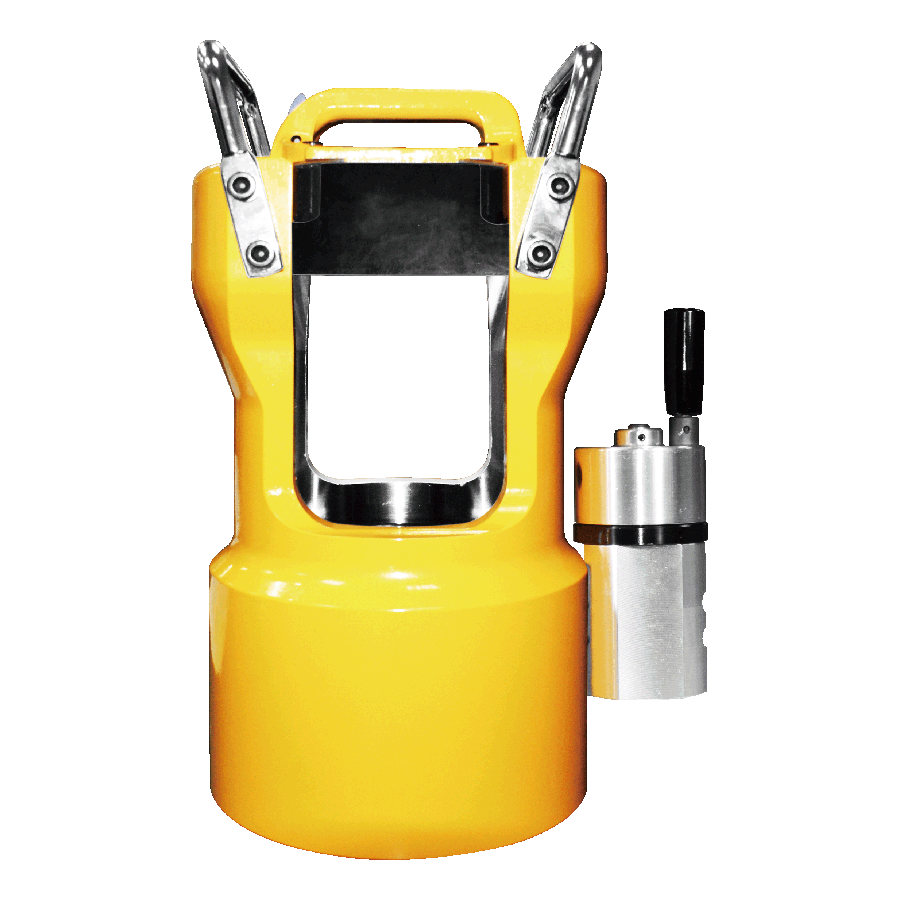

Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.
