Length : 635 mm
Weight : 6.7 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 147 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw opening : 40 mm
■ Crimping Capacity :
Max. Compression : 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.
※Dies sold separately (CU 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400)

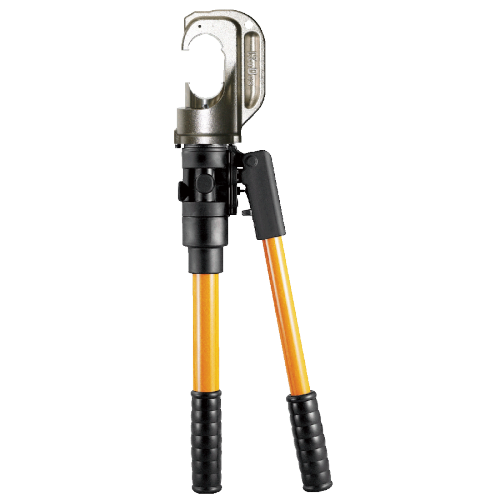

■ Features :
Fiberglass handles are durable and light weight.
Pressure relief valve for overload protection.
Automatic low / high-pressure conversion with rapid/slow operating motion.
180° rotating head for convenient operation.
External adjustable relief valve.
Two-stage hydraulic system reduces the number of pumps required.

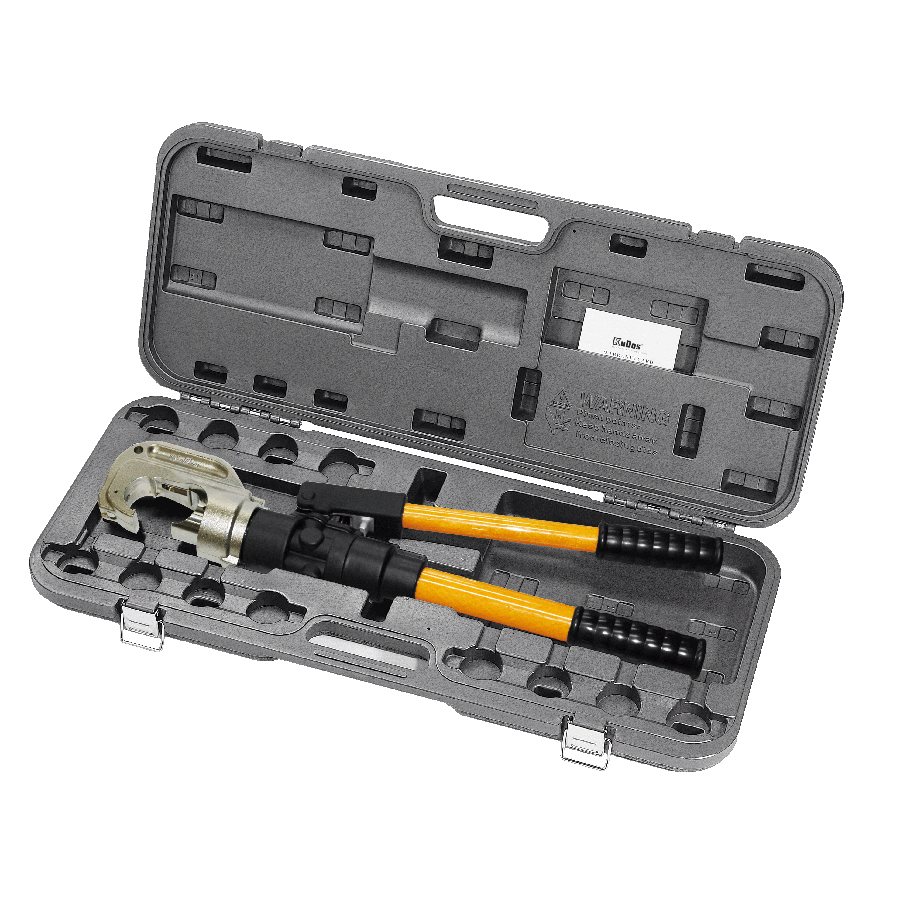

■ Accessories :
Plastic carrying case
