 Detail

Height : 598 mm
Weight : 6.8 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 48 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw Opening : 26 mm

■ Crimping Capacity :
Max. Compression : 400mm²  copper / aluminum lugs.
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.

※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)

■ Features :
330° rotating head for convenient operation.
Fiberglass handles are durable and light weight.
External adjustable relief valve.
Pressure relief valve for overload protection.
Automatic low/high-pressure conversion with rapid/slow operating motion.
Two-stage hydraulic system reduces the number of pumps required.

■ Accessories :

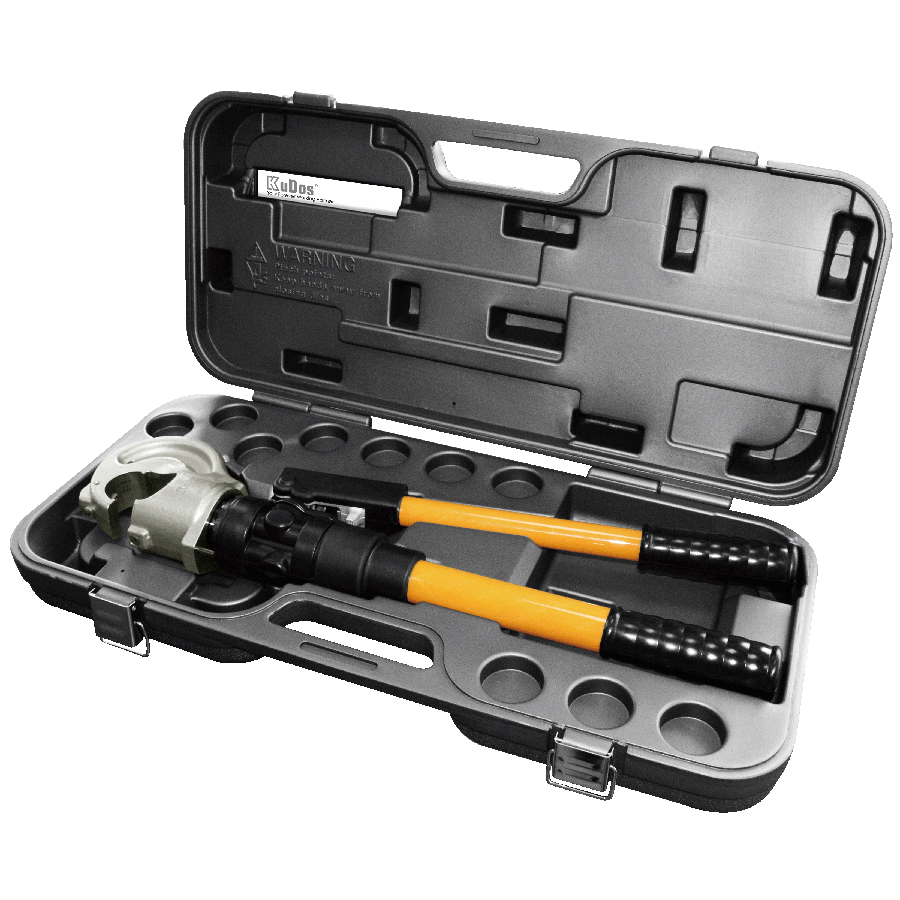

Plastic carrying case
