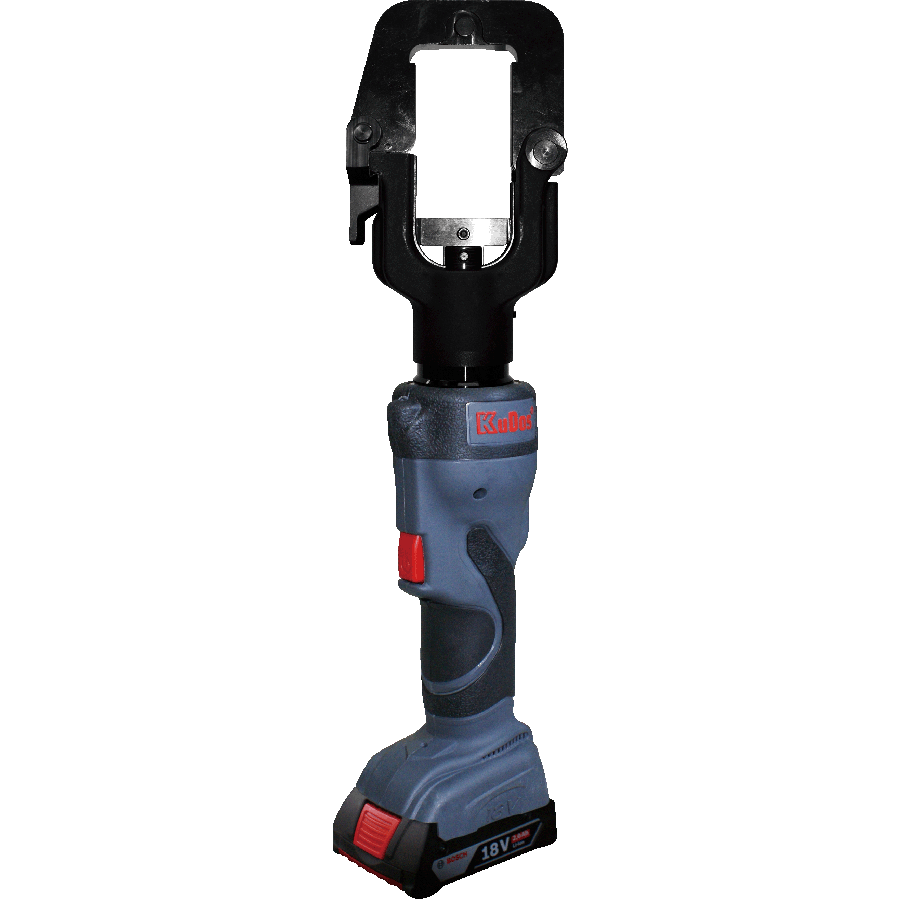

Detail
Length : 410 mm
Weight : 3.5 kgs(w/o battery)
■ Specifications :
Drive unit : 18V DC motor
Charger (GS/CE):
Input voltage : 110V single phase AC
Input voltage : 230V single phase AC
Input frequency : 50~60 Hz
Reservoir capacity : 48 cc
■ Crimping Capacity :
Max pressure : 700 bar
Max output : 6.7 tons / 66 kN
■ Model No. K-ED10 (Related heads)

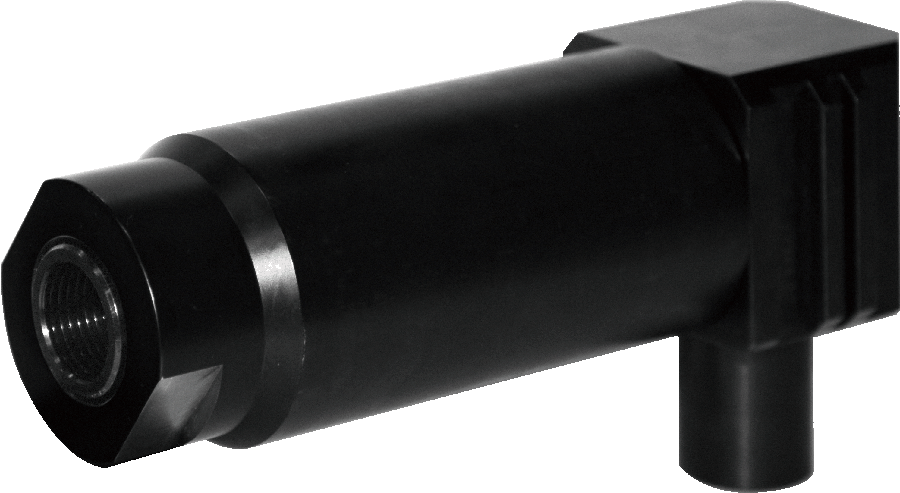

| KED10-PM Hole Punch Adapter |
.png) |
Hole punch adapter Ram stroke:25 mm Max output:6.7 tons/66kN Draw stud (3/4") |

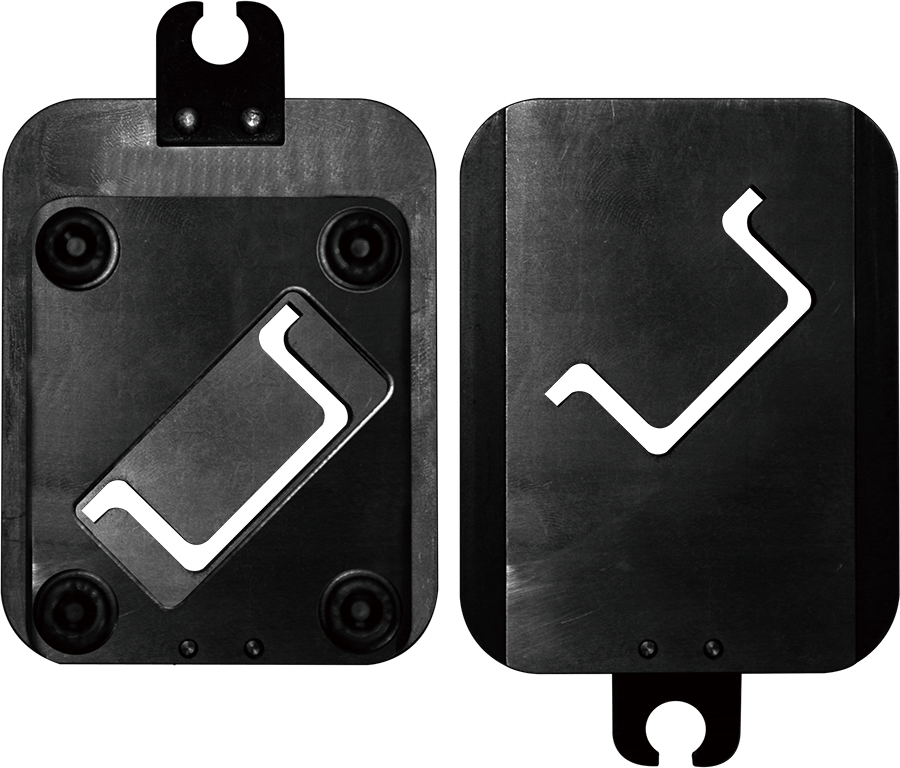

| KED10-RC Cutting dies for DIN rails |
.png) |
Head in 2 sizes H8 (35 x 7.5 mm) H15 (35 x 15 mm) |

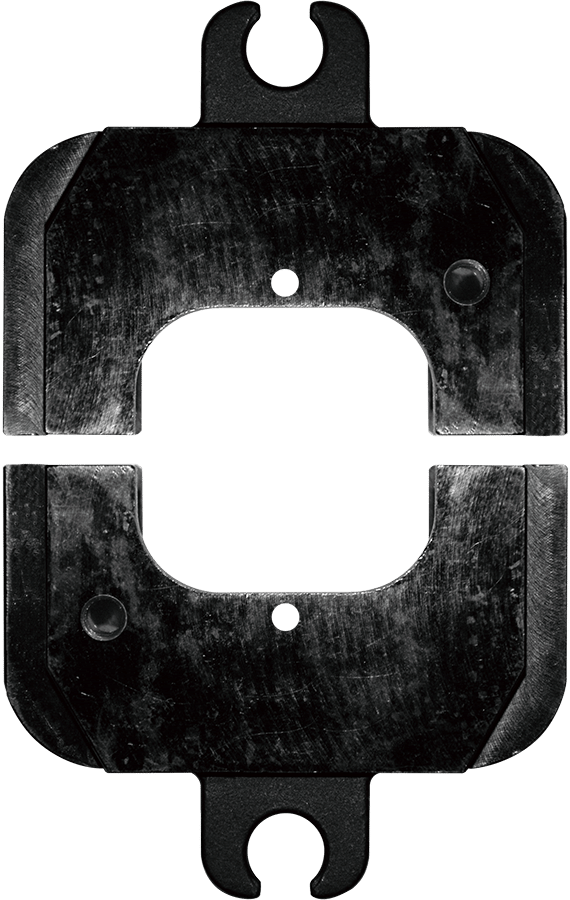

| KED10-CR-5 Adapter for crimping dies |
(1).png) |
Dies sold separately (AHE 1016/2535/5070/95120/150/185/240) |
| KED10-CR-6 Adapter for crimping dies |
.png) |
Dies sold separately (T16/25/35/50/70/95/120/150/185/240) |

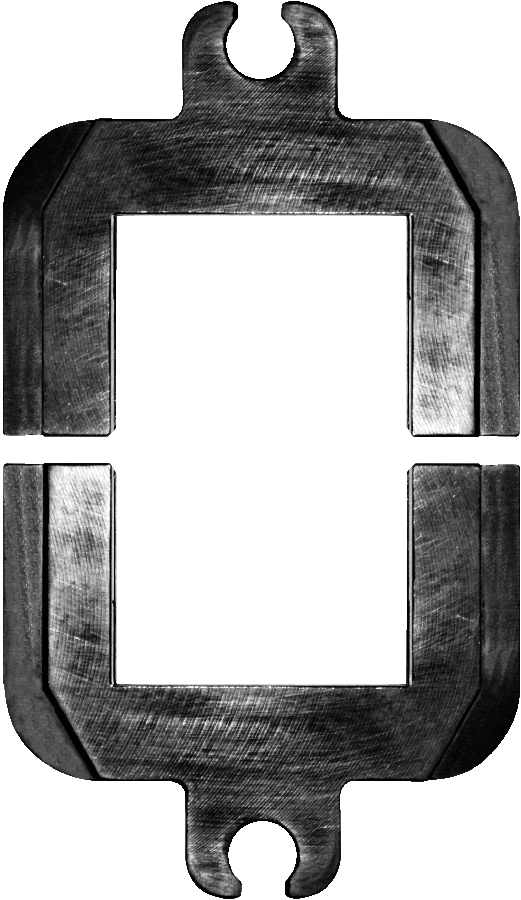

| KED10-CR-9 Adapter for crimping dies |
.png) |
Dies sold separately (UCP240-14/UCP240-15/UCP240-16) |

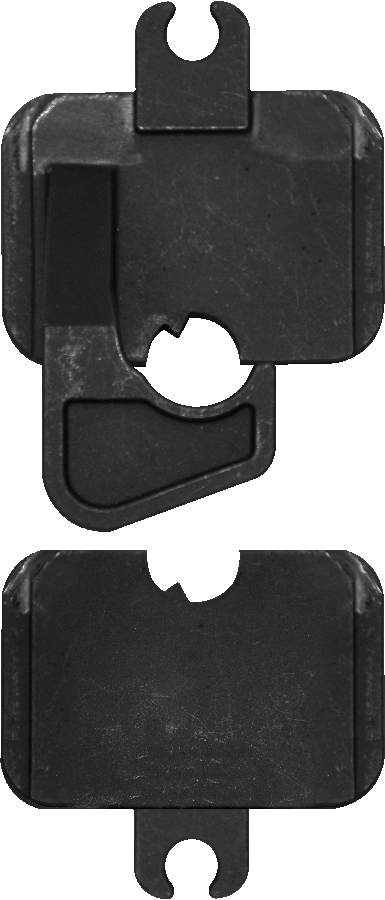

| KED10-BC Railway Cutter For BC - Contact Wires |
.png) |
Head in 4 sizes 85mm²/110mm²/120mm²/150mm² |

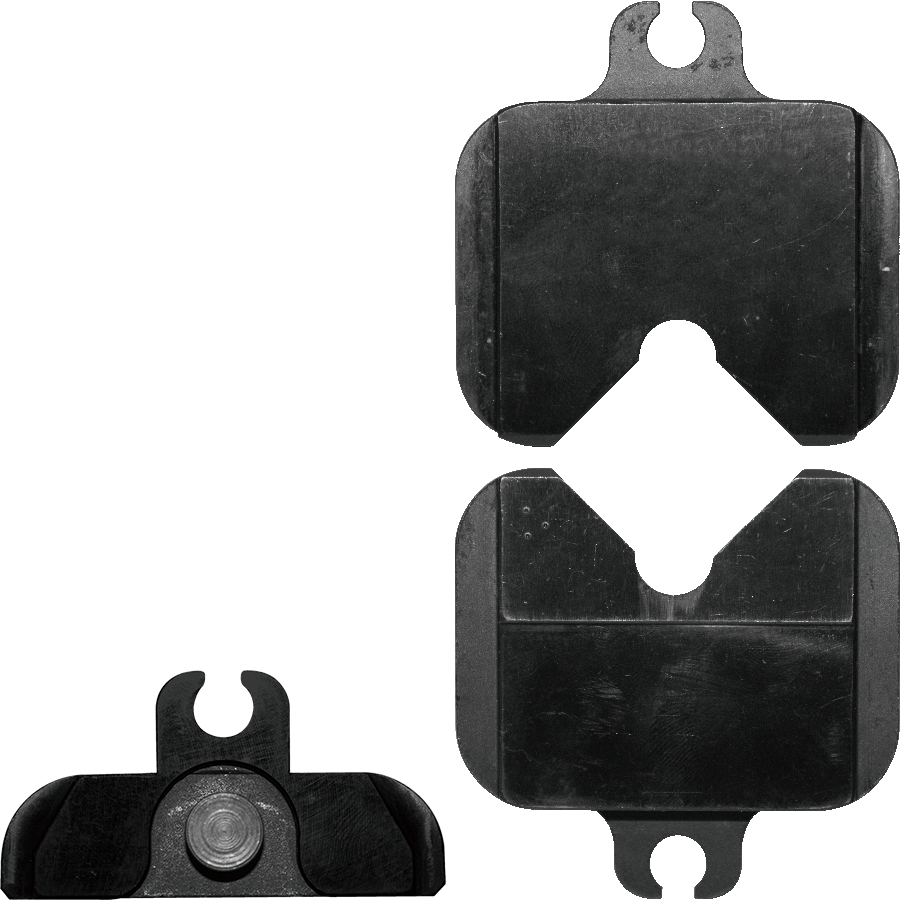

| KED10-TR Cutting dies for threaded rods KED-10-FCB |
.png) |
Head in 9 types:
M5 x 0.8
M6 x 1.0
M8 x 1.25
M10 x 1.5
M12 x 1.5
1/4”-20 3/8”-16
1/2”-13 1/2”-12
|

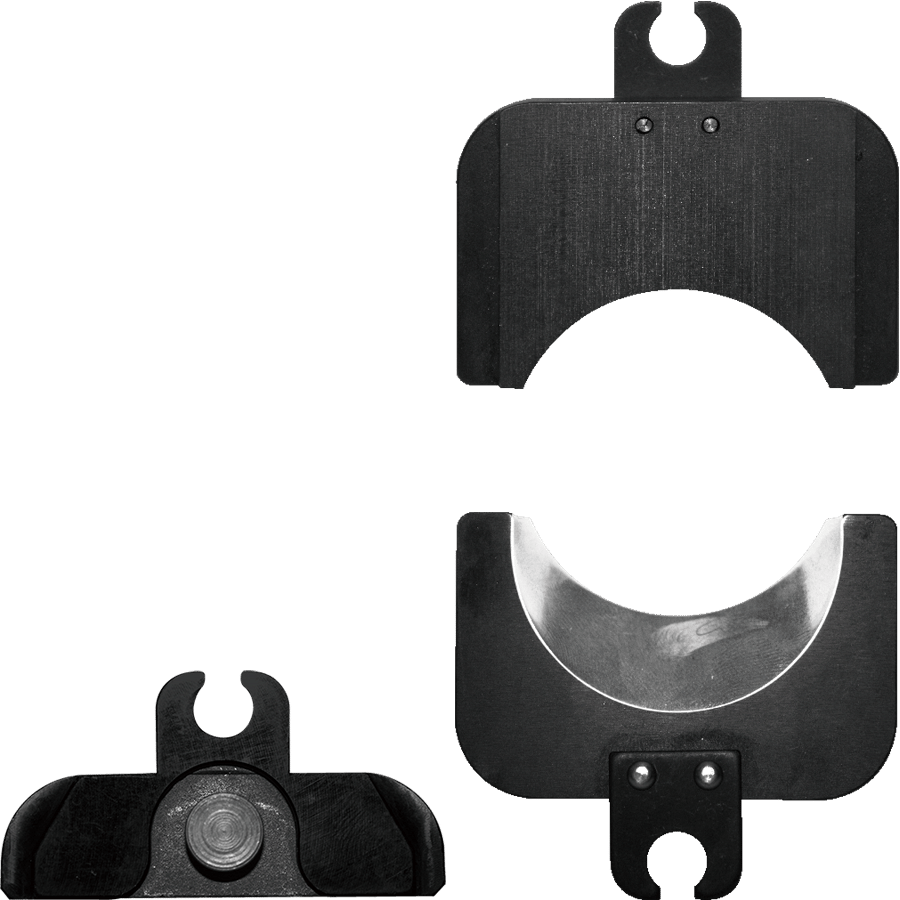

| KED10-NYY Cutting dies for cutting multi-stranded Cu and Al conductor without armouring KED-10-FCB |
.png) |
In conjunction with K-ED10 is max. 25mm dia |

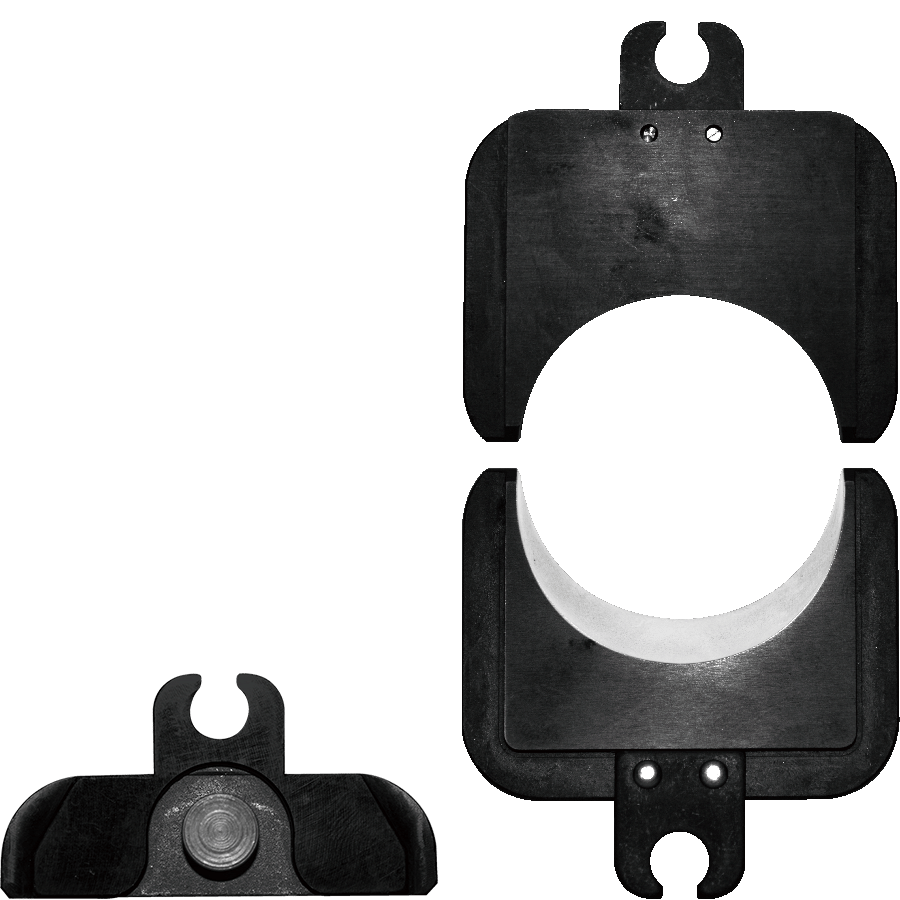

| KED10-ACSR ACSR cutting die for Al/Cu conductors KED-10-FCB |
.png) |
In conjunction with K-ED10 is max. 25mm dia For ACSR conductors to EN DIN 50128 and high-tensile steel cables |
