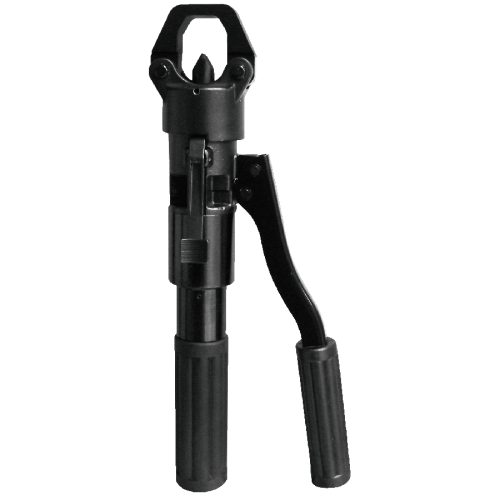

PF-1319

 Detail

Length : 333 mm
Weight : 2.1 kgs

■ Specifications :
Max. Pressure : 600 bar
Oil Required : 17 cc
Max. Output : 7.45 ton / 66.3 Kn
Bolting Range : M6~M12
                          (Hex. Nut range : 10-19 mm)

■ Bolting Capacity :
Jaw opening : 24.3 mm
Ram Stroke : 17.3 mm

■ Features :
Light weight, compact and slim design.
180° degree rotating head for convenient operation.
Single stage pumping.
Relief valve.

■ Accessories :

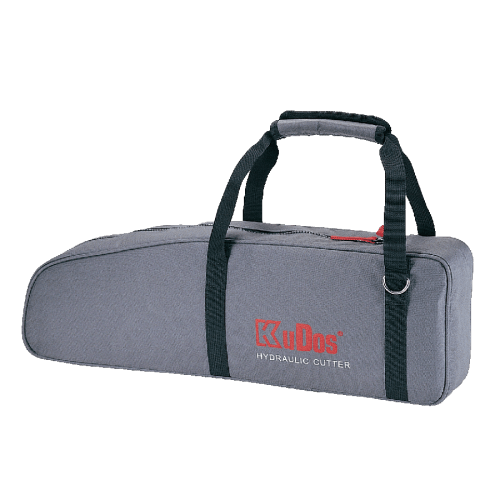

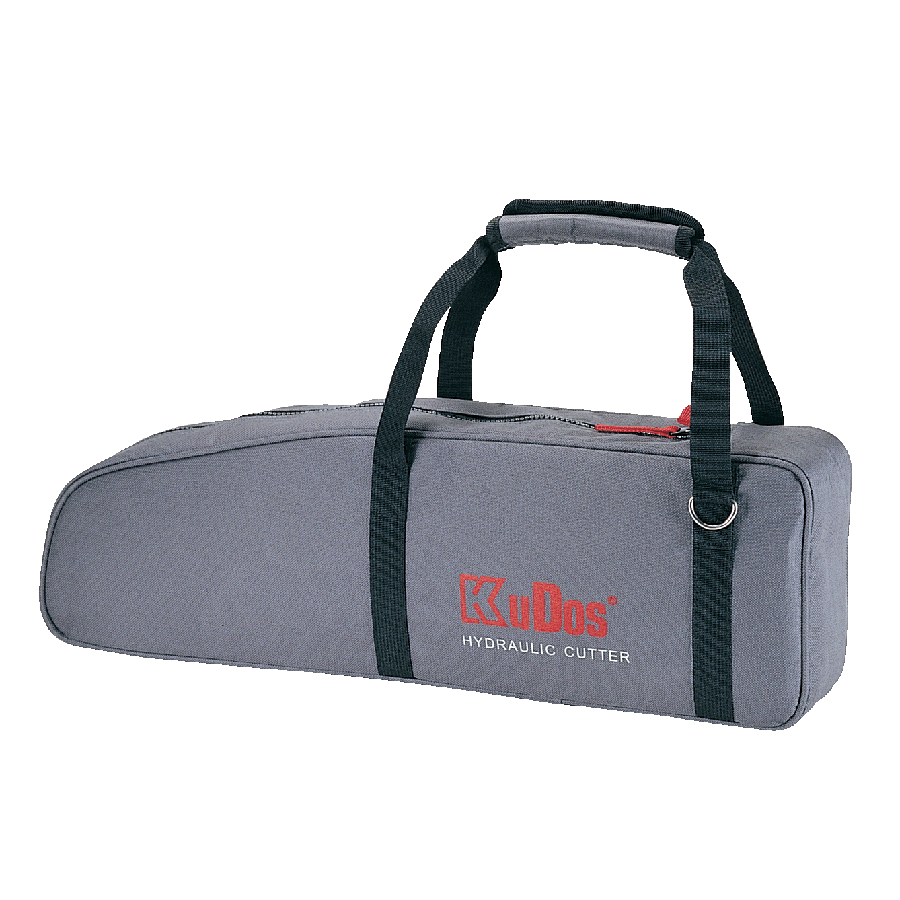

Carrying Bag

※Caution :
Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.
