PN-052/PN-052M

Inquiry Number

 Detail

Hight : 125 mm
Weight : 7.6 kgs

■ Punch driver :
Ram Stroke : 25 mm
Oil Required : 47 cc
Max. Output : 14.01 tons / 124.6 kN

■ Punching capacity :
Max. thickness
Stainless Steel : 1.6 mm
Mild Steel : 3.2 mm
4 inch diameter hole on 3.2 mm thickness mild steel
Single action cylinder with spring release

■ Features :
Suitable to punch holes in electrical panels, switchboards and others.
Fast, easy and simple to operate.
Compact design makes this a perfect choice for use on construction sites and maintenance jobs.
Powerful 12.7 ton hydraulic ram.

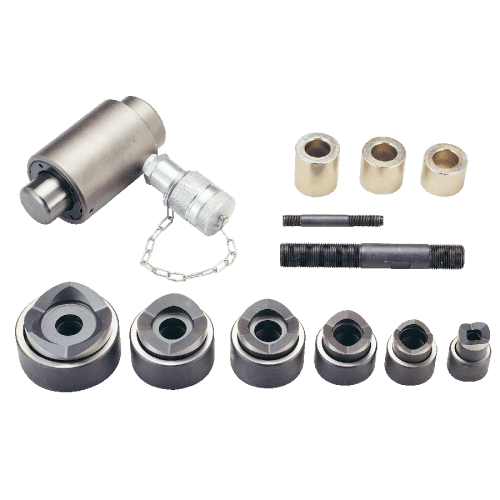

■ Accessories :

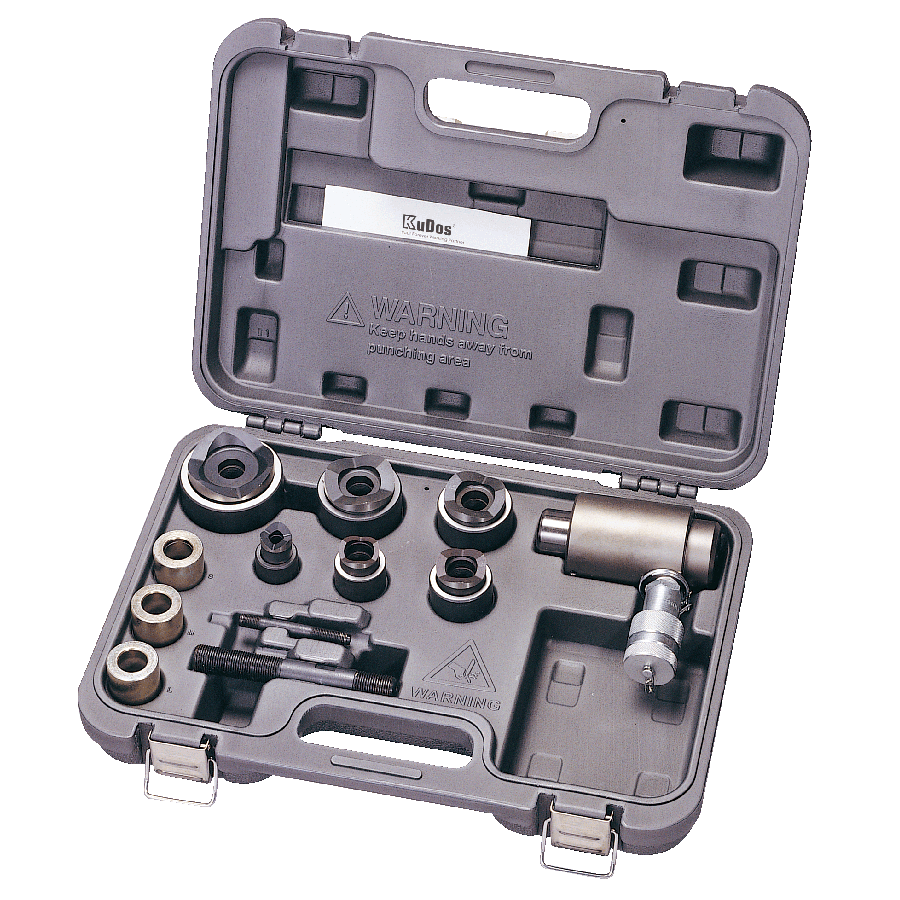

■ PN-052
PDV-10, Draw stud (3/4”, 3/8”), Spacer(S,M,L), Plastic case
6 Punch die sets: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

■ PN-052M
PDV-10, Draw stud(3/4”, 3/8”), Spacer(S,M,L), Plastic case
6 Punch die sets : 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm
