Length : 641 mm
Weight : 7.6 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 80 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw opening : 44 mm
■ Crimping Capacity :
Max. Compression : 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.
※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)
■ Features :
Fiberglass handles are durable and light weight.
Pressure relief valve for overload protection.
Automatic low/high-pressure conversion with rapid/slow operating motion.
180° rotating head for convenient operation.
External adjustable relief valve.
Two-stage hydraulic system reduces the number of pumps required.
■ Accessories :

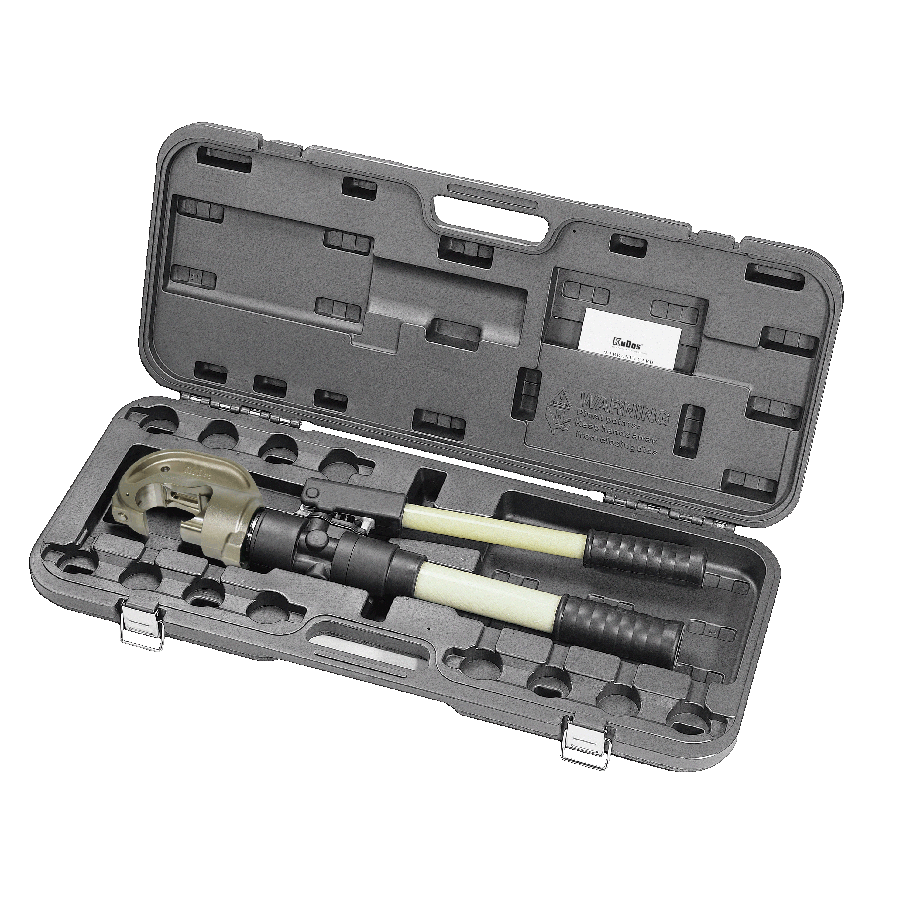

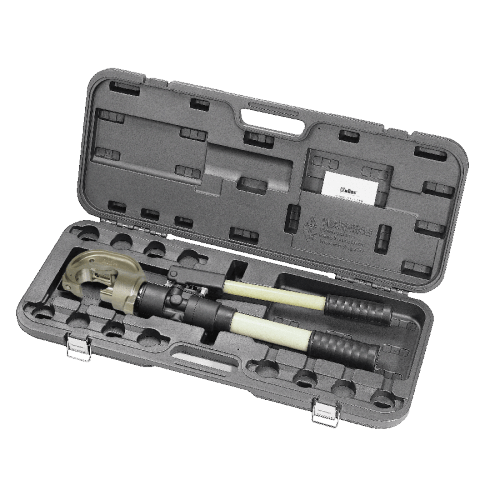

Plastic carrying case
