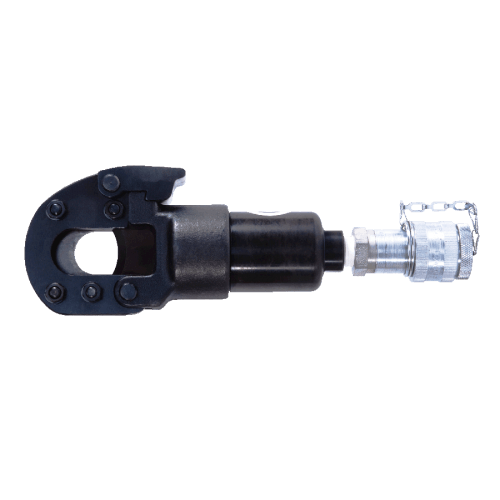

 Detail

Length : 240 mm
Weight : 2.0 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 27 cc
Max output : 7.45 tons / 66.3 kN

■ Cutting capacity :
Wire rope 6x7 : 24 mm
Wire rope 6x12 : 24 mm
Wire rope 6x19 : 24 mm
Soft copper bar : 23 mm
Soft aluminum bar : 24 mm
Soft steel bar : 16 mm
Cu strands : 24 mm
Al strands : 24 mm
ACSR : 24 mm

※Note : Tensile strength (daN/mm² ≦ 180)

※Cutting of piano wire is prohibited.

■ Features :
Superior guillotine type cutting for less jamming than shear type cutters.
Single stage pumping action.
All blades are easily replaceable.
Flip-top latch for easy insertion of cutting material.
Single stage pump action with spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.

■ Accessories :

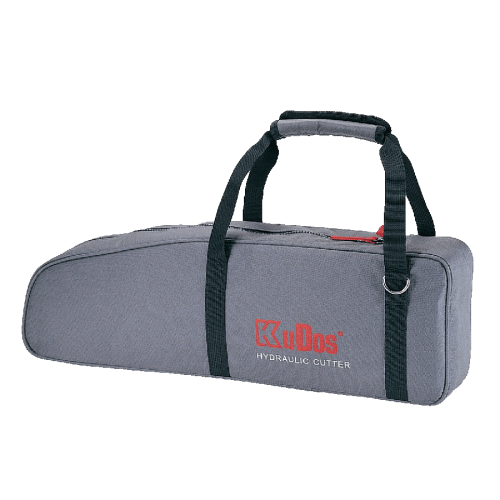

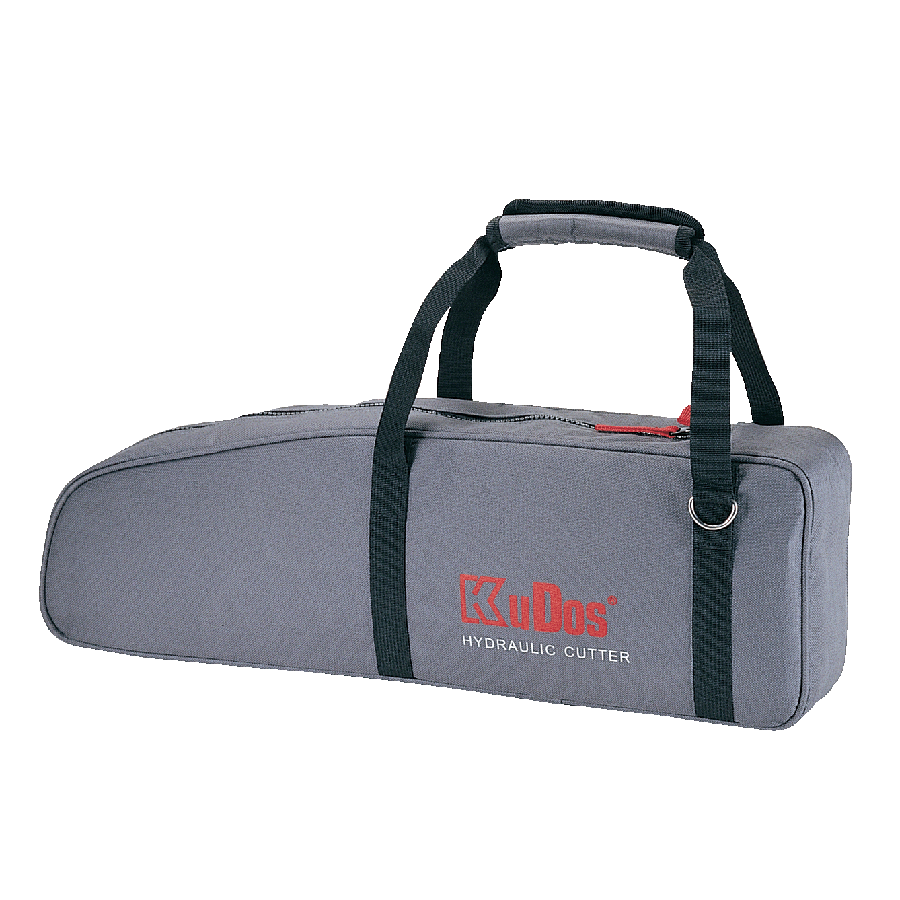

Carrying bag
