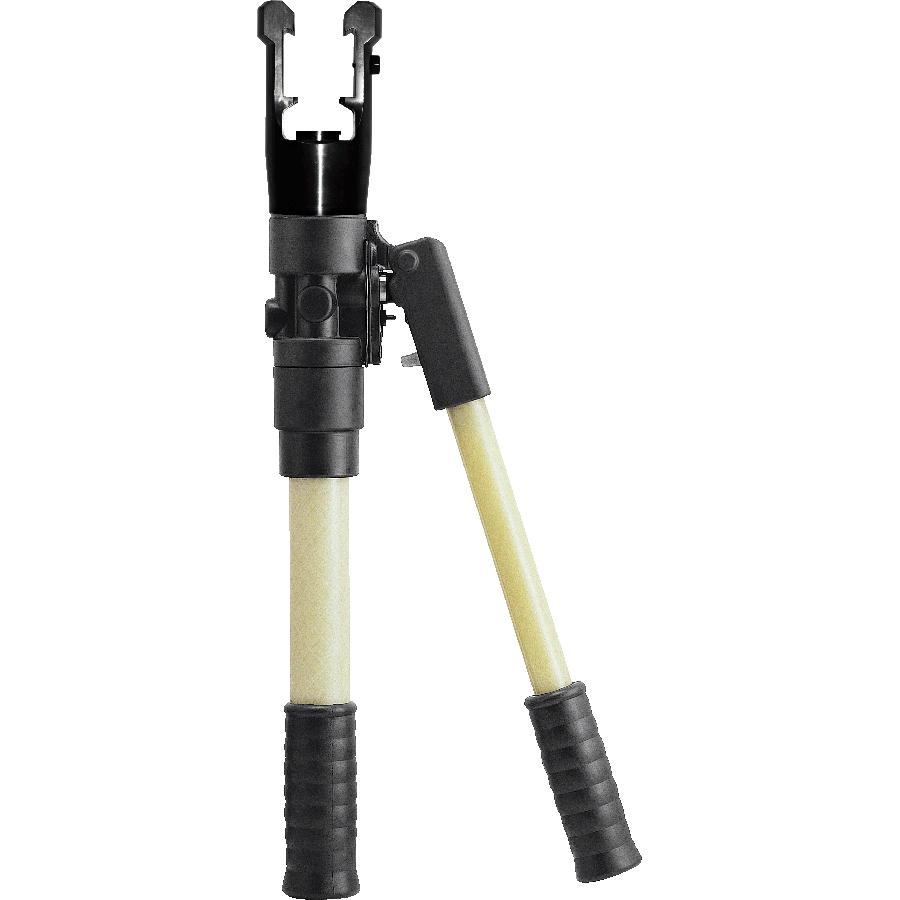

 Detail

Height: 600 mm / Weight: 5.3 kgs

Specifications
Max. Pressure: 700 bar
Oil Required: 48 cc
Max Output: 12.7 tons / 125 kN
Max. Opening: 26 mm

Crimping Capacity
U-Type Head
Crimping force: 12.7 tons / 125 kN
Main Applications:
Cu conductors: 400 mm²
AI conductors: L 300 mm²
C sleeves connector: 120 mm²

Features
Fiberglass handles are durable and light wight.
Pressure relief valve for overload protection.
Automatic low/high-pressure conversion with rapid/slow operating motion.
350° rotating head for convenient operation.
External adjustable relief valve.
Two-stage hydraulic system reduces the number of pumps required.

Accessories

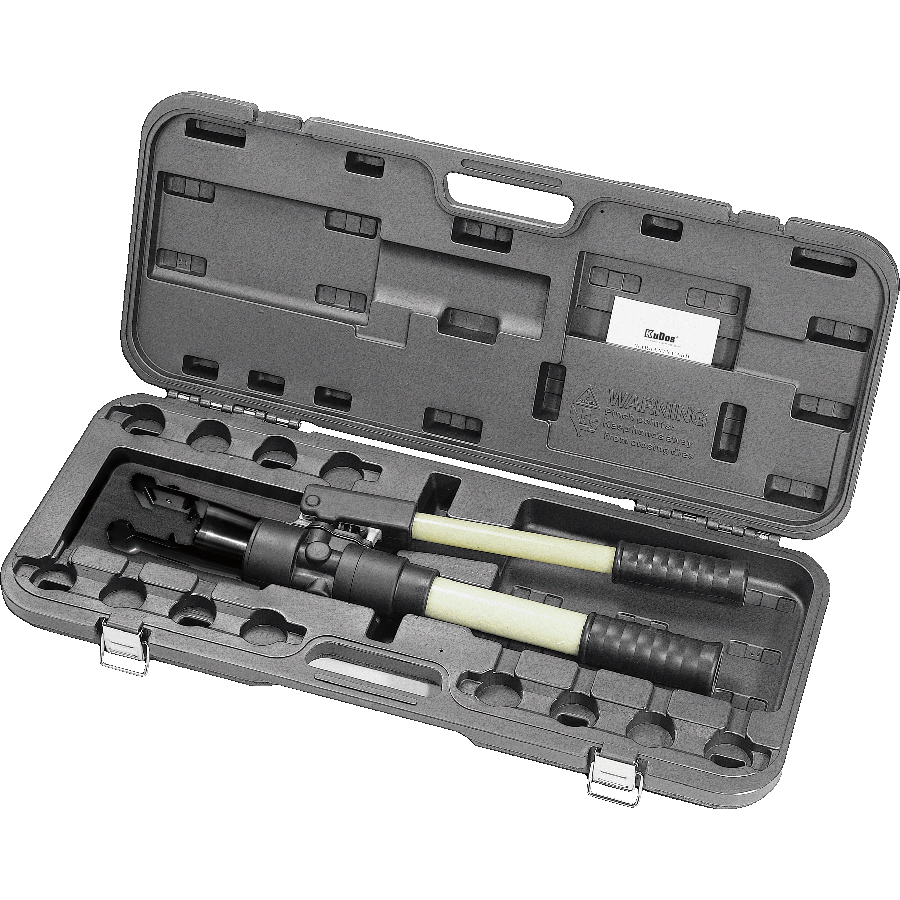

Plastic carrying case
