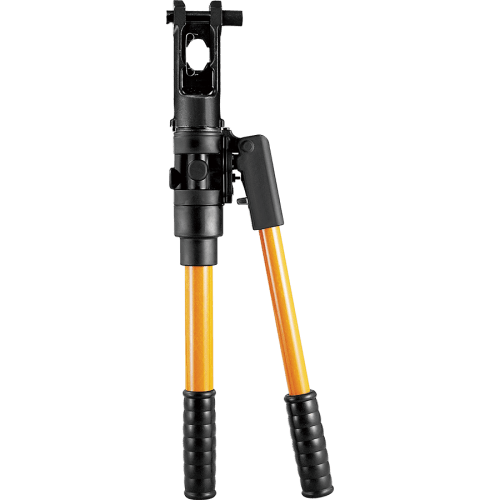

Length : 630 mm
Weight : 4.6 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 42 cc
Max. Output : 9.73 tons / 86.6 kN
Ram Stroke : 20.1 mm
■ Crimping Capacity :
Accepts BEKU type dies
Hex Crimping : 10-240 mm²
Cu sleeves & lugs NFC 20.130 : 10to 240 mm²
Cu or AI bare or insulated sleeve : E54 to E230
Cu or AI sleeves & lugs DIN 48083 : KZ6 to KZ25
Pre-rounding : 35 to 240 mm²
※Dies sold separately
■ Features :
Light weight, compact and slim design.
180° rotating head for convenient operation.
Pressure relief valve for overload protection.
Automatic low/high-pressure conversion with rapid/slow operating motion.
Two-stage hydraulic system reduces the number of pumps required.
Small handle spread for close quarter applications.
■ Accessories :

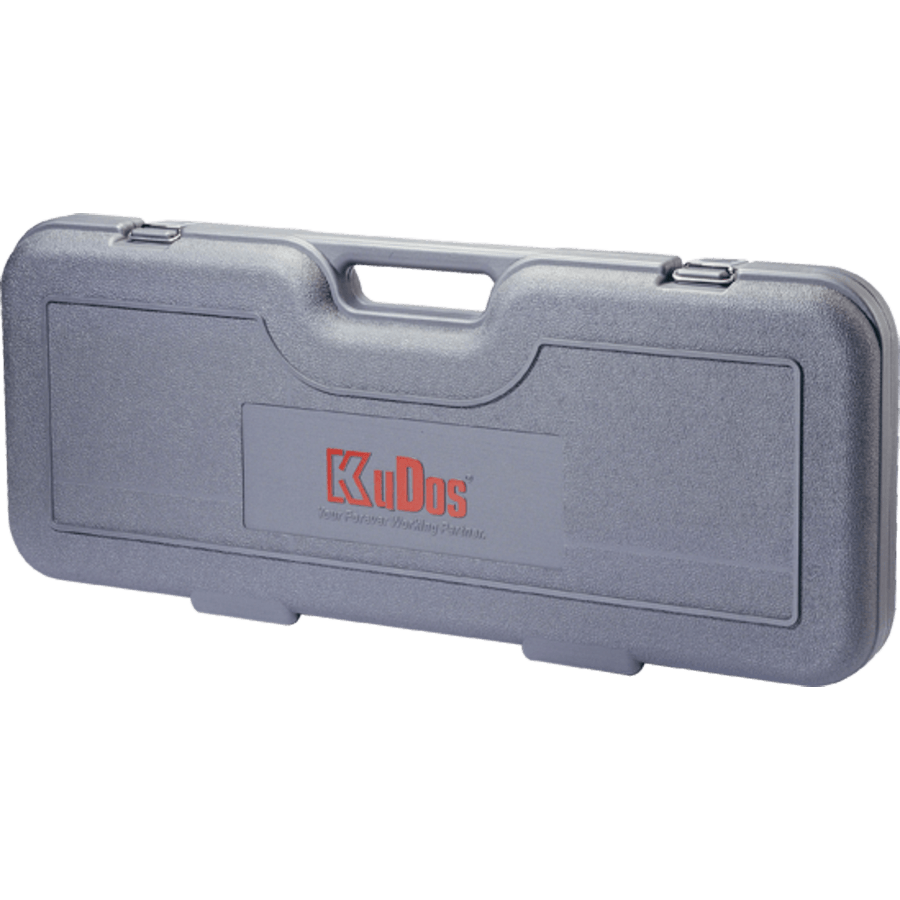

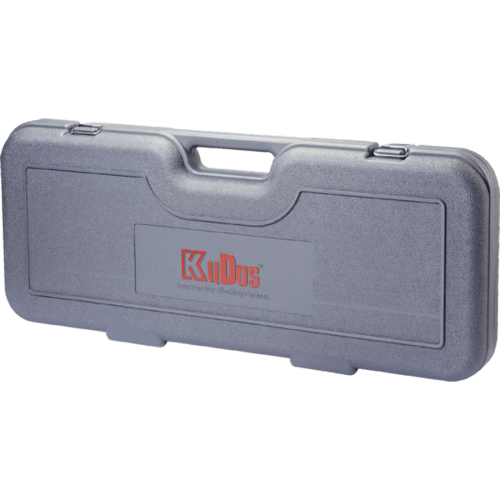

Plastic carrying case
