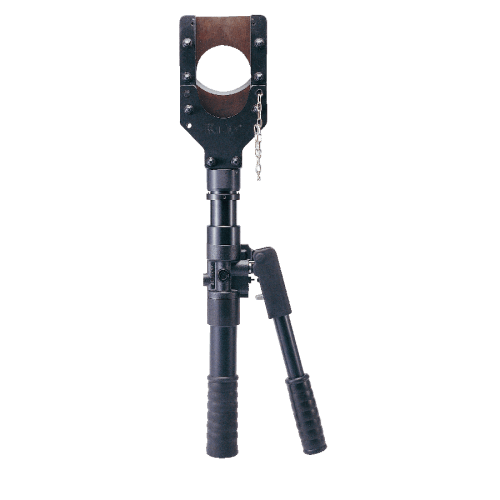

 Detail

Length : 716 mm
Weight : 9.6 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 66 cc
Max output : 5.47 tons / 48.7 kN

■ Cutting capacity :
Cu strands : 28 mm
Al strands : 38 mm
CCP cable : 85 mm
Underground cable : 50mm (except armoured cable)

※Cutting of piano wire is prohibited.

■ Features :
Lock pin type cutting head.
Two stage pumping action for rapid blade advance.
180˚ rotating head for convenient operation.
Superior guillotine type cutting for less jamming than shear type cutters.
All blades are easily replaceable.
Spring return.
No set-up time required.
Lightweight, self-contained tool, can be used anywhere.

■ Accessories :

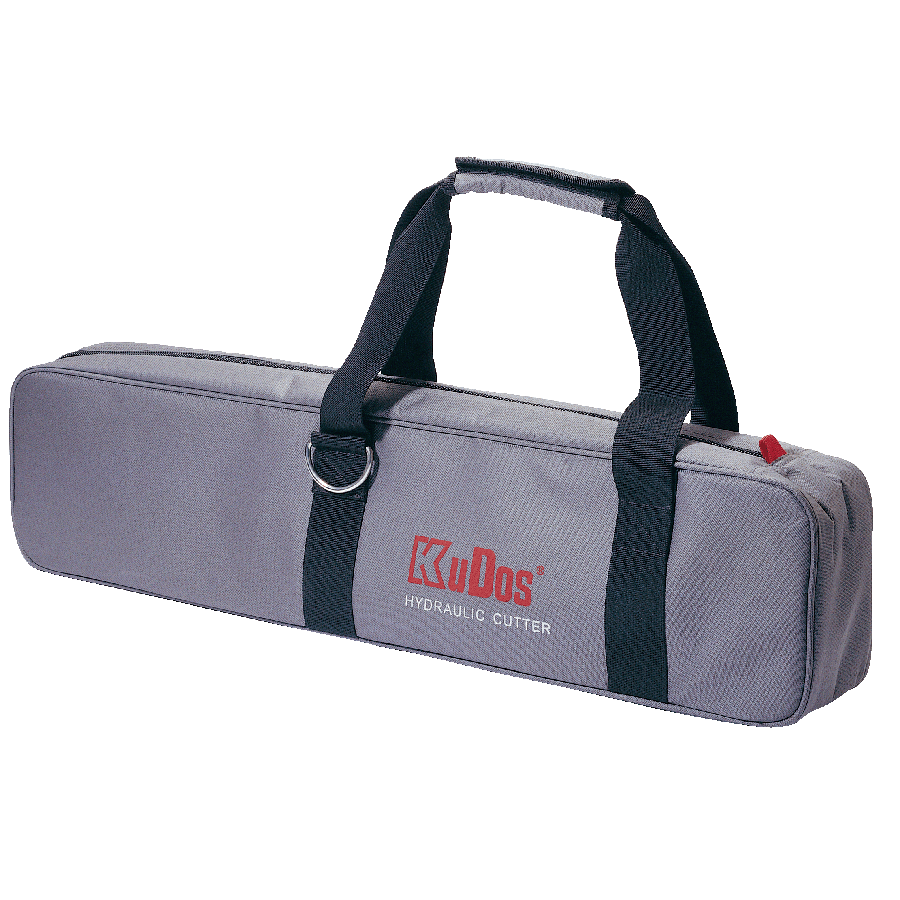

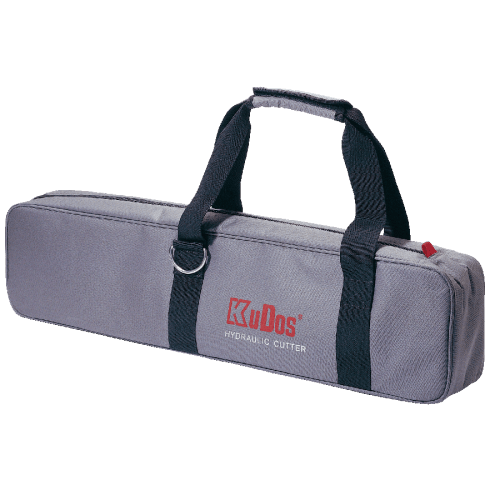

Carrying bag
