 Detail

Length : 683 mm
Weight : 6.7 kgs

■ Specifications :
Max pressure : 700 bar
Oil required : 70 cc
Max output : 9.7 tons / 95 kN

■ Cutting capacity :
Wire rope 6x7 : 40 mm
Wire rope 6x12 : 40 mm
Wire rope 6x19 : 40 mm
Soft copper bar : 32 mm
Soft aluminum bar : 40 mm
Soft steel bar : 20 mm
Cu strands : 40 mm
Al strands : 40 mm
ACSR : 40 mm

※Cutting of piano wire is prohibited.

■ Features :

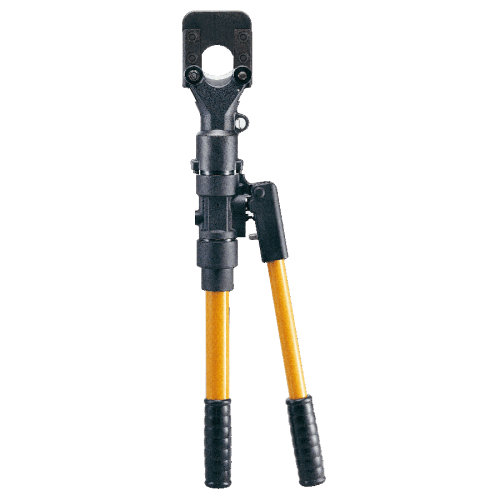

Light weight portable hydraulic cutter features.
Single action cylinder with spring return.
Guillotine type cutting for less jamming than shear type cutting.
No set-up time required.
Blades are easily replaceable.
180˚ swivel and lock pin type head allows easy cutting position.

■ Accessories :

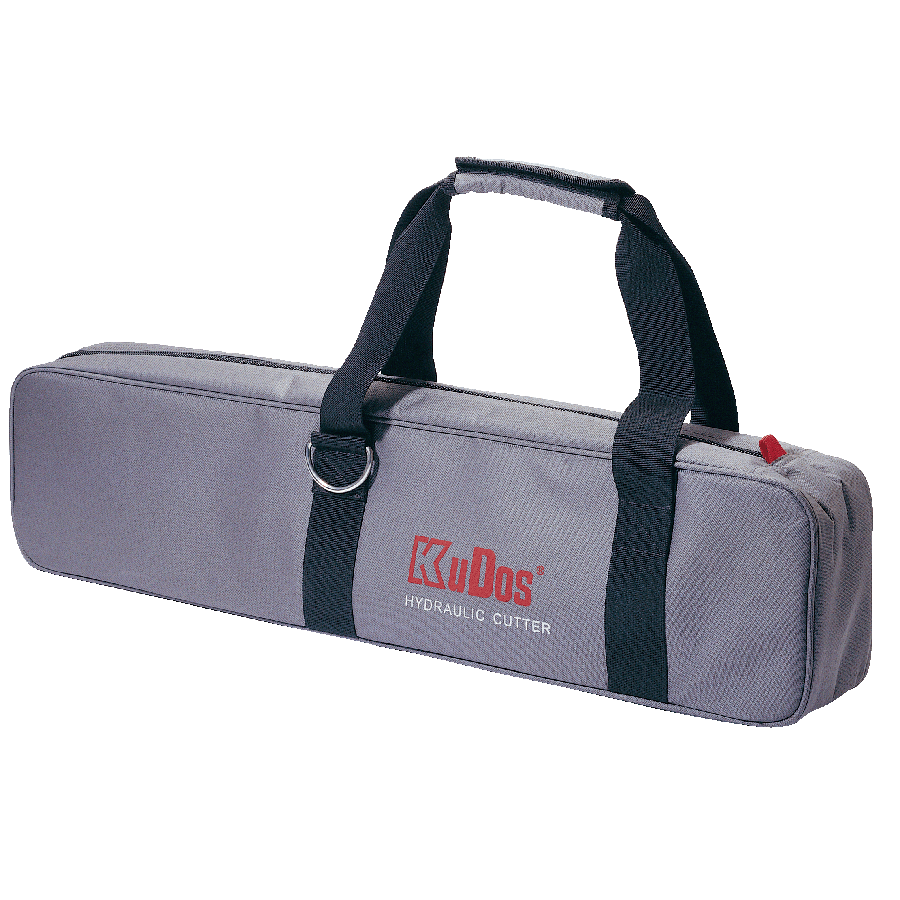

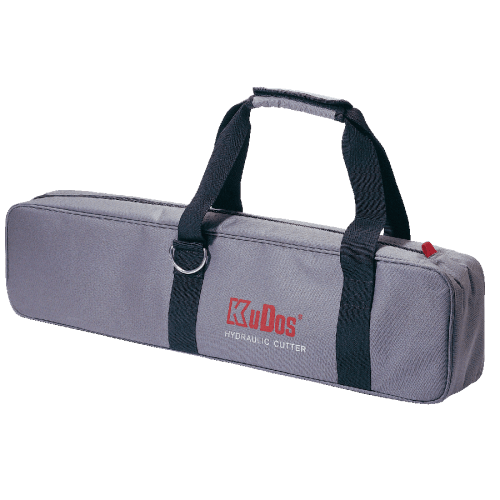

Carrying bag
