 Detail

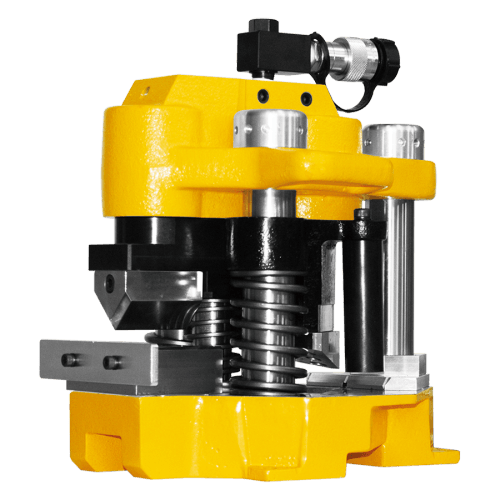

Dimension : 325.4 mm(L) × 282.4 mm(W) × 343.1 mm(H)
Weight : 51.7 kgs

■ Specifications :
Max. Pressure : 700 bar
Acceptive Materials : SS 400 & SUS 304
Max. Processing Dimension : 75 mm × 75 mm × 6 mm

■ Features :
‧ Work with angle steel or stainless steel up to 75 x 75 x 6 mm.
‧ V notching and bending dies are integrated into the machine. Only punching dies need to be changed.
‧ Special changeover shaft permits steel forming to be done from V notching to bending within seconds.

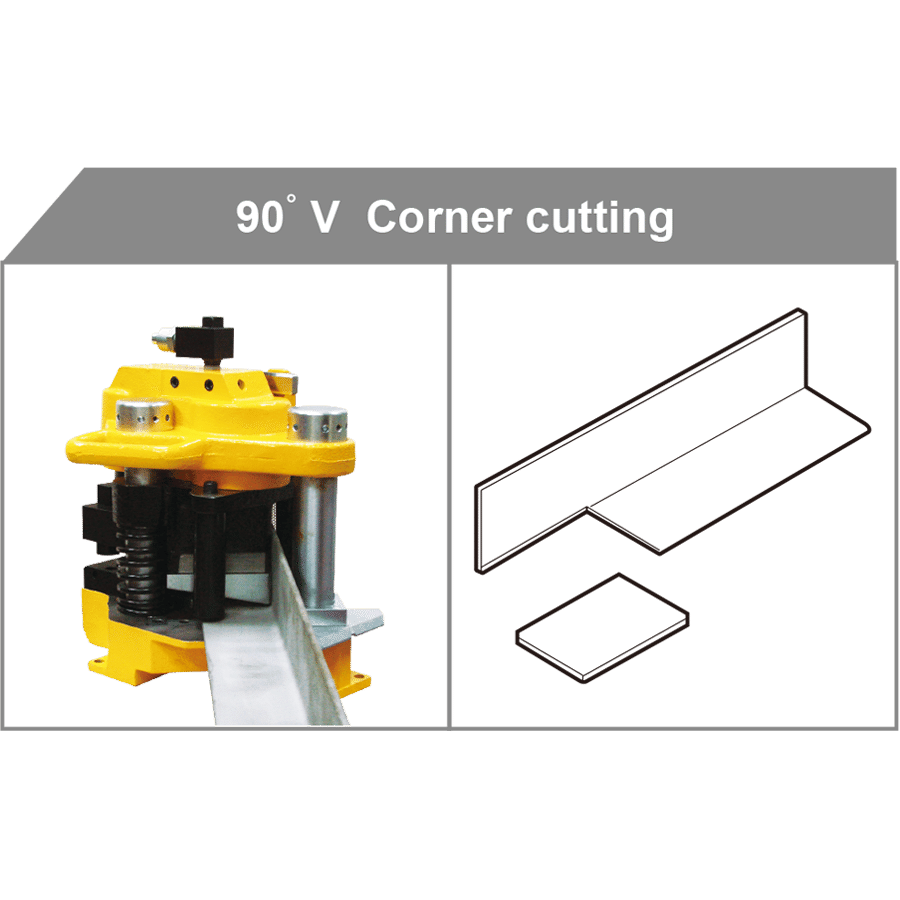

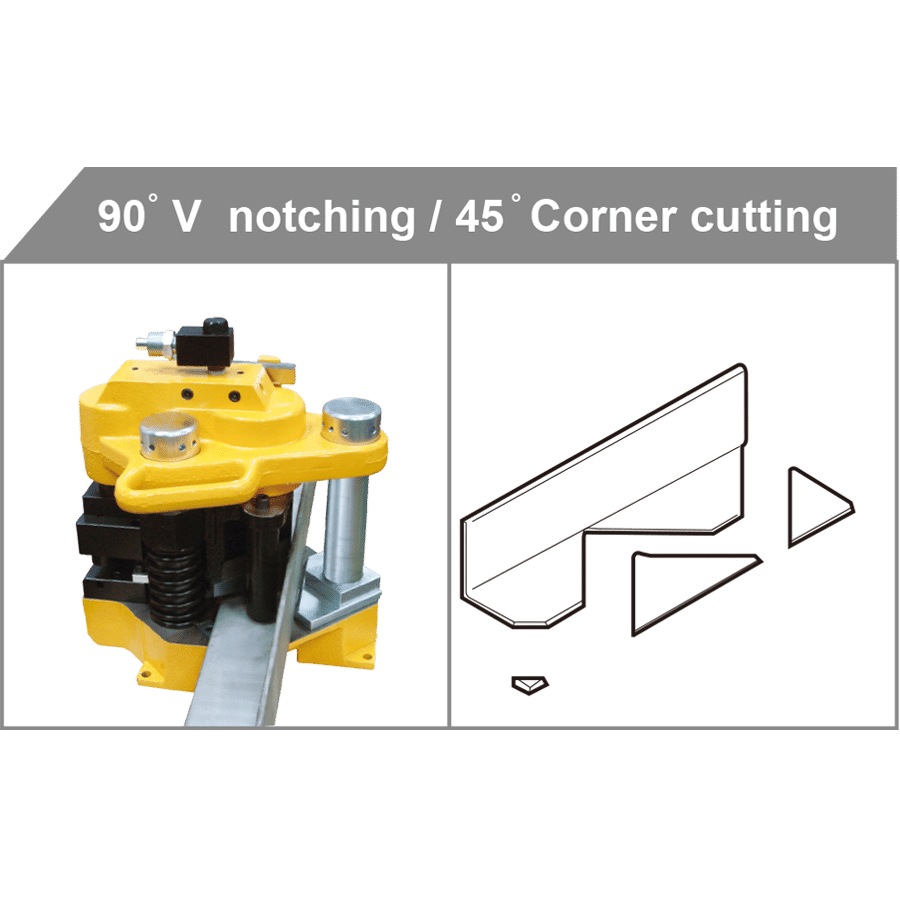

‧ By adjusting clamp base, V notch can be positioned for 3 mm to 6 mm, 90 degree or 45 degree corner cut.
‧ Can be used with any hydraulic pumps having pressure rating of 700 bars.

※ Punching dies are sold separately.

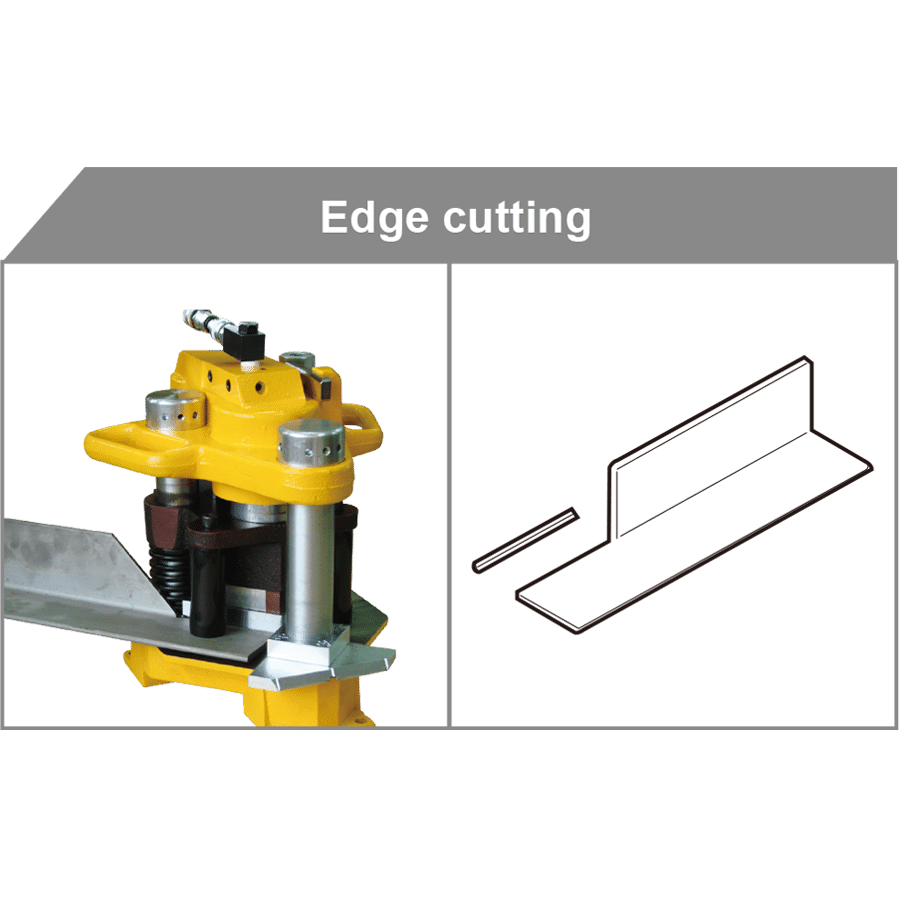

■ Cutting Capacity
‧Max. Output : 25 tons / 245 kN
‧Max. Width : 15 mm
‧Oil Required : 119.4 cc

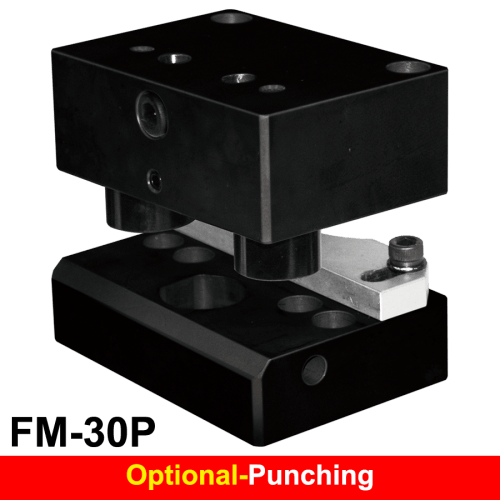

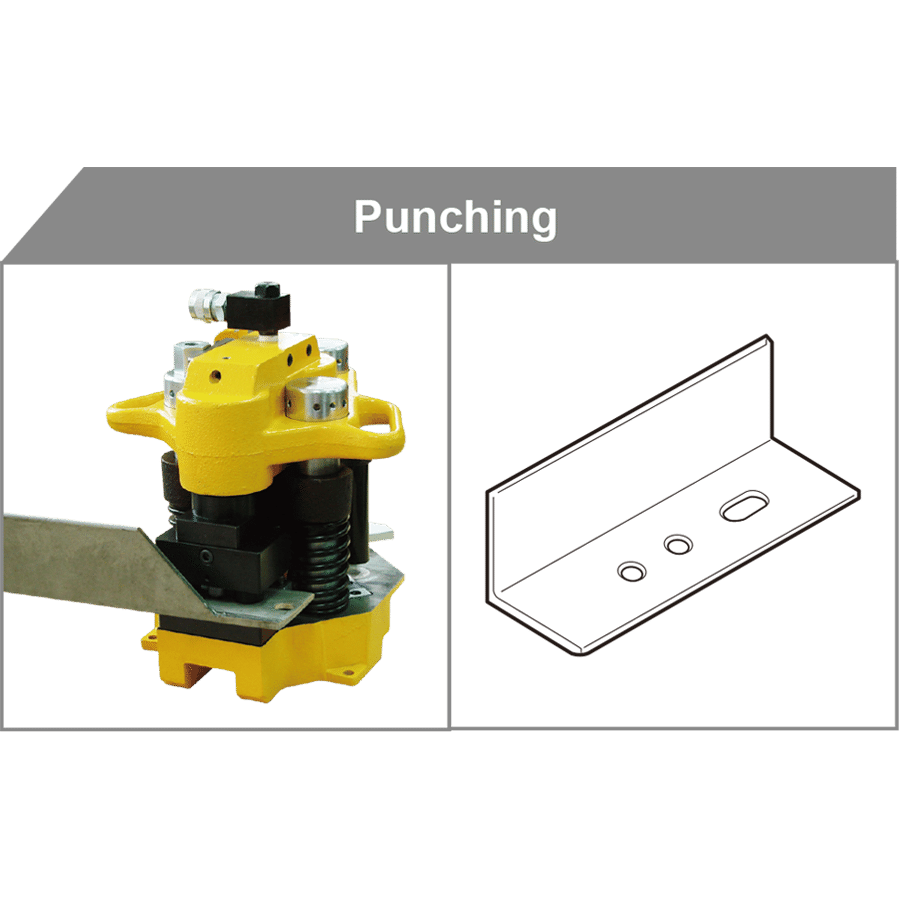

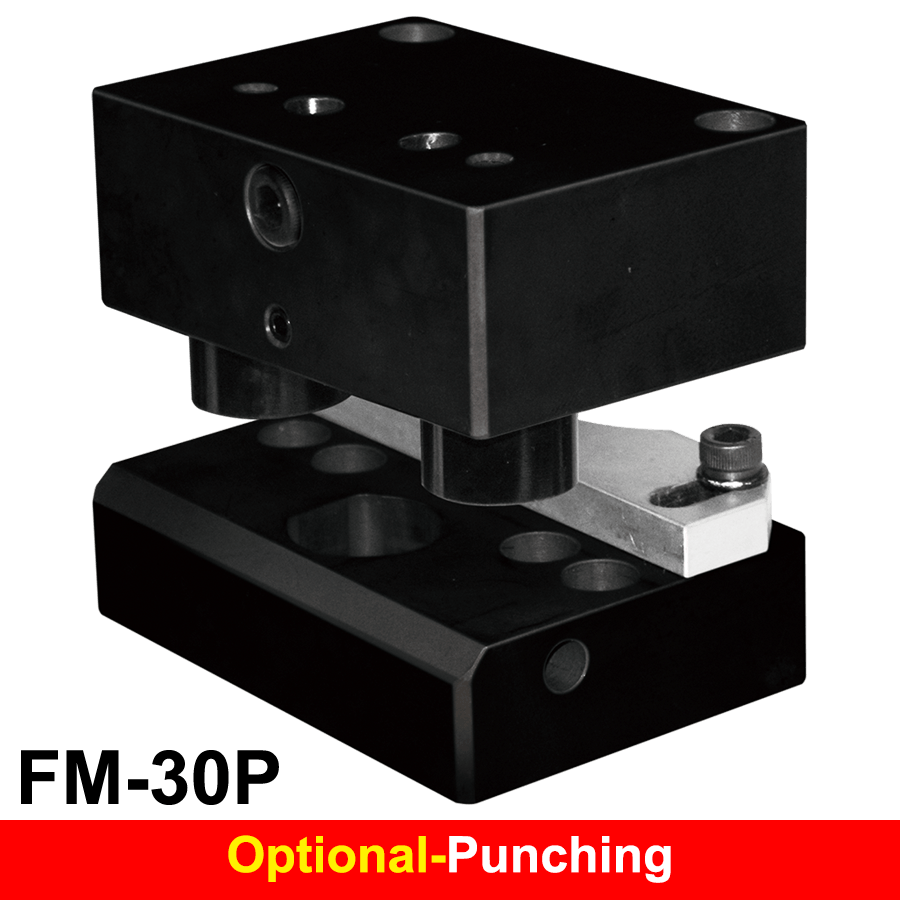

■ Punching Capacity :
‧Max. Output : 17 tons / 167 kN
‧Max. Width : 10.95 mm
‧Oil Required : 46.8 cc

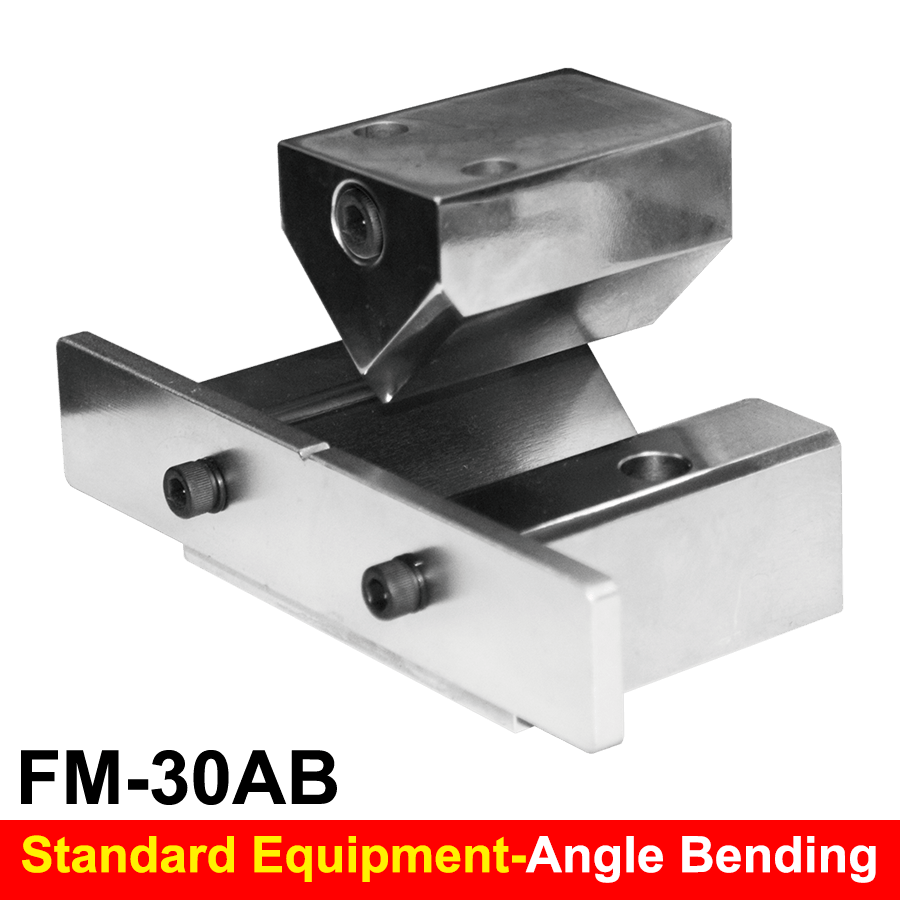

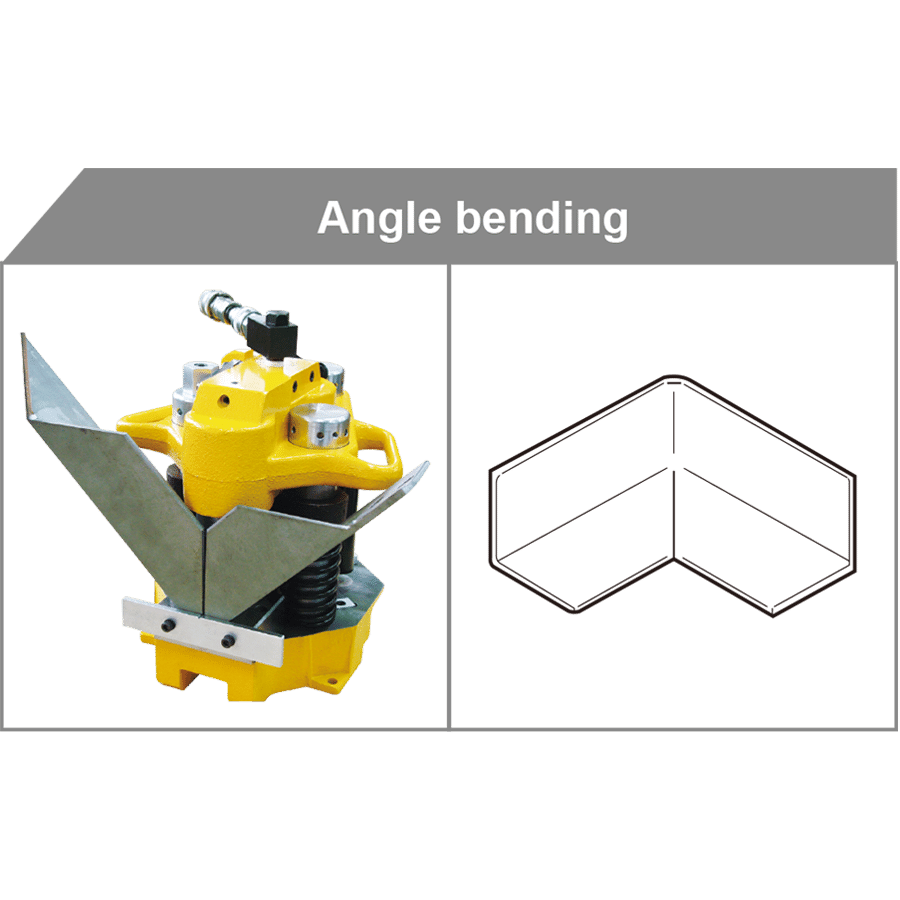

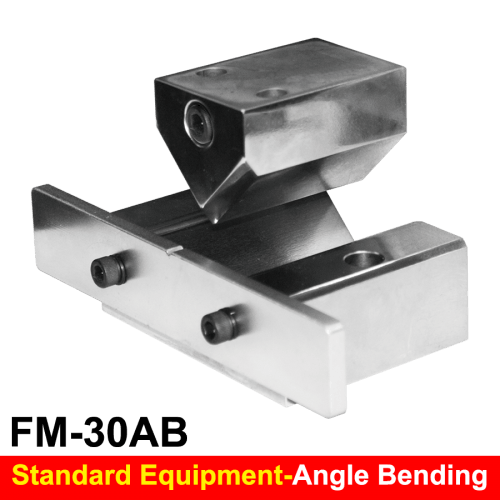

■ Angle Bending Capacity :
‧Max. Output : 7 tons / 69 kN
‧Max. Width : 35 mm
‧Oil Required : 86.2 cc
