Detail
Length : 289 mm
Weight : 14.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 398 cc
Max. Output : 49.25 tons / 438.1 kN
Ram Stroke : 36.7 mm
■ Crimping Capacity :
Max. crimping capacity: 1000 mm²
Customized die sets can be ordered

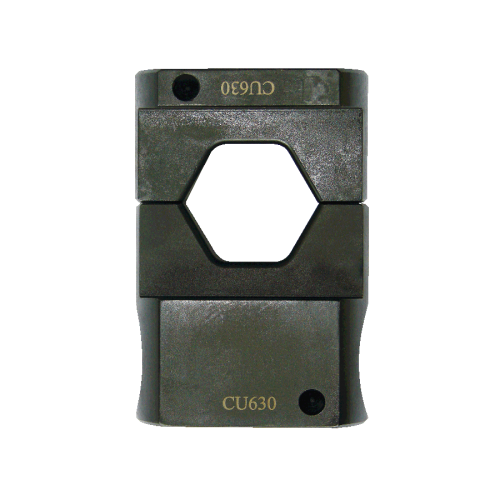

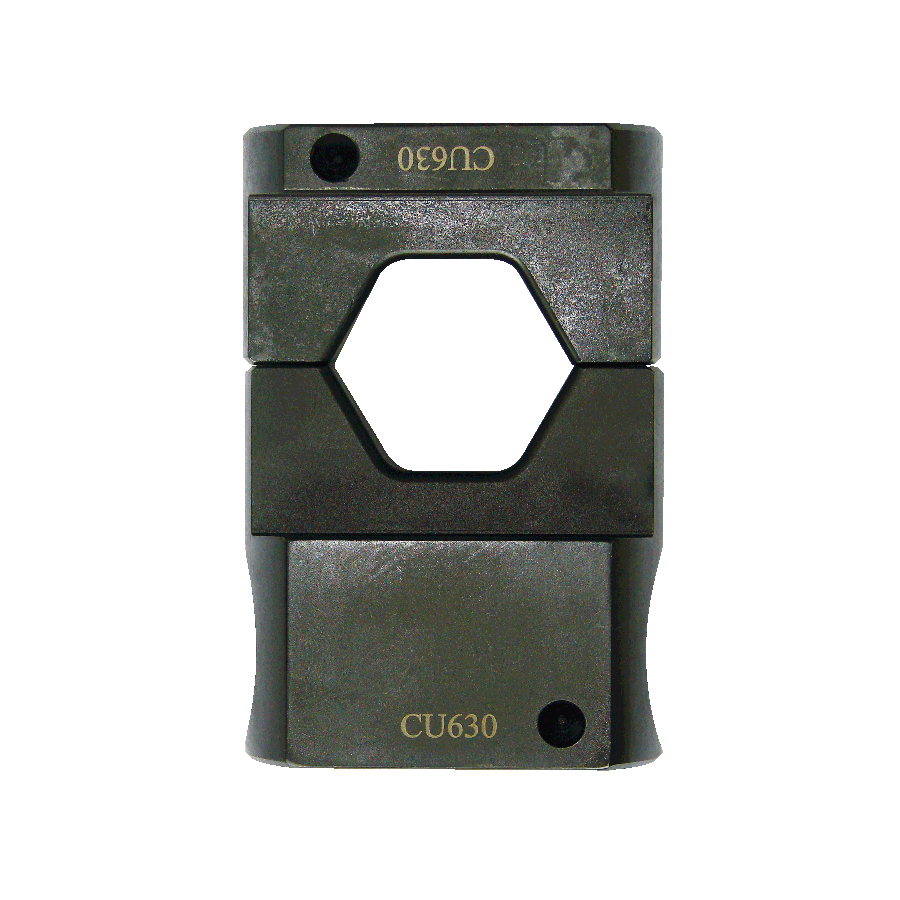

CU 400/500/630/800/1000 sold separately
■ Features :

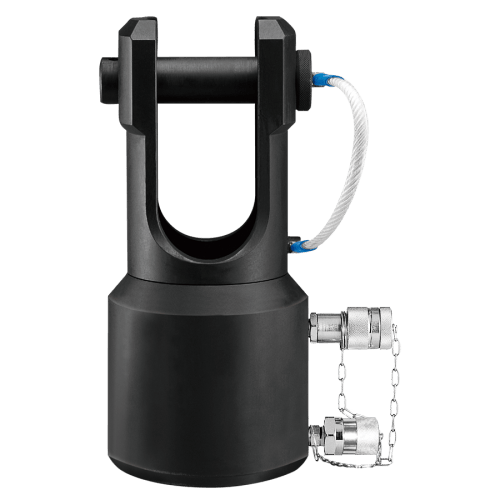

U-type head design is solid and durable
Lock pin design holds die firmly in place.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Double acting compression head.
Fast Retraction.
■ Accessories :

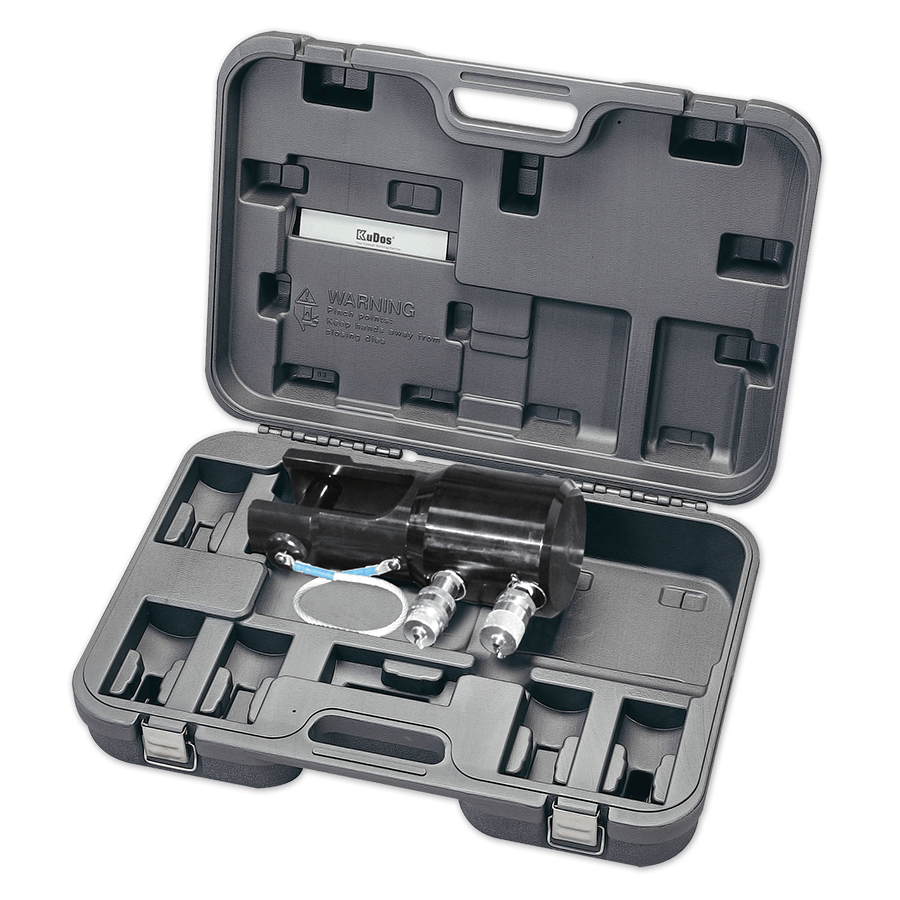

Plastic carrying case

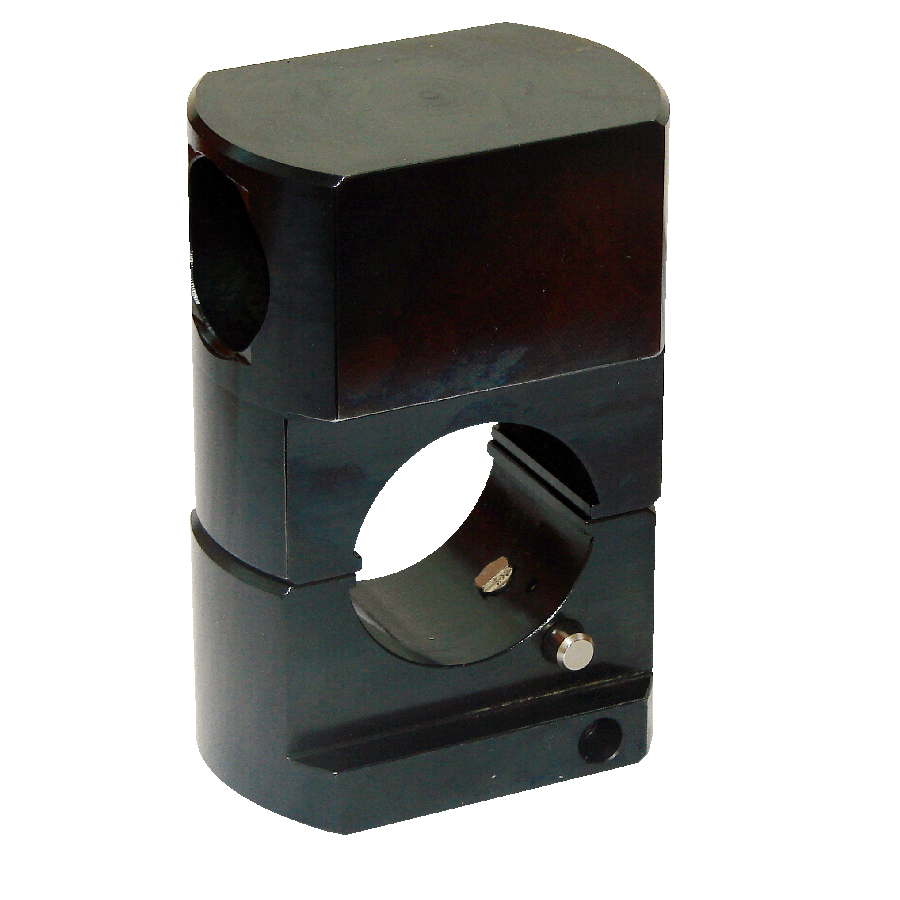

■ Model No . ADP-451000HE
This adapter is designed for hydraulic
compression head HYCP-451000HE /
HYCP-451000D to interchange with 12-ton
(up to 400 mm²)
