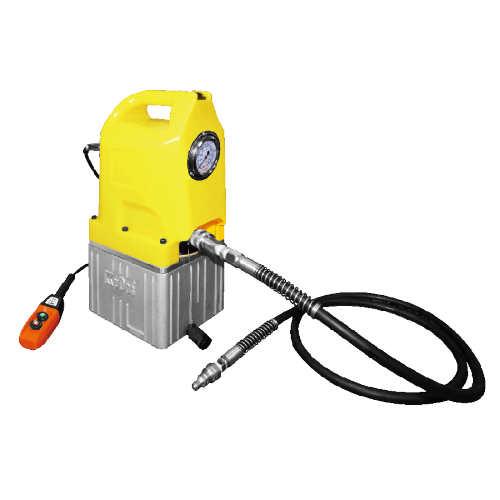

 Detail

Height: 454 mm
Weight: 15 kgs (w/o oil)

Specifications
Max. pressure: 700 bar
Oil required: 3000 cc
2 way, 2 position manual valve
Drive unit: 220V/AC or 110V/AC 50/60Hz
Oil delivery
2.6 L / min at low pressure
0.32 L / min at high pressure

Features

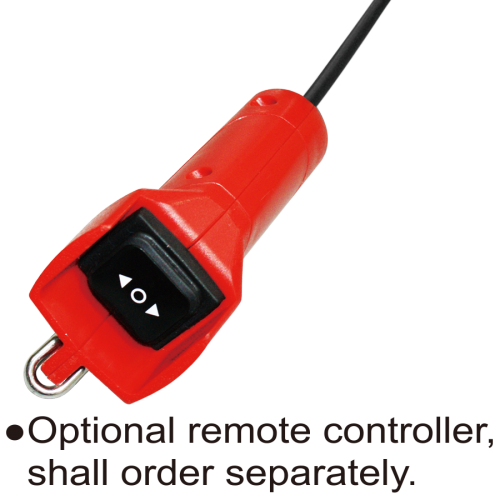

With 5 meter remote control cable provides the user complete control to advance and retract.
Two stage high performance.
Pressure holds at 700 bar, ideal for maintenance and construction
Equipped with large-capacity one piece metal oil tank.

Accessories
Hydraulic hose should be ordered separately.
