 Detail

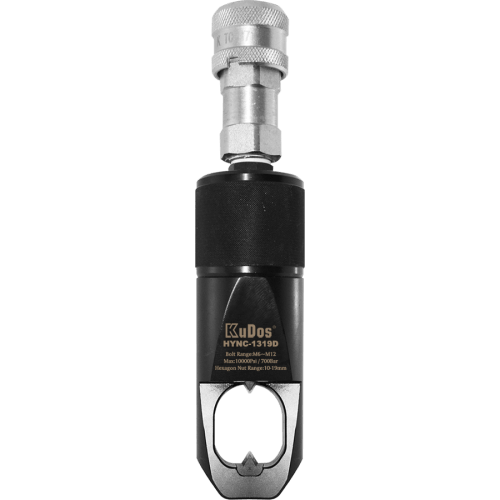

HYNC-series (Double blade)

Features:
Compact design.
Easy to use.
Seven models of nut splitter to choose from.
Unique angled head design for a variety of applications.
Single action cylinder with hydraulic advance with spring-return.
Operated by hydraulic pump with rated oil pressure of 700 bar(10,000psi).

Specifications: Double blade

Model No Bolt Range Hex Nut Range (mm) Capacity (ton) Oil Capacity(cm³) Dimensions(mm) Net Weight(kg) Gross Weight(kg)
Length Width Height
HYNC-1319D M6-M12 10-19 5 15 223 44 67 1.3 2.8
HYNC-1924D M12-M16 19-24 10 20 250 56 74 2.4 3.8
HYNC-2432D M16-M22 24-32 15 60 275 64 78 3.5 5.4
HYNC-3241D M22-M27 32-41 20 80 305 77 90 5.1 7.2
HYNC-4150D M27-M33 41-50 35 155 344 97 111 9.7 13.8
HYNC-5060D M33-M39 50-60 50 240 386 115 131 14.7 18.6
HYNC-6075D M39-M48 60-75 90 492 476 170 186 40.7 42.9

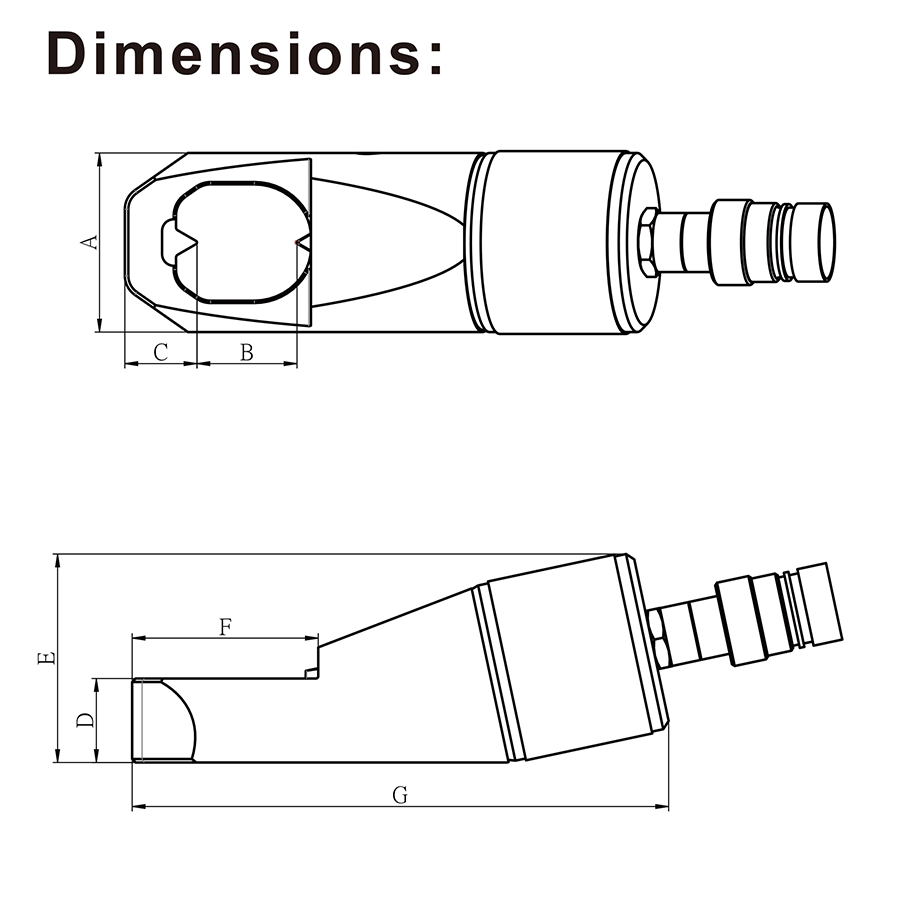

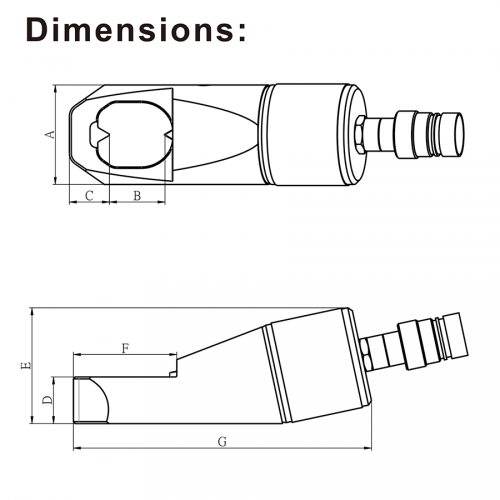

Model No A B C D E F G   Spare Chisels No.
HYNC-1319D 40 21 18 19 53 41 139 HYNC-1319D#7#10 Chisels
HYNC-1924D 54 26 22 25 66 50 168 HYNC-1924D#7#10 Chisels
HYNC-2432D 64 34 26 30 78 65 198 HYNC-2432D#7#10 Chisels
HYNC-3241D 77 43 31 36 90 80 231 HYNC-3241D#7#10 Chisels
HYNC-4150D 94 52 39 45 111 93 271 HYNC-4150D#7#10 Chisels
HYNC-5060D 106 32 43 54 131 107 315 HYNC-5060D#7#10 Chisels
HYNC-6075D 156 77 54 75 186 133 411 HYNC-6075D#7#10 Chisels

Caution: Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.

Accessories
Model No. Hex Wench(mm) Packaging

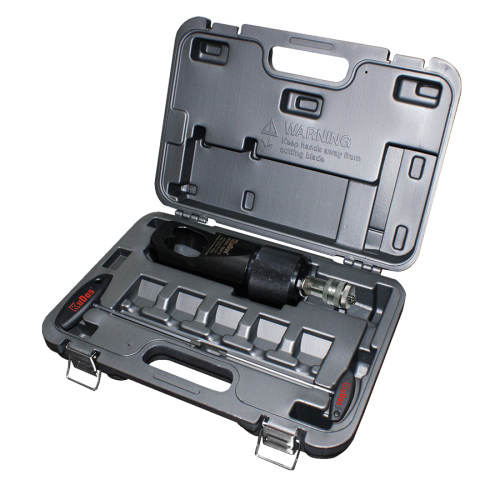

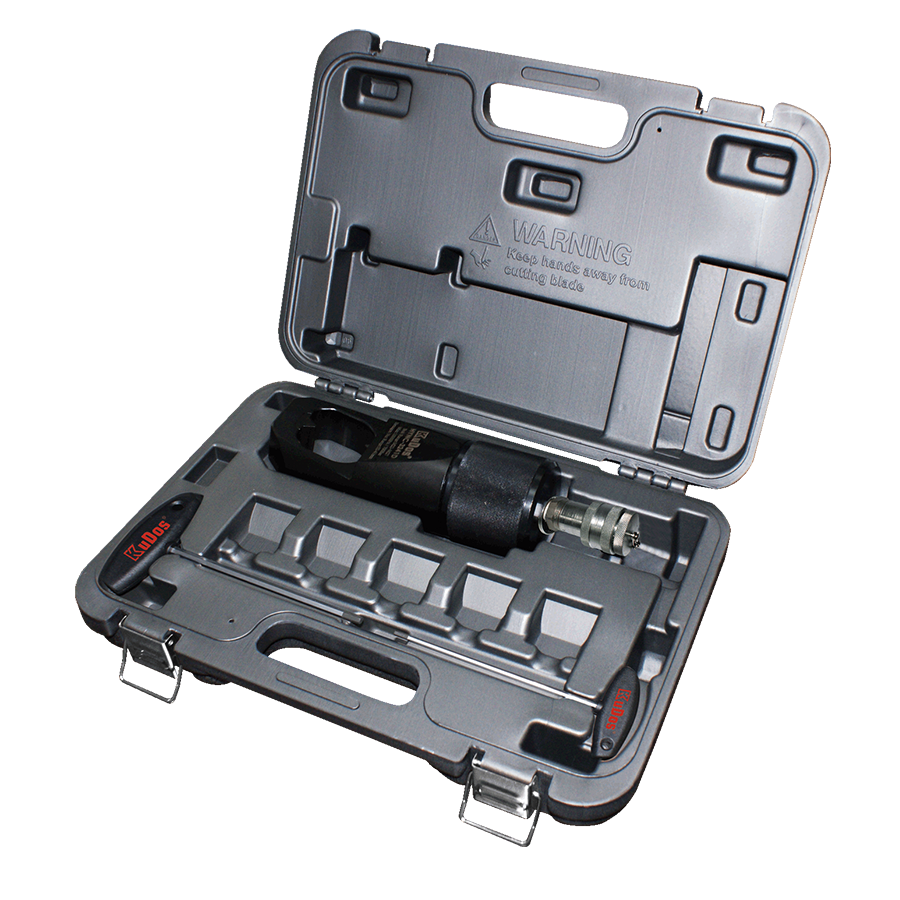

HYNC-1319D 2.5&4 KuDos ® Plastic
Carrying Case
HYNC-1924D 3&5
HYNC-2432D 4&6
HYNC-3241D 4&6
HYNC-4150D 4&6
HYNC-5060D 5&6
HYNC-6075D 5&6 Crate
