 Detail

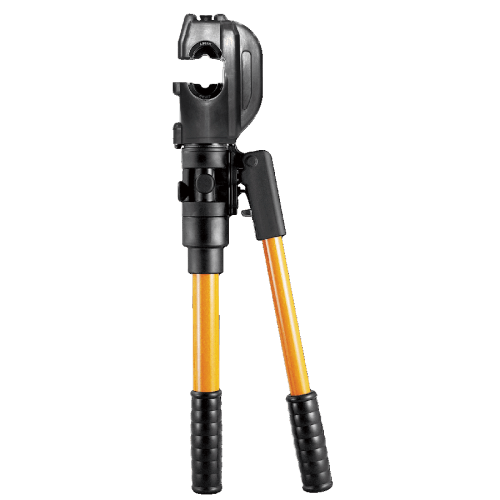

Length : 612 mm
Weight : 6.6 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 53 cc
Max. Output : 11.6 tons / 114 kN
Jaw opening : 32 mm

■ Crimping Capacity :
Max. Compression : 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn 6 tons compressors.

※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)

■ Features :
180° rotating head for convenient operation.
Fiberglass handles are durable and light weight.
External adjustable relief valve.
Pressure relief valve for overload protection.
Automatic low/high-pressure conversion with rapid/slow operating motion.
Two-stage hydraulic system reduces the number of pumps required.

■ Accessories :

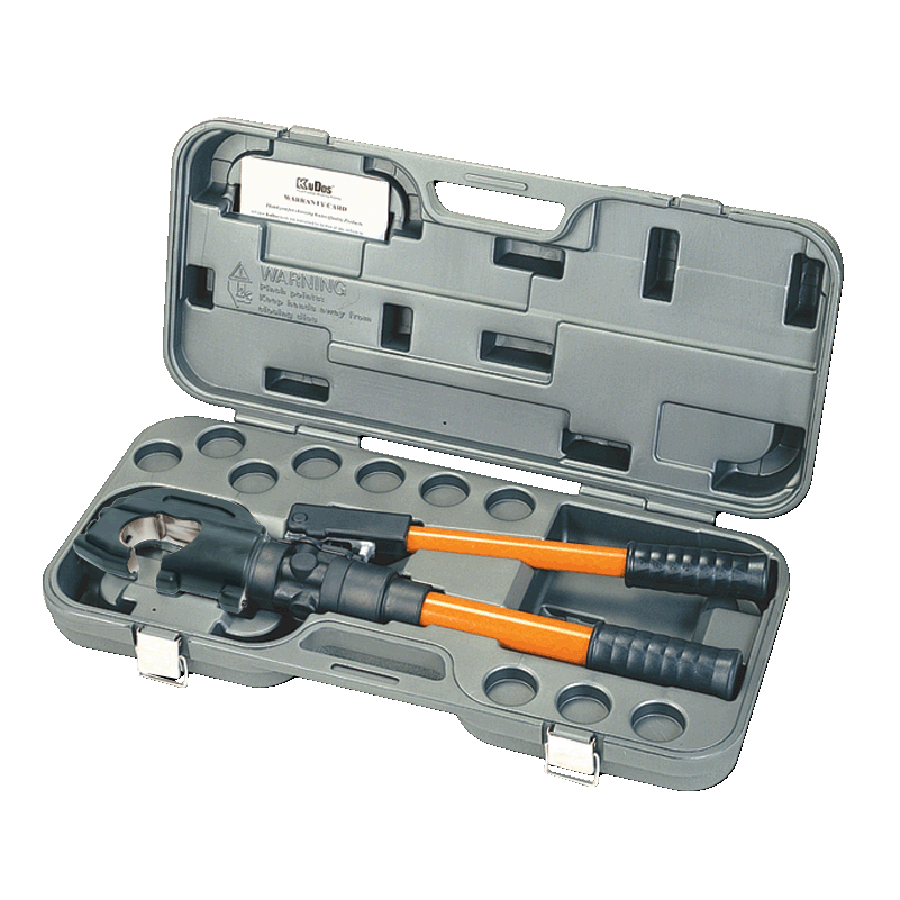

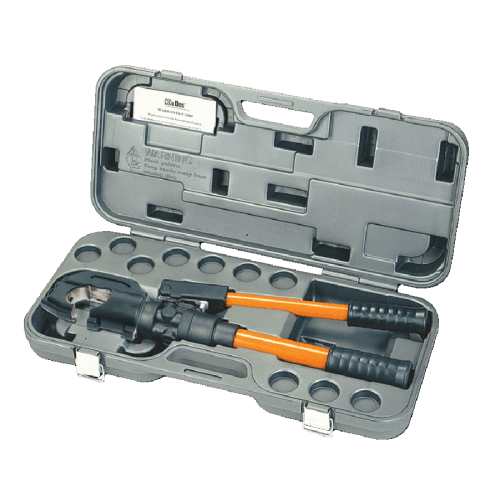

Plastic carrying case
