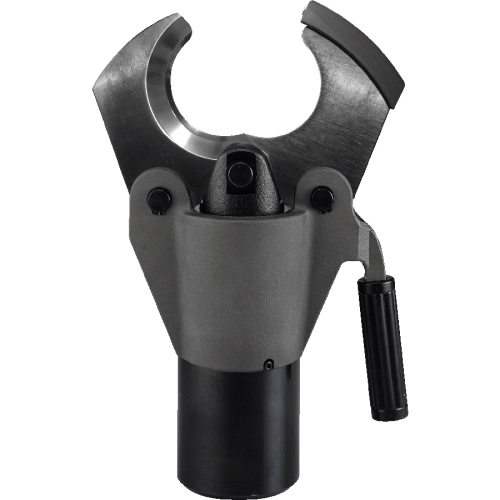

Detail
Length : 373 mm
Weight : 8.7 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 215 cc
Max output : 22.67 tons / 201.7 kN
■ Cutting capacity :
Cu cable : 75 mm
Al cable : 75 mm
Underground cable : max. up to 240 mm² x 4cores approx. 65 mm outer diameter but do not cutting with armored cable.
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation.
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
■ Accessories :

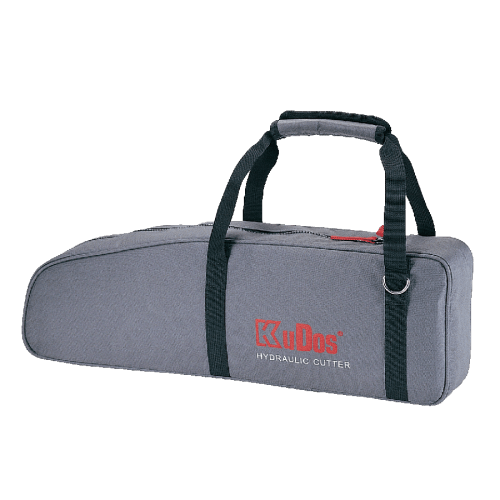

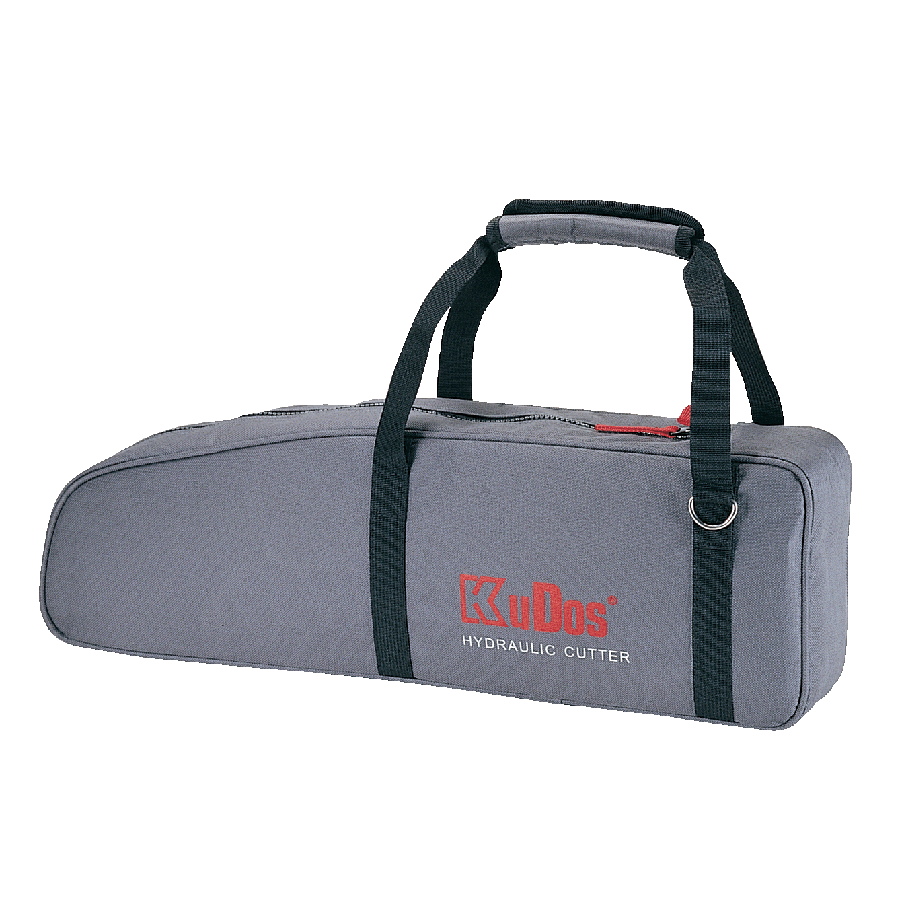

Carrying bag
